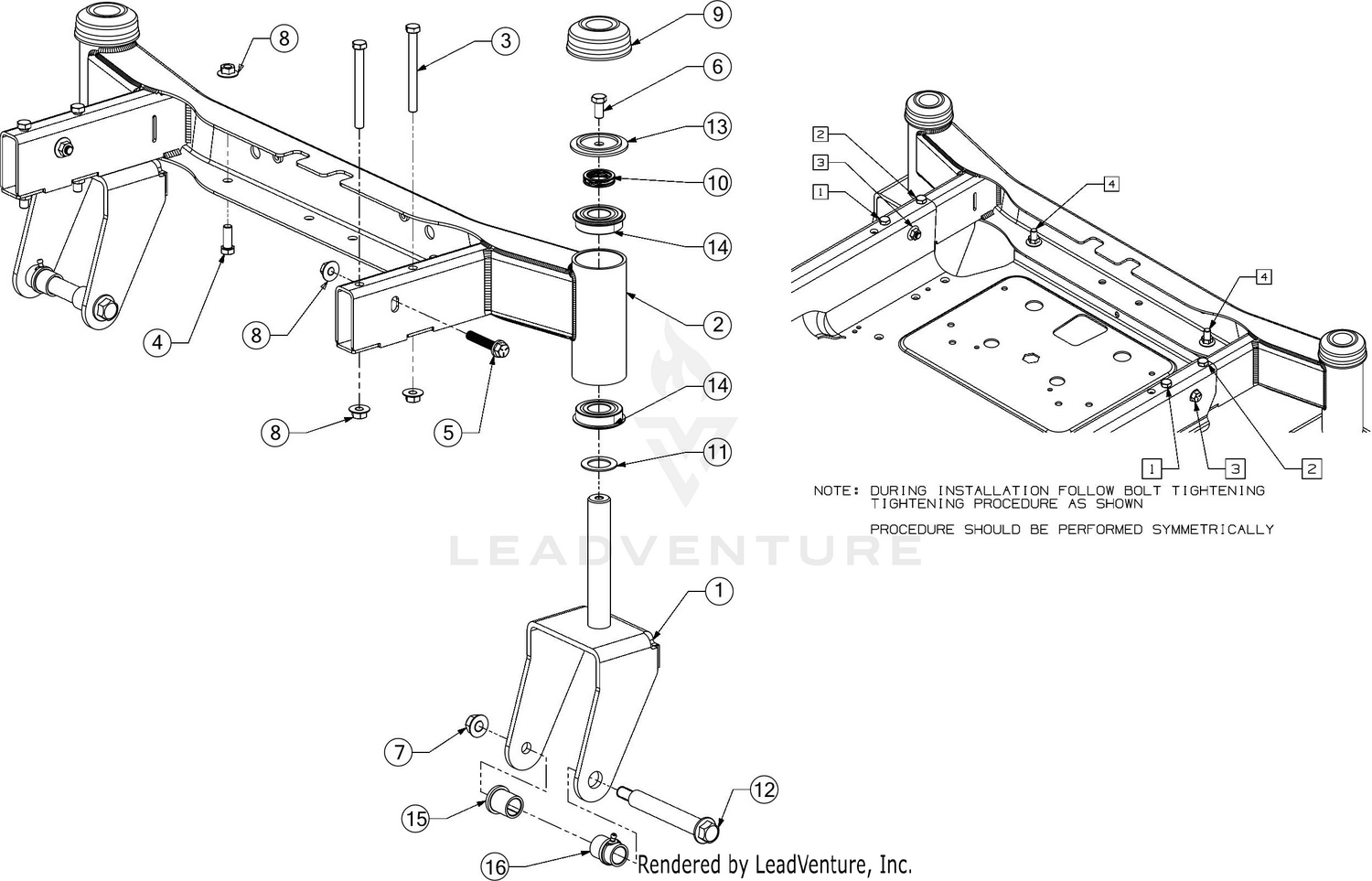

| Ref | Part Number | Description |
|---|
| 1 |
603-05057D-0638 |
CASTER WHEEL YOKE (MTD RED) This part replaces 603-05057C-0638. Price: $92.67 |
| 2 |
603-05134-0638 |
FRONT AXLE (MTD RED) Price: $383.61 |
| 3 |
710-04576 |
SCREW 3/8-16 x 3.75 GR5 Price: $4.27 |
| 4 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 5 |
710-06093 |
SCREW 3/8-16 x 2.00 GR5 Price: $4.29 |
| 6 |
710-3119 |
SCREW 3/8-16 x .75 GR 5 Price: $5.91 |
| 7 |
712-04150 |
NUT Price: $3.74 |
| 8 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 9 |
731-09347 |
CASTER AXLE CAP Price: $5.23 |
| 10 |
736-05033A |
WAVE WASHER Price: $4.19 |
| 11 |
736-0745 |
WASHER 1.010X1.560X.060 Price: $11.28 |
| 12 |
738-04182B |
SHOULDER BOLT .750X4.75X1/2-13 Price: $22.91 |
| 13 |
738-05091 |
SHOULDER SPACER Price: $7.44 |
| 14 |
941-05022A |
BALL BEARING Price: $17.83 |
| 15 |
741-0516B |
FLANGE BEARING Price: $5.64 |
