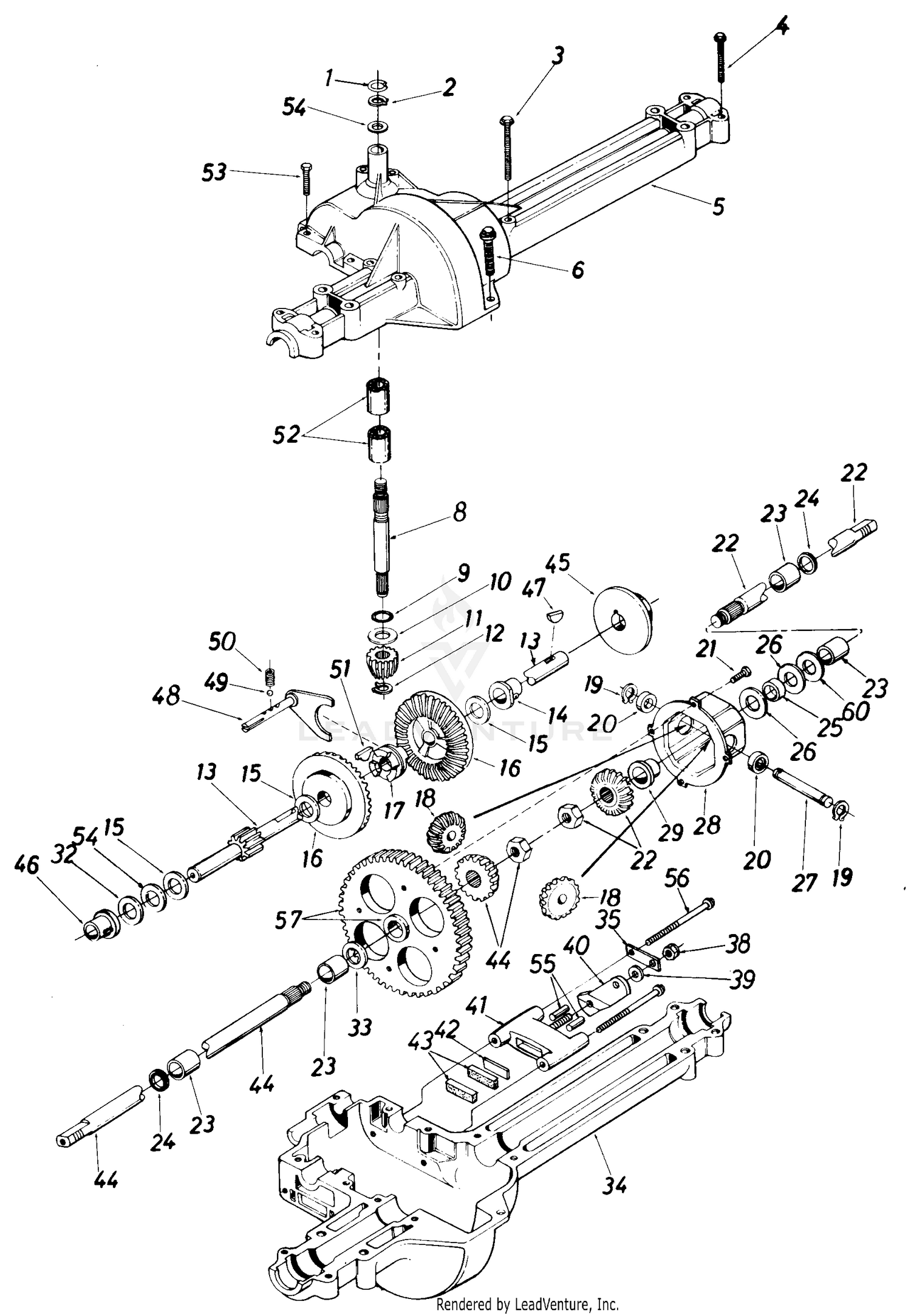

| Ref | Part Number | Description |
|---|
| 1 |
732-0614 |
Wire Ring Price: $5.37 |
| 2 |
716-0108 |
Retaining-Ring Price: $4.53 |
| 3 |
710-1026 |
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75 Lg. This part replaces 710-0854. Price: $5.94 |
| 4 |
710-0809 |
Hex Tap Scr. 1/4-20 x 1.25" Lg. Price: $6.37 |
| 5 |
717-0764A |
UPPER HOUSING Not Available Price: |
| 6 |
710-0642 |
Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 8 |
711-0861 |
INPUT SHAFT Not Available Price: |
| 9 |
721-0178 |
SQUARE SEAL 5/8ID Not Available Price: |
| 10 |
936-0335 |
THRUST WASHER This part replaces 736-0335. Price: $5.94 |
| 11 |
917-0633 |
INPUT PINION 14T Not Available This part replaces 717-0633. Price: |
| 12 |
916-0171 |
Retainer Ring This part replaces 716-0171. Price: $5.04 |
| 13 |
717-0768 |
DRIVE SHAFT (LH) Not Available Price: |
| 14 |
941-0336 |
Flange Brg. 5/8" I.D. x 3/4" Lg. This part replaces 741-0336. Price: $10.28 |
| 15 |
936-0335 |
THRUST WASHER This part replaces 736-0335. Price: $5.94 |
| 16 |
717-0757 |
BEVEL GEAR 42 T Not Available Price: |
| 17 |
917-0667 |
CLUTCH COLLAR Not Available This part replaces 717-0667. Price: |
| 18 |
717-1020 |
MITER GEAR Not Available Price: |
| 19 |
916-0184 |
Snap Ring This part replaces 716-0184. Price: $4.25 |
| 20 |
941-0589 |
Thrust Bearing This part replaces 741-0589. Price: $5.45 |
| 21 |
710-0862A |
Pan Head Scr. 1/4-20 x .50" Lg. w/Patch Price: $4.05 |
| 22 |
717-0539 |
AXLE ASSEMBLY (RH) Not Available Price: |
| 23 |
741-05060 |
SLEEVE BEARING .75X1.00X1.00 This part replaces 741-0340. Price: $7.69 |
| 24 |
721-0179 |
Oil Seal 3/4" I.D. Price: $7.48 |
| 25 |
750-0827 |
SPACER-AXLE Not Available Price: |
| 26 |
736-0445 |
Fl-Wash. 760" I.D. x 1.5" O.D. Price: $3.95 |
| 27 |
711-0918 |
Cross Shaft Price: $13.32 |
| 28 |
918-04089 |
DIFF HOUSING ASSEMBLY W/BEARING Not Available This part replaces 717-1252. Price: |
| 29 |
N/A |
Part of Ref. 28 |
| 32 |
N/A |
Washer |
| 33 |
736-0445 |
Fl-Wash. 760" I.D. x 1.5" O.D. Price: $3.95 |
| 34 |
719-0303 |
TRANS HOUS Not Available Price: |
| 35 |
718-0150 |
Anti-Rotation Brkt. Price: $4.19 |
| 38 |
912-0273 |
NUT This part replaces 712-0273. Price: $4.02 |
| 39 |
736-0371 |
Fl-Wash. .844" I.D. x .875" O.D. Price: $3.94 |
| 40 |
717-0700 |
Actuating Arm Price: $12.78 |
| 41 |
961-0198B |
BRAKE YOKE This part replaces 761-0198. Price: $22.64 |
| 42 |
917-0682 |
PUCK PLATE This part replaces 717-0682. Price: $8.68 |
| 43 |
917-0678 |
BRAKE PUCK This part replaces 717-0678. Price: $6.87 |
| 44 |
717-0538 |
AXLE ASSEMBLY (LH) Not Available Price: |
| 45 |
717-0677 |
BRAKE DISC Not Available Price: |
| 46 |
941-0337 |
Flange Bearing 5/8" I.D. x 15/16" Lg. This part replaces 741-0337. Price: $9.58 |
| 47 |
914-0161 |
KEY 3/16 x 5/8 H This part replaces 714-0161. Price: $3.82 |
| 48 |
917-0754 |
SHIFT FORK ASSEMBLY Not Available This part replaces 717-0754. Price: |
| 49 |
741-0862 |
DETENT BALL .250 Price: $3.90 |
| 50 |
932-05125 |
DETENT SHAFT SPRING This part replaces 732-0863. Price: $3.66 |
| 51 |
914-0169 |
KEY-HI PRO Not Available This part replaces 714-0169. Price: |
| 52 |
941-0335 |
NEEDLE BEARING This part replaces 741-0335. Price: $16.86 |
| 53 |
710-0788 |
Screw, Hex This part replaces 710-0855. Price: $6.20 |
| 54 |
936-0349 |
FLAT WASHER This part replaces 7360349. Price: $3.86 |
| 55 |
741-0343 |
Actuating Pin 5/16" Dia. Price: $8.93 |
| 56 |
710-1206 |
Hex Wash Hd. Self-Tap Scr. 1/4-20 Thd. Price: $6.20 |
| 57 |
717-0767 |
DIFFERENTIAL GEAR Not Available Price: |
| 60 |
N/A |
Washer |
