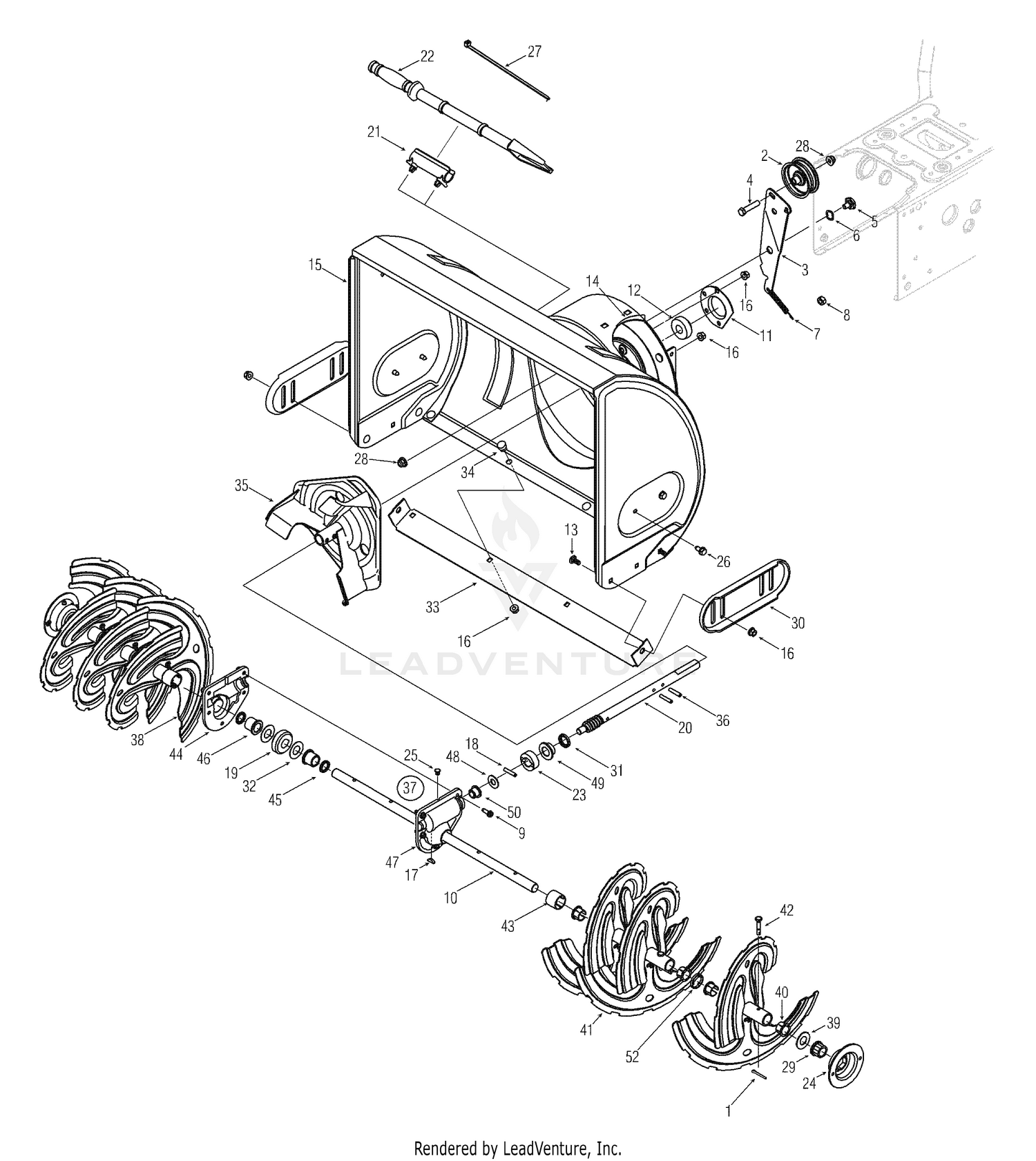

| Ref | Part Number | Description |
|---|
| 1 |
714-0507 |
Cotter Pin Price: $3.93 |
| 2 |
756-0178 |
Flat Idler Price: $17.64 |
| 3 |
984-0064-0637 |
Auger Idler Brkt. This part replaces 784-5632B. Price: $28.67 |
| 4 |
710-0347 |
Hex Cap Screw 3/8-16 x 1.75 Price: $4.39 |
| 5 |
738-0281 |
Shoulder Screw Price: $9.16 |
| 6 |
736-0174 |
Wave Washer Price: $5.94 |
| 7 |
932-0611 |
Extension Spring, .38 OD x 3.6 This part replaces 732-0611. Price: $6.92 |
| 8 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 712-3068. Price: $5.99 |
| 9 |
710-0642 |
Self Tapping Screw, 1/4-20 x.75 Price: $4.05 |
| 10 |
711-04282A |
Auger Axle, 30" This part replaces 711-04282. Price: $98.99 |
| 11 |
05931A |
Housing Price: $9.73 |
| 12 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 This part replaces 741-0309. Price: $69.59 |
| 13 |
710-0451 |
Carriage Bolt, 5/16-18 x.75 Price: $3.53 |
| 14 |
705-5226 |
Chute Reinforcement Price: $8.69 |
| 16 |
712-04063 |
Flange Lock Nut 5/16-18 Price: $3.56 |
| 17 |
914-0161 |
KEY 3/16 x 5/8 H This part replaces 714-0161. Price: $3.82 |
| 18 |
715-04021 |
Dowel Pin Price: $3.68 |
| 19 |
917-04861 |
WORM GEAR 20T This part replaces 717-0528A. Price: $37.82 |
| 20 |
717P0526 |
IMPELLER SHAFT This part replaces 717-0526. Price: $95.41 |
| 21 |
731-11421 |
Cleanout Tool Mount This part replaces 731-2635. Price: $9.83 |
| 22 |
931-2643 |
Chute Cleanout Tool This part replaces 731-2643. Price: $16.68 |
| 23 |
718-04071 |
Thrust Collar Price: $6.73 |
| 24 |
790-00138A-0637 |
BEARING HOUSING 1" HEX Not Available This part replaces 790-00138. Price: |
| 25 |
721-0325 |
Grease Plug Price: $3.82 |
| 26 |
710-0726 |
Hex Screw 5/16-12 Price: $3.82 |
| 27 |
725-0157 |
Cable Tie Price: $3.46 |
| 28 |
712-04065 |
Flange Lock Nut 3/8-16 Price: $3.68 |
| 29 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 30 |
790-00091 |
Skid Shoe Price: $25.06 |
| 31 |
721-0327 |
Grease Seal Price: $6.10 |
| 32 |
736-0351 |
Flat Washer,.76 x 1.5 x.030 Price: $3.93 |
| 33 |
790-00119 |
Shave Plate, 30" Price: $30.96 |
| 34 |
710-0451 |
Carriage Bolt 5/16-18 x 1.00 Price: $3.53 |
| 36 |
715-0114 |
Pin Price: $8.68 |
| 37 |
918-04207 |
GEARBOX ASSEMBLY 30" Not Available This part replaces 618-04234. Price: |
| 38 |
684-04108A |
AUGER SPIRAL (RH) This part replaces 684-04108. Price: $67.28 |
| 39 |
736-0188 |
Flat Washer Price: $3.75 |
| 40 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 41 |
684-04107A |
AUGER SPIRAL (LH) This part replaces 684-04107. Price: $63.62 |
| 42 |
738-04124A |
Shear Pin, .25 x 1.50 This part replaces 738-04124. Price: $1.56 |
| 43 |
731-04870 |
Spacer, 1.25OD x.75ID x 1.00 Lg. Price: $4.06 |
| 45 |
721-0179 |
Oil Seal Price: $7.48 |
| 46 |
741-0661B |
FLANGE BEARING This part replaces 741-0661A. Price: $9.78 |
| 48 |
736-3084 |
Flat Washer,.51 x 1.12 x.06 Price: $4.39 |
| 49 |
741-0662 |
Flange Bearing,.75 x 1.0 x.59 Price: $9.52 |
| 50 |
741-0663 |
Flange Bearing,.503 ID x.75 OD Price: $8.86 |
