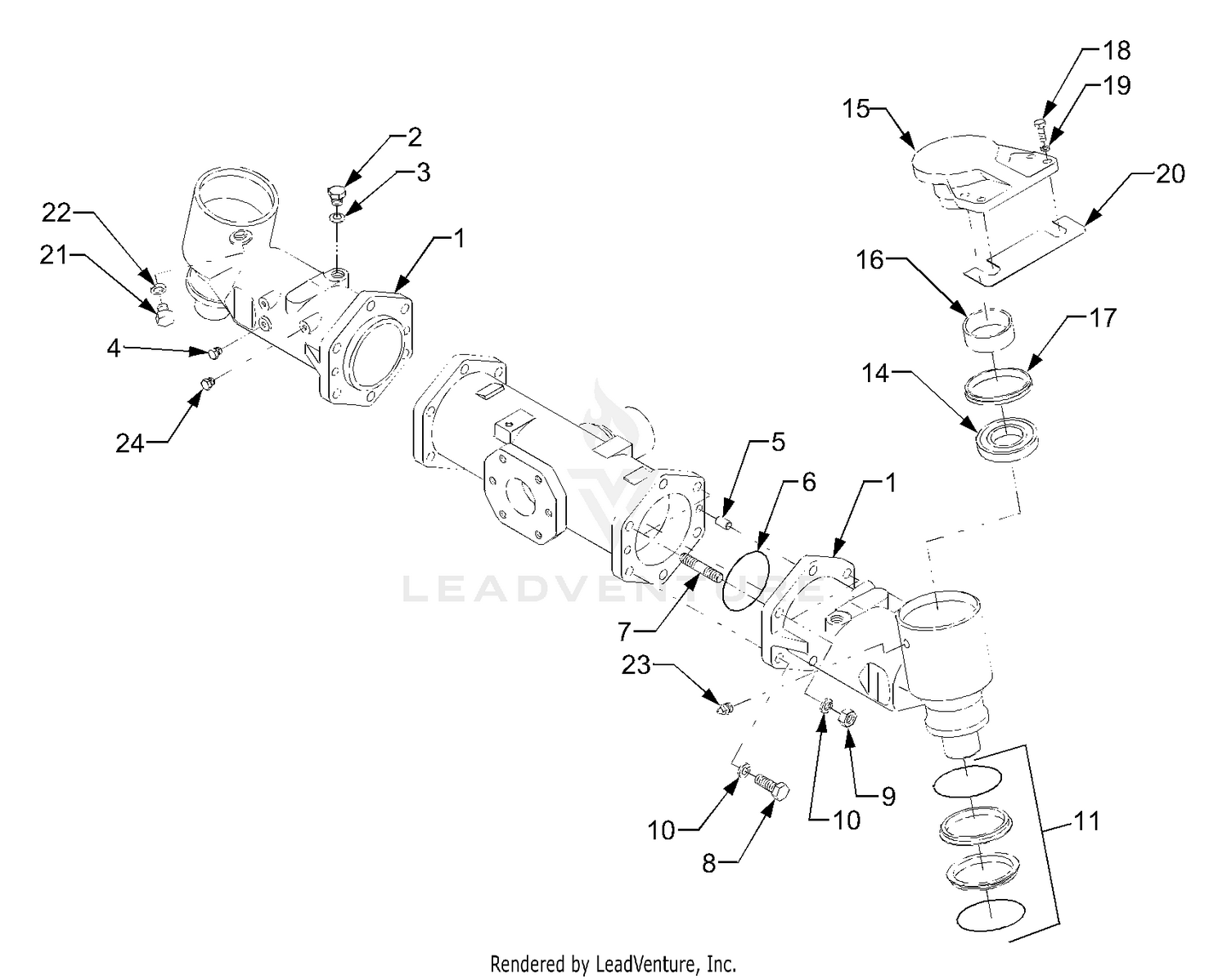

Bevel Gear Case Group
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 70-4480 | SHAFT Price: $113.68 |
| 1 | DD-T2630-43314 | CASE-BEVEL GEAR Not Available Price: |
| 2 | 70-4470 | LEVER Price: $116.24 |
| 2 | DD-34150-14261 | DRAIN PLUG Not Available Price: |
| 3 | 70-4490 | CUP Price: $18.12 |
| 3 | DD-04717-02150 | SEAL WASHER Not Available Price: |
| 4 | 70-4510 | SPRING Price: $8.53 |
| 4 | DD-T4680-14211 | OIL LEVEL GAUGE Not Available Price: |
| 5 | 70-4520 | SPRING Price: $8.25 |
| 5 | DD-37805-43501 | DOWEL PIN Not Available Price: |
| 6 | 70-4500 | SPRING Price: $4.31 |
| 6 | DD-04811-51050 | O-RING Not Available Price: |
| 7 | 70-4460 | PLATE Price: $11.24 |
| 7 | DD-01517-51438 | STUD Not Available Price: |
| 8 | 70-6510 | O-RING Price: $3.46 |
| 8 | DD-01173-51445 | HEX BOLT Not Available Price: |
| 9 | 70-4230 | BUSHING Price: $22.98 |
| 9 | DD-02176-50140 | HEX NUT Not Available Price: |
| 10 | 70-4580 | CAP Price: $3.29 |
| 10 | DD-04512-50140 | LOCK WASHER Not Available Price: |
| 11 | 70-4360 | PLUG Price: $9.65 |
| 11 | DD-T4818-43451 | SEAL ASSEMBLY-FLOATING Not Available Price: |
| 12 | 70-4350 | SHAFT Price: $11.57 |
| 13 | 70-4400 | COVER Price: $264.67 |
| 14 | 70-6740 | BOLT Price: $3.97 |
| 14 | DD-08121-06013 | BALL BEARING Not Available Price: |
| 15 | 99-2251 | CAPSULE Price: $5.91 |
| 15 | DD-T2620-43341 | SUPPORT-AXLE CASE Not Available Price: |
| 16 | 70-3890 | WASHER Price: $4.45 |
| 16 | DD-T2630-43461 | RING-INNER Not Available Price: |
| 17 | 70-4310 | NUT Price: $3.39 |
| 17 | DD-T2630-43471 | OIL SEAL Not Available Price: |
| 18 | 70-4440 | NUT Price: $14.24 |
| 18 | DD-01173-51235 | HEX BOLT Not Available Price: |
| 19 | 70-6540 | BOLT Price: $3.73 |
| 19 | DD-04512-50120 | LOCK WASHER Not Available Price: |
| 20 | 99-2254 | DISCONTINUED Price: Call Us |
| 20 | DD-T2630-43751 | SHIM-GEAR CASE Not Available Price: |
| 21 | 99-2248 | NUT - CAP Price: $15.91 |
| 21 | DD-76KP-04081 | PLUG Not Available Price: |
| 22 | 70-6690 | WASHER Price: $2.18 |
| 22 | DD-04717-01800 | SEAL WASHER Not Available Price: |
| 23 | 99-2260 | NUT - HEXAGON Price: $2.57 |
| 23 | DD-06613-10010 | GREASE FITTING Not Available Price: |
| 24 | 70-6500 | O-RING Price: $2.10 |
| 25 | 70-4330 | BUSHING Price: $19.24 |
| 26 | 99-2255 | BOLT W/WASHER Price: $3.80 |
| 27 | 70-4430 | SCREW Price: $8.39 |
| 28 | 70-6560 | NUT Price: $3.28 |
| 29 | 70-6790 | PACKING Price: $12.55 |
| 30 | 70-6750 | BOLT Price: $4.49 |
| 31 | 70-6920 | SEAL Price: $7.99 |
| 32 | 99-2253 | LEVER - ADJUSTING Price: $161.01 |
| 33 | 70-6730 | BOLT Price: $3.57 |
| 34 | 70-4530 | COVER Price: $7.00 |
| 35 | 70-4570 | STOP LEVER SUB ASSEMBLY Price: $39.29 |
| 36 | 70-6520 | BOLT Price: $4.01 |
| 37 | 99-2249 | LEVER - TENSION Price: $320.66 |
| 38 | 70-4370 | SPRING Price: $14.33 |
| 39 | 70-4320 | LEVER ASSEMBLY Price: $165.41 |
| 40 | 70-4540 | SLIDER Price: $19.04 |
| 41 | 70-6610 | WASHER Price: $2.56 |
| 41 | 70-6620 | WASHER Price: $1.96 |
| 41 | 70-6630 | WASHER Price: $1.96 |
| 41 | 70-6640 | WASHER Price: $1.96 |
| 41 | 70-6650 | WASHER Price: $2.56 |
| 42 | 70-6490 | RING Price: $3.41 |
| 43 | 70-4200 | PLATE Price: $40.89 |
| 44 | 70-4190 | SLEEVE Price: $175.44 |
| 45 | 70-4180 | NUT Price: $5.36 |
| 46 | 70-6670 | WASHER Price: $2.15 |
| 47 | 70-4170 | FLYWEIGHT ASSEMBLY Price: $454.50 |
| 48 | 99-2258 | GASKET Price: $6.19 |
| 49 | 99-2250 | NUT - HEXAGON Price: $1.69 |
| 50 | 99-2247 | SCREW - ADJUST Price: $10.98 |
| 51 | 99-2259 | GASKET Price: $6.30 |
| 52 | 70-6870 | KEY Price: $10.53 |
| 53 | 99-2246 | HOUSING - GOVERNOR Price: $281.28 |
| 54 | 70-6710 | WASHER Price: $4.69 |
| 55 | 70-4590 | PLUG Price: $14.04 |
| 56 | 70-4210 | PLATE Price: $17.61 |
| 57 | 70-6810 | WASHER Price: $5.36 |
| 58 | 99-2252 | LEVER - SWIVELLING Price: $121.27 |
| 59 | 70-6860 | KEY Price: $10.53 |
| 60 | 70-4380 | SPRING Price: $5.21 |
| 61 | 70-4340 | SHACKLE ASSEMBLY Price: $38.08 |
| 62 | 70-6480 | PIN Price: $1.83 |
| 63 | 99-2257 | SPRING Price: $3.00 |
| 64 | 70-6890 | O-RING Price: $4.85 |
| 65 | 99-2256 | BUSHING - BEARING Price: $27.39 |
| 66 | 70-4410 | PIN Price: $5.36 |
