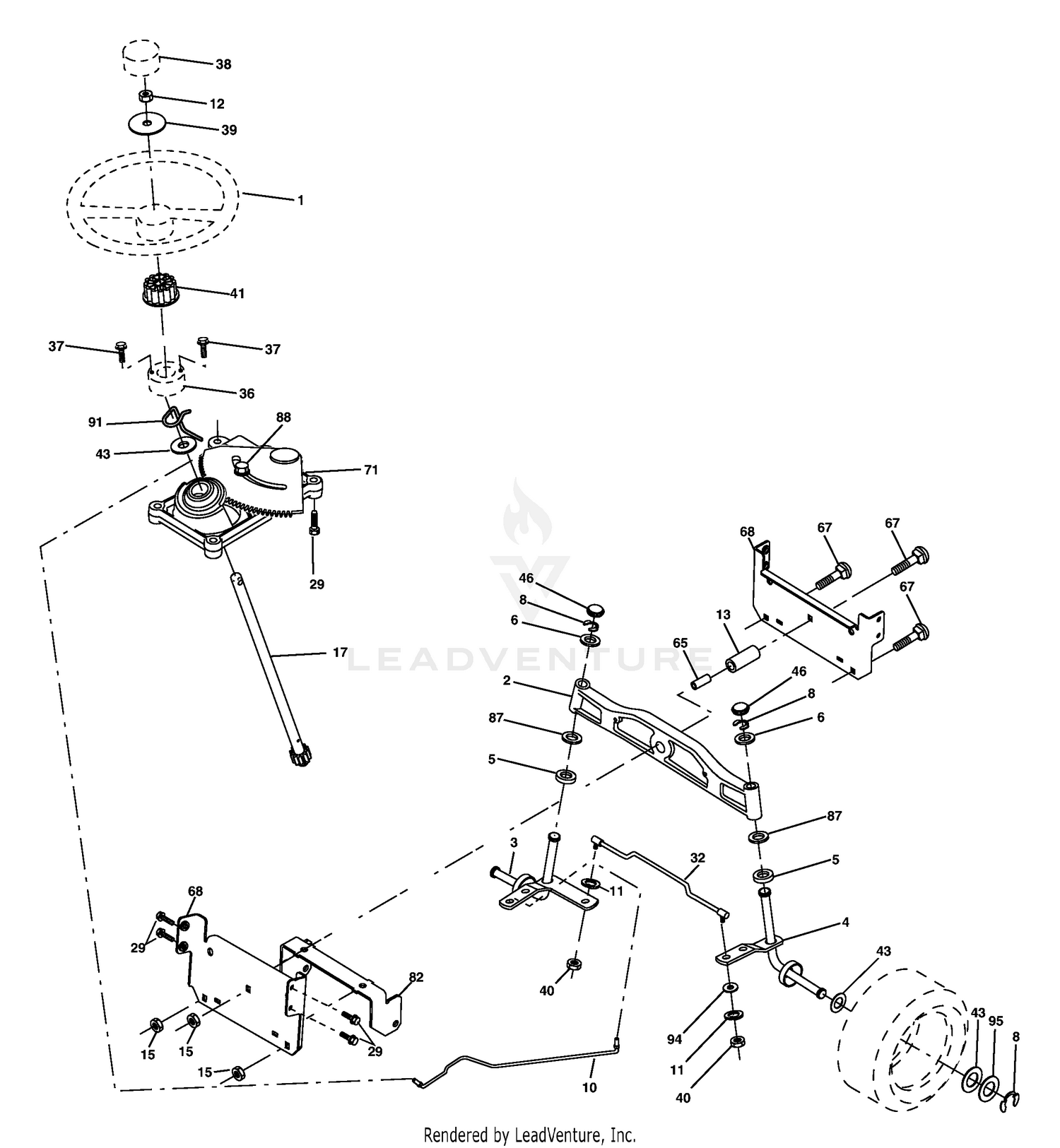

Steering Assembly

Steering Assembly

Parts (32)

RefPart NumberDescription
1 532186094 STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $142.99
2 532193542 AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $112.99
3 532169840 Spindle Asm LH Price: $17.99
4 532169839 Spindle Asm RH Price: $17.99
5 532006266 WASHER THRUST This part replaces 532124931. Price: $5.99
6 532121748 Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99
8 812000029 Ring Klip #t5304-75 Price: $1.99
10 532175121 Link Drag Price: $40.99
11 539990118 WASHER.3/8 This part replaces 810040600. Price: $1.49
12 873940800 Nut Hex Jam Toplock 1/2-20 unf Price: $3.99
13 532136518 Spacer Brg Axle Front Price: $6.99
15 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49
17 532177883 Shaft Asm Strg Price: $67.99
29 817000612 Screw 3/8-16 x 3/4 Price: $2.99
32 532180580 Rod Tie Price: $99.99
36 532155108 KIT/BUSH This part replaces 532155105. Price: $3.99
37 532152927 Screw Price: $3.99
38 532193652 Insert Cap Strg Wh Price: $6.99
39 819183812 Washer 9/16 x 2-3/8 12 Ga. Price: $3.99
40 873540600 Nut Crownlock 3/8-24 Price: $1.49
41 532437747 STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99
43 532121749 Washer 25/32 x 1 1/4 x 16 Ga. Price: $1.99
46 532121232 Cap Spindle Fr Top Blk Price: $1.99
65 532414736 SPACER.BRACE.AXLE This part replaces 532160367. Price: $2.99
67 872110618 Bolt Rdhd Sq 3/8-16 x 2-1/4 Price: $2.99
68 532169827 Axle, Brace Price: $14.99
71 532175146 Steering Asm Price: $61.99
82 532199978 BRACKET.SUSP.CHASSIS.FRONT.15 This part replaces 532169835. Price: $11.99
87 532173966 Washer Flat .781 x 1-1/2 x .14 Price: $3.99
88 532175118 Bolt Shoulder 7/16-20 Price: $3.99
91 532175553 Clip Steering Price: $8.99
94 734117201 WASHER This part replaces 819121414. Price: $1.99
