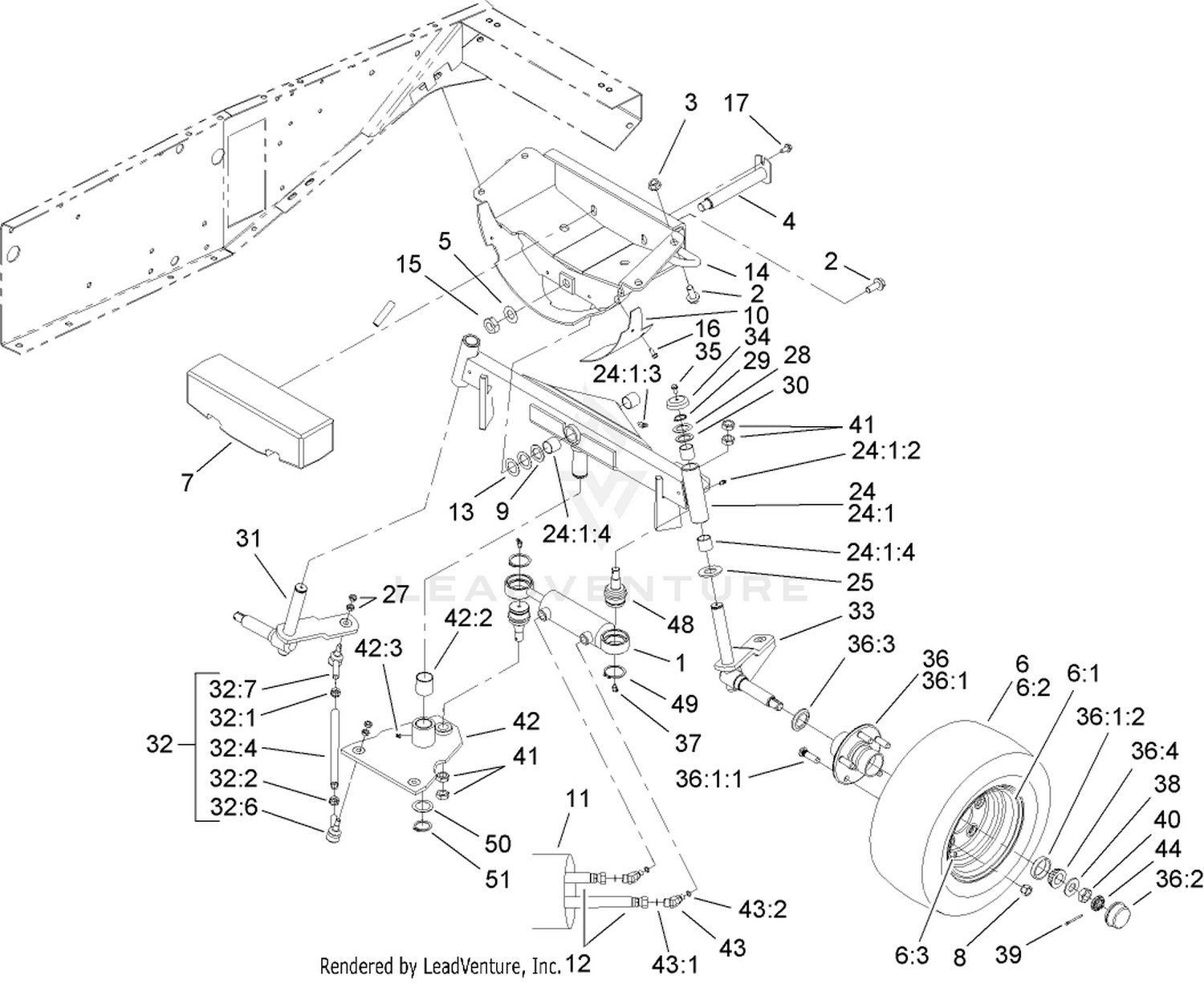

| Ref | Part Number | Description |
|---|
| 1 |
115-4524 |
CYLINDER-HYDRAULIC This part replaces 92-7828. Price: $914.47 |
| 2 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 3 |
32128-23 |
NUT-HF Price: $1.51 |
| 4 |
92-7807-01 |
REAR AXLE PIN ASM Price: $151.97 |
| 5 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 7 |
98-3869-01 |
WEIGHT-REAR Price: $461.69 |
| 8 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 9 |
92-7845 |
SPACER-HARDENED Price: $7.44 |
| 10 |
99-2413-01 |
COVER-GUARD, FLYWHEEL Price: $22.07 |
| 11 |
56-7980 |
SLEEVE-PROTECTIVE Price: $22.90 |
| 12 |
68-9710 |
HOSE-STEERING, REAR Price: $98.31 |
| 13 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 14 |
92-7803-01 |
AXLE SUPPORT ASM Price: $958.49 |
| 15 |
32146-20 |
NUT-HEX Price: $3.23 |
| 16 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 17 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 24 |
106-8050-03 |
REAR AXLE ASM Price: $797.51 |
| 25 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 27 |
3220-3 |
NUT-HJ Price: $0.28 |
| 28 |
5-1226 |
WASHER Price: $3.90 |
| 29 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 30 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 31 |
93-3199-03 |
RH SPINDLE ASM Price: $366.74 |
| 33 |
99-1292-03 |
LH SPINDLE ASM Price: $366.74 |
| 34 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 35 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 37 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 38 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 39 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 40 |
3220-7 |
NUT-JAM Price: $4.09 |
| 41 |
3220-6 |
NUT-JAM Price: $1.25 |
| 42 |
106-8052 |
STEERING PIVOT ASM Price: $365.15 |
| 43 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 44 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 48 |
106-6774 |
JOINT-BALL Price: $79.04 |
| 49 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 50 |
76-2980 |
WASHER-THRUST Price: $5.08 |
