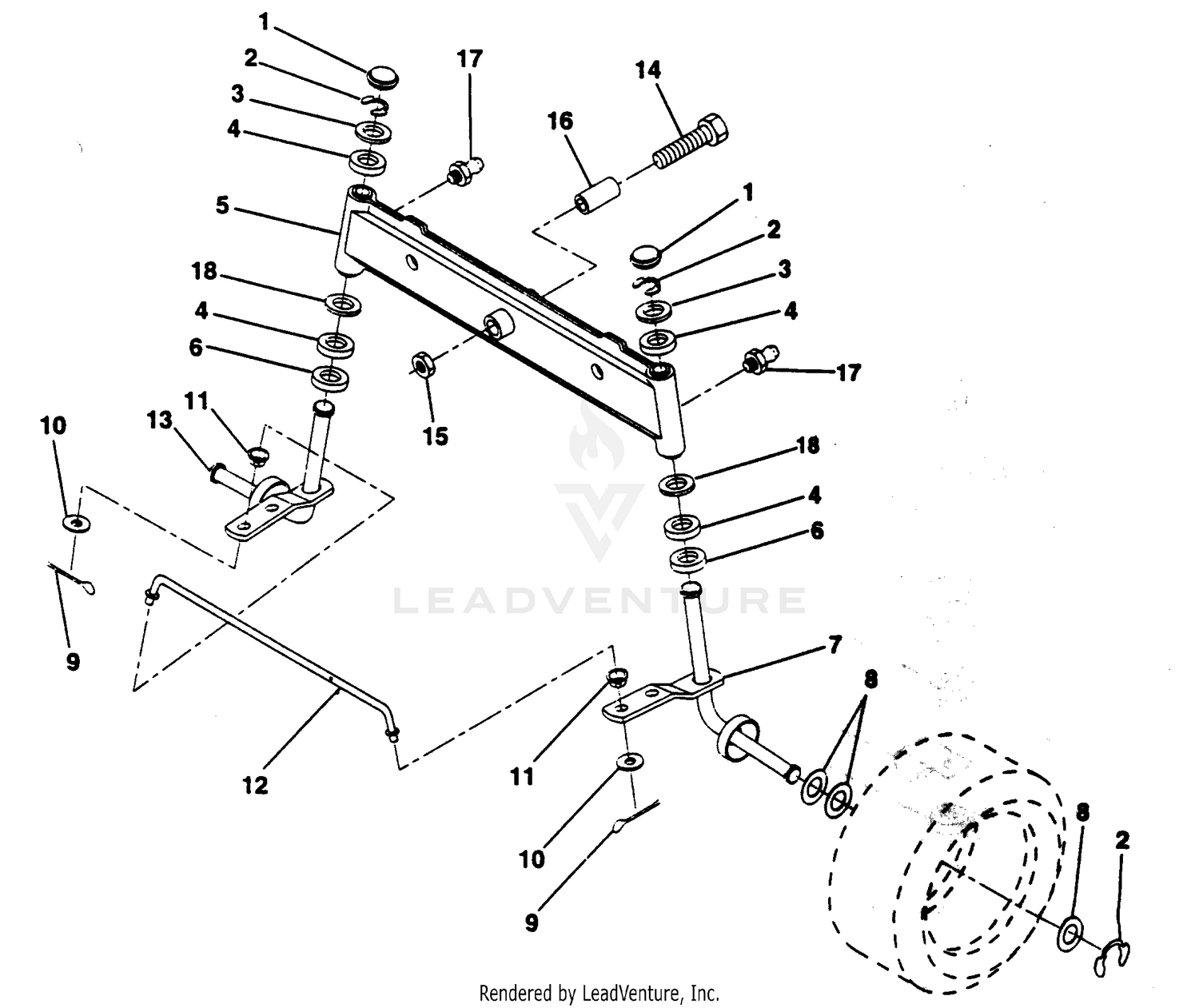

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
532121232 |
Cap, Spindle (AYP part number) Price: $1.99 |
| 2 |
812000029 |
Ring, Clip (AYP part number) Price: $1.99 |
| 2 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 3 |
140-6221 |
LINK AND BUSHING ASSEMBLY This part replaces 16-9759. Price: $70.43 |
| 3 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number) Price: $1.99 |
| 4 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 4 |
93-6981 |
SPACER Price: $4.69 |
| 5 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 5 |
532142033 |
Axle, Front (AYP part number) Price: $59.99 |
| 6 |
137-5979 |
RH 7IN LOW DRAG, TRIM, SIDE PLATE ASM This part replaces 133-0103. Price: $391.19 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
137-5976 |
SIDE PLATE-7IN LD TRIM LH ASM This part replaces 133-0100. Price: $372.57 |
| 7 |
532137062 |
Spindle Assembly, R.H. Price: $21.99 |
| 8 |
112-8936 |
TUBE-SUPPORT Price: $46.12 |
| 8 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $1.99 |
| 9 |
112-8935 |
FRAME-CENTER Price: $455.11 |
| 9 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 10 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge (AYP part number) Price: $2.99 |
| 11 |
532126847 |
Bushing (AYP part number) Price: $2.99 |
| 12 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 12 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $12.99 |
| 13 |
532137061 |
Spindle Assembly, L.H. (AYP part number) Price: $23.59 |
| 14 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 14 |
874011056 |
Bolt Hex 5/8-11 Unc x 3-1/2 (AYP part number) Price: $4.99 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873901000. Price: $2.99 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 16 |
532110438 |
Spacer Bearing (AYP part number) Price: $5.99 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 17 |
532124836 |
Fitting Grease (AYP part number) Price: $5.99 |
| 18 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 19 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
