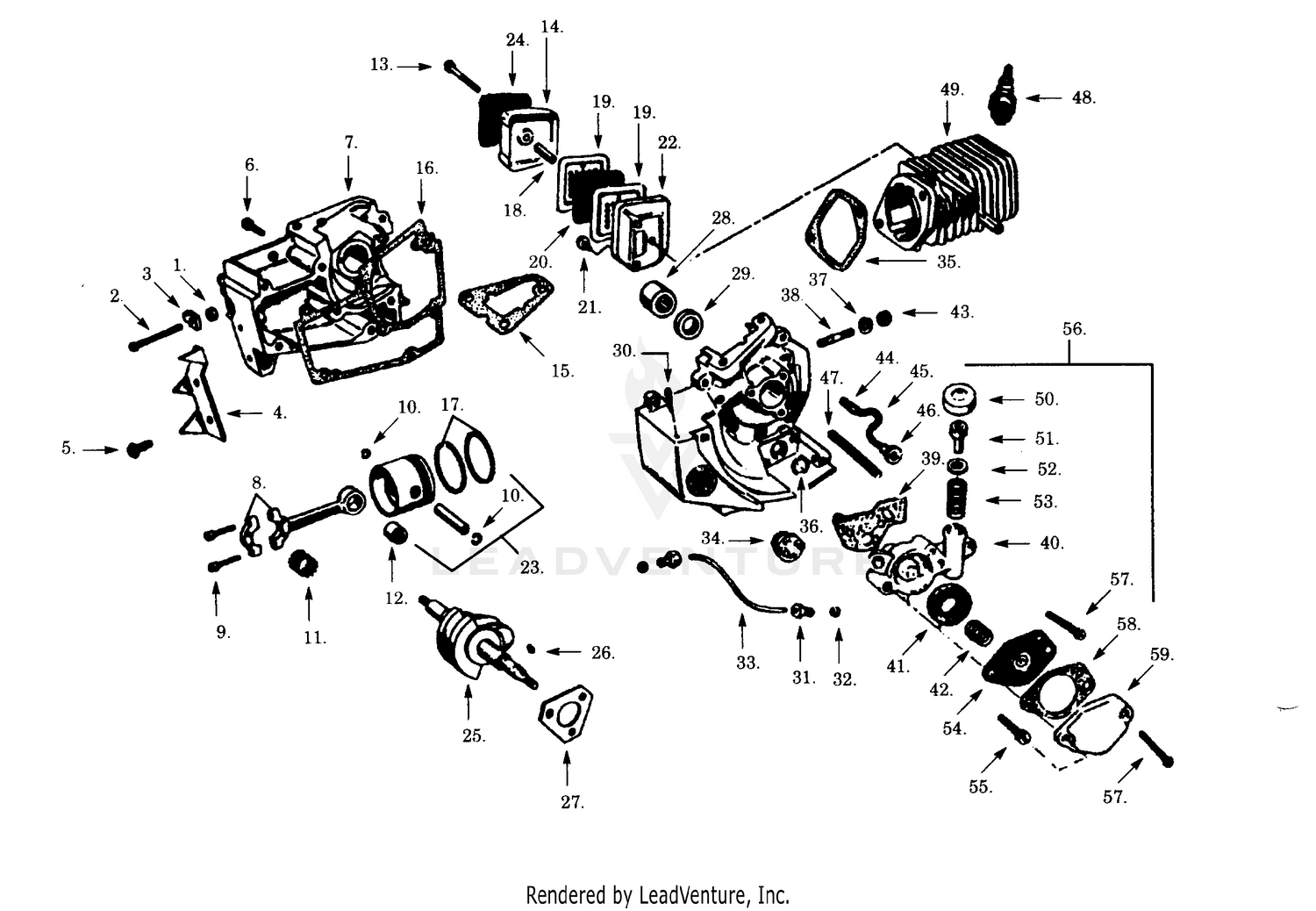

INTERNAL POWER UNIT
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-7773 | SCREW-HSH Price: $8.36 |
| 1 | 530015135 | Nut Price: $1.35 |
| 2 | 3234-7 | SCREW-HHF Price: $1.99 |
| 2 | 530016115 | Screw This part replaces 530015134. Price: $1.99 |
| 3 | 107-2996 | FRONT GRASS SHIELD ASM Price: $69.51 |
| 3 | 530023492 | BAR ADJUST PIN Price: $3.99 |
| 4 | 125-1978 | SHIELD-GRASS, REAR This part replaces 107-7779-01. Price: $66.83 |
| 4 | 530023387 | Spur (Optional) Price: $14.99 |
| 5 | 3256-74 | WASHER-FLAT Price: $0.27 |
| 5 | 530015539 | Screw Price: $1.99 |
| 6 | 322-14 | SCREW-HH Price: $1.01 |
| 6 | 530015136 | Screw Price: $3.33 |
| 7 | 110-1706 | DEFLECTOR Price: $4.76 |
| 9 | 530001723 | Screw Price: $1.99 |
| 10 | 530015131 | Piston Pin Retainer Price: $0.04 |
| 11 | 530032019 | Crankpin Rollers Price: $4.99 |
| 12 | 530032018 | Piston Pin Bearing Price: $6.99 |
| 13 | 530015189 | Screw Price: $1.99 |
| 14 | 530026729 | Muffler Cover Price: $3.99 |
| 17 | 530023485 | Piston Rings Price: $3.33 |
| 18 | 530015657 | Muffler Spacer Price: $2.99 |
| 19 | 530023591 | Muffler Baffle Price: $2.00 |
| 20 | 530023592 | Muffler Screen Price: $2.99 |
| 21 | 530001709 | Screw Price: $1.99 |
| 22 | 530026731 | Muffler Body Price: $7.12 |
| 24 | 530026730 | Muffler Shield Price: $8.99 |
| 25 | 530022173 | Crankshaft Price: $47.72 |
| 26 | 530015126 | Flywheel Key Price: $1.99 |
| 27 | 530023354 | Crankcase Washer Price: $1.99 |
| 28 | 530032021 | Bearing Price: $9.99 |
| 30 | 530069185 | Oil Vent Pin Price: $2.99 |
| 31 | 530002615 | Discharge Line Fit ting Price: $1.99 |
| 32 | 530002464 | Ferrule 1/8" Tubing Price: $1.99 |
| 33 | 530021013 | Discharge Line-Oil Pump (Bulk 8115) Price: $0.99 |
| 36 | 530001952 | O-Ring Price: $2.99 |
| 37 | 530001642 | Cylinder Washer Price: $1.99 |
| 38 | 530001674 | Cylinder Studs Price: $2.99 |
| 40 | 530010178 | Oil Pump Body Price: $3.33 |
| 42 | 530023699 | Diaphragm Spring Price: $0.08 |
| 43 | 530001660 | Nut Price: $1.99 |
| 44 | 530002589 | Oil Pick-up Weight Price: $8.99 |
| 45 | 530021012 | Oil Line (Bulk 8132) Price: $0.99 |
| 46 | 530023148 | Oil Pump Intake Valve Price: $6.99 |
| 47 | 530024677 | Oil Line Protector Spring Price: $1.99 |
| 48 | 503235111 | BPMR7A NGK SPARK PLUG This part replaces 952030037. Price: $3.99 |
| 49 | 530012072 | Cylinder Price: $3.33 |
| 50 | 530023356 | Oil Pump Cap Price: $1.99 |
| 51 | 530023357 | Oil Pump Plunger Price: $0.52 |
| 53 | 530023358 | Oil Pump Spring Price: $0.68 |
| 54 | 530022124 | Diaphragm Ass'y. Price: $11.32 |
| 55 | 530015114 | Screw Price: $1.99 |
| 56 | 530010177 | Pump Ass'y. Price: $34.44 |
| 57 | 530015137 | Screw Price: $3.33 |
