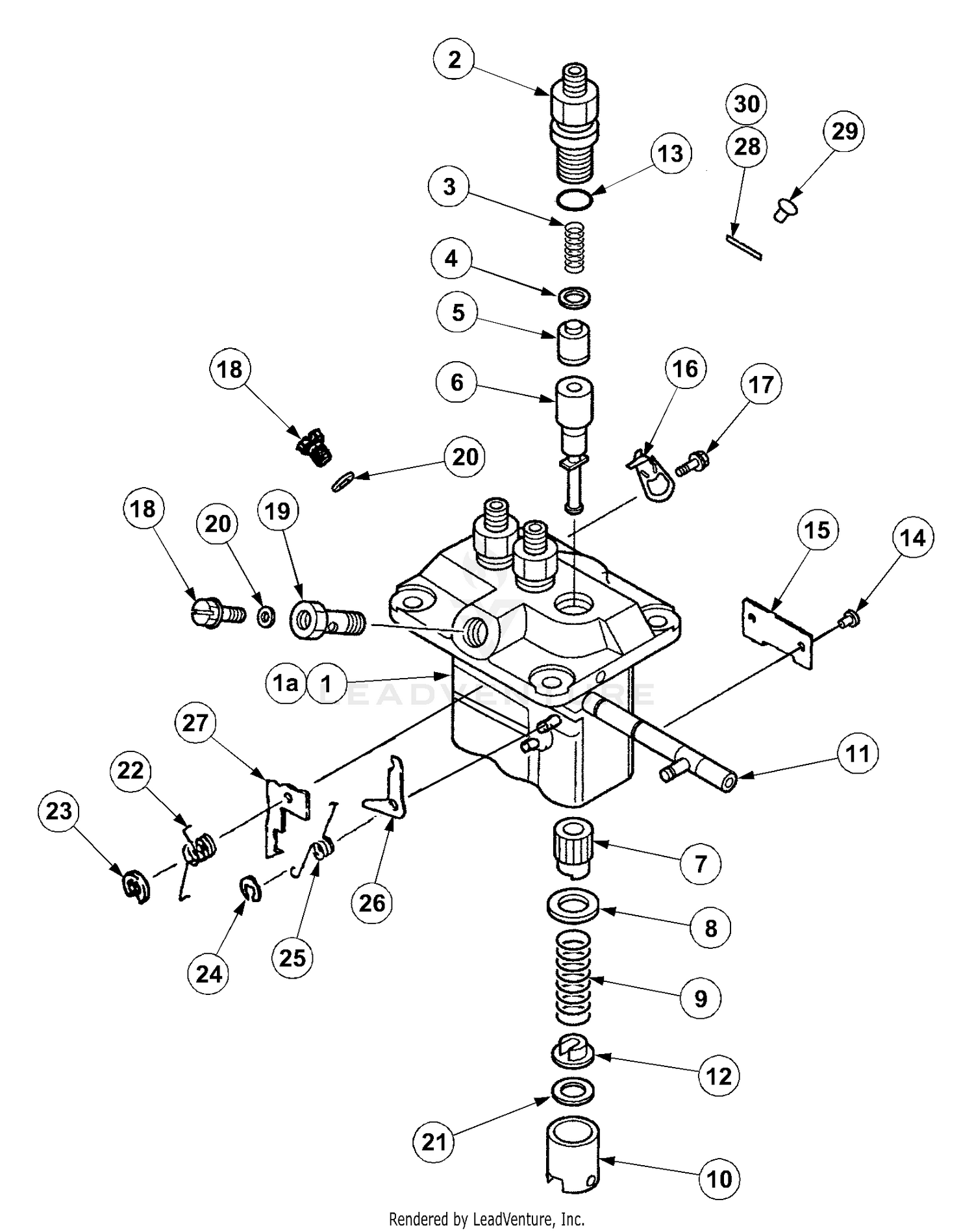

| Ref | Part Number | Description |
|---|
| 1 |
MA-47X01-17900 |
HOUSING-INJ PUMP Not Available Price: |
| 2 |
MA-47X01-13200 |
HOLDER-DEL Not Available Price: |
| 3 |
MA-47X01-13300 |
SPRING-DELIVERY VL Not Available Price: |
| 4 |
MA-09013-70130 |
GASKET-DELIVERY Not Available This part replaces MA-MM501856. Price: |
| 5 |
MA-47X01-07700 |
VALVE SUB ASSEMBLY Not Available Price: |
| 6 |
MA-47X01-17000 |
ELEMENT ASSEMBLY-INJ PM Not Available Price: |
| 7 |
MA-09016-10210 |
Sleeve, Control This part replaces MA-MM500229. Price: $28.28 |
| 8 |
MA-MM501098 |
SEAT-SPRING UPPER Not Available Price: |
| 9 |
MA-MM500360 |
SPRING-PLU Not Available Price: |
| 10 |
MA-09017-00170 |
TAPPET ASSEMBLY-INJ PM Not Available This part replaces MA-MM500230. Price: |
| 11 |
76-0860 |
SHAFT-COUPLING Price: $688.74 |
| 11 |
MA-09021-00470 |
RACK ASSEMBLY Not Available This part replaces MA-MM501311. Price: |
| 12 |
76-0850 |
BEARING-THRUST Price: $30.56 |
| 12 |
MA-09030-10060 |
SEAT-SPRING LOWER Not Available This part replaces MA-MM500316. Price: |
| 13 |
92-9761 |
LINK-DRIVE Price: $313.30 |
| 13 |
MA-90802-20150 |
O-RING Not Available This part replaces MA-MM500438. Price: |
| 14 |
92-9762 |
SCREW-HH Price: $8.11 |
| 14 |
MA-09018-30050 |
PIN-TAPPET Not Available This part replaces MA-MM500231. Price: |
| 15 |
MA-09046-70040 |
PLATE Not Available This part replaces MA-MM501162. Price: |
| 16 |
MA-09006-80020 |
PLATE-ADJUSTING Not Available This part replaces MA-MM514109. Price: |
| 17 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 17 |
MA-MM514195 |
BOLT,WITH WASHER Not Available Price: |
| 18 |
92-9754 |
PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 18 |
MA-MM501152 |
SCREW Not Available Price: |
| 19 |
MA-MM500446 |
WASHER Not Available Price: |
| 20 |
MA-MM500578 |
WASHER-PIPE UNION Not Available Price: |
| 21 |
None |
Plate,Tappet Shim |
| 22 |
76-0840 |
MANIFOLD Price: $790.28 |
| 22 |
MA-MM501247 |
SPRING Not Available Price: |
| 23 |
MA-MM501496 |
RING Not Available Price: |
| 24 |
76-0940 |
END COVER ASM Price: $431.83 |
| 24 |
MA-MM500507 |
RING Not Available Price: |
| 25 |
MA-MM514131 |
SPRING,ANGLEICH SE Not Available Price: |
| 26 |
None |
Plate,Angleich |
| 27 |
None |
Plate,Smoke Set |
| 28 |
None |
Plate,Name |
| 29 |
MA-MM500429 |
RIVET Not Available Price: |
| 503218816 |
503218872 |
SCREW IHSCFT This part replaces 503218816. Price: $4.99 |
| 503218825 |
503218876 |
SCREW This part replaces 503218825. Price: $4.99 |
| 503853701 |
503853701 |
FRONT HANDLE Price: $44.99 |
| 503898301 |
503898301 |
INSULATOR Price: $17.99 |
| 503922401 |
503922401 |
SPACER Price: $3.99 |
| 537301701 |
537301701 |
FRONT HANDLE Price: $44.99 |
