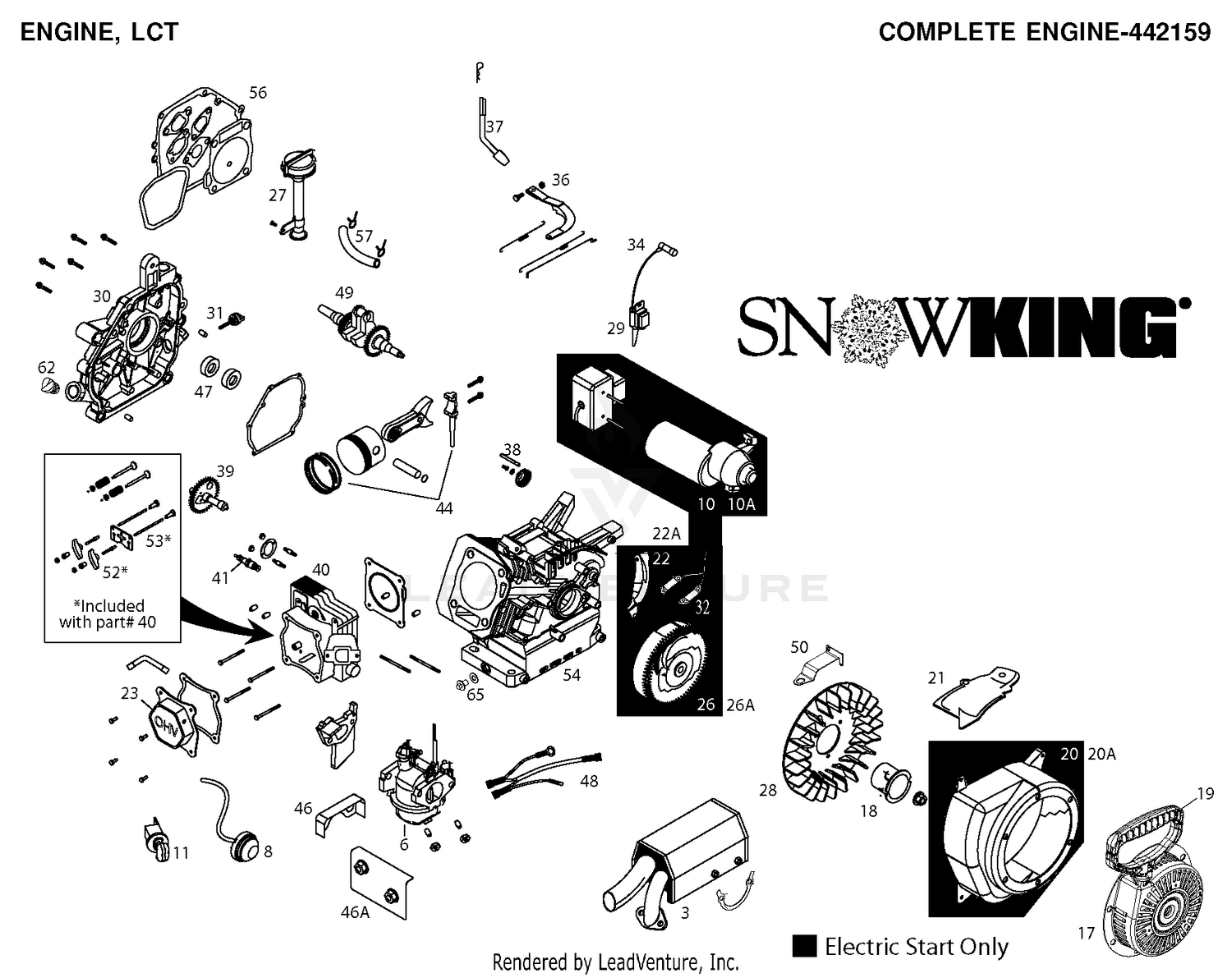

| Ref | Part Number | Description |
|---|
| 3 |
593989401 |
MUFFLER ASSEMBLY WITH BRACKET This part replaces 532444277. Price: $74.99 |
| 8 |
532424949 |
PRIMER.BULB.WITH HOSE (SNOW) This part replaces 532437123. Price: $11.99 |
| 10 |
532437124 |
STARTER.ASM.ELEC.(SKSNO411) Price: $249.99 |
| 10A |
583516501 |
STARTER.EURO.230V.SINGLE.STAGE This part replaces 532437125. Price: $349.99 |
| 11 |
532424954 |
SWITH.KEY.ASSEM.SNOW.SINGLE.ST Price: $24.99 |
| 17 |
532436967 |
RECOIL.STRT.ROUND(BLK) SNOW Price: $39.99 |
| 18 |
532436968 |
STRTER.CUP(NON-SLOT)SKSN0601.2 Price: $29.99 |
| 19 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT Price: $14.99 |
| 20 |
532424971 |
BLOW.HSG.ASSY.ELEC(SKSN-0602) Price: $279.99 |
| 20A |
532429230 |
BLOW.HSG.ASSY.ELEC(SKSN-0612) Price: $21.99 |
| 21 |
532424973 |
SHILED.FLYWEEL.SYS(SKSN-0604) Price: $6.99 |
| 22 |
532424975 |
SHLD.ELEC.START.FLY(SKSN-0605) Price: $4.99 |
| 22A |
532429596 |
SHIELD.FLYWEEL.MAN(SKSN-0607) Price: $7.99 |
| 23 |
587176901 |
VALVE COVER LCT 179/208 This part replaces 532420580. Price: $44.99 |
| 26 |
532429235 |
FLYWHL.ASSY.ELECT.(SKSN0405) Price: $199.99 |
| 26A |
532429236 |
FLYWHL.ASSY.MANUL.SK2081700 This part replaces 532420585. Price: $49.99 |
| 27 |
532444091 |
HIGH OIL-FILL TUBE ASSY Price: $17.99 |
| 28 |
532420586 |
FLYWHEEL FAN 420586 Price: $9.99 |
| 29 |
532443894 |
COIL.ING.CDI.HI TEMP.SKSNO416. Price: $37.99 |
| 30 |
583630001 |
COVER.CRANKCASE.LCT.208CC This part replaces 532420606. Price: $59.99 |
| 31 |
532420961 |
DIPSTICK SMALL Price: $9.99 |
| 32 |
532444090 |
CHARGING.COILS.18-WATT Price: $74.99 |
| 34 |
532436966 |
SPARK.PLUG.BOOT.SNW,SKSN4691.1 Price: $14.99 |
| 36 |
581768701 |
CARBURETTOR GOVERNOR LINK.ASM. This part replaces 532420601. Price: $7.99 |
| 37 |
532420602 |
KIT.GOVERNOR.CRANK(SK208-3100) Price: $5.99 |
| 38 |
532429646 |
GOVENOR.GEARS ASM(SK2082900) Price: $34.99 |
| 39 |
582051401 |
CAMSHAFT.208CC.EPA This part replaces 532420584. Price: $89.99 |
| 40 |
582045701 |
CYLINDER HEAD.208CC.EPA W/GASK This part replaces 532420578. Price: $159.99 |
| 41 |
532424939 |
SPARK.PLUG(2083810) Price: $14.99 |
| 44 |
532420582 |
KIT.PISTON.SRV(SK208-1400) Price: $119.99 |
| 46 |
532429260 |
SHIELD.VAPOR.SNOW Price: $14.99 |
| 46A |
532444275 |
SHIELD.INTAKE.(LCT.SKSN0140.1) Price: $17.99 |
| 47 |
532429599 |
SEAL KIT (2 PCS) Price: $14.99 |
| 48 |
532437967 |
HARNESS.WIRE.SINGLE.STAGE.LCT Price: $17.99 |
| 49 |
580352501 |
CRANKSHAFT.KEYED.#14.LCT.208CC This part replaces 532429600. Price: $59.99 |
| 50 |
532429259 |
SPEED.CTRL.BRKT.(SKSN0150) Price: $11.99 |
| 52 |
532429691 |
ROCKER ARM KIT Price: $59.99 |
| 53 |
532420579 |
KIT.PUSH.ROD.SRV(SK208-1001) Price: $34.99 |
| 54 |
532436567 |
CYLINDER.ASM.SKSN0001.2 Price: $349.99 |
| 56 |
532429601 |
GASKET.KIT.208CC(SK2084300.1) Price: $49.99 |
| 57 |
532438014 |
KIT.FUEL.HOSE.208CC.SING/STAGE Price: $8.99 |
| 62 |
532429598 |
NON REMOVABLE PLUG Price: $11.99 |
| 65 |
532435495 |
KIT.OIL.DRAIN.PLUG(SK2089911 Price: $7.99 |
