| Ref | Part Number | Description |
|---|
| 8 |
710-05306 |
Bolt M8×40 Price: $3.56 |
| 9 |
751P12207A |

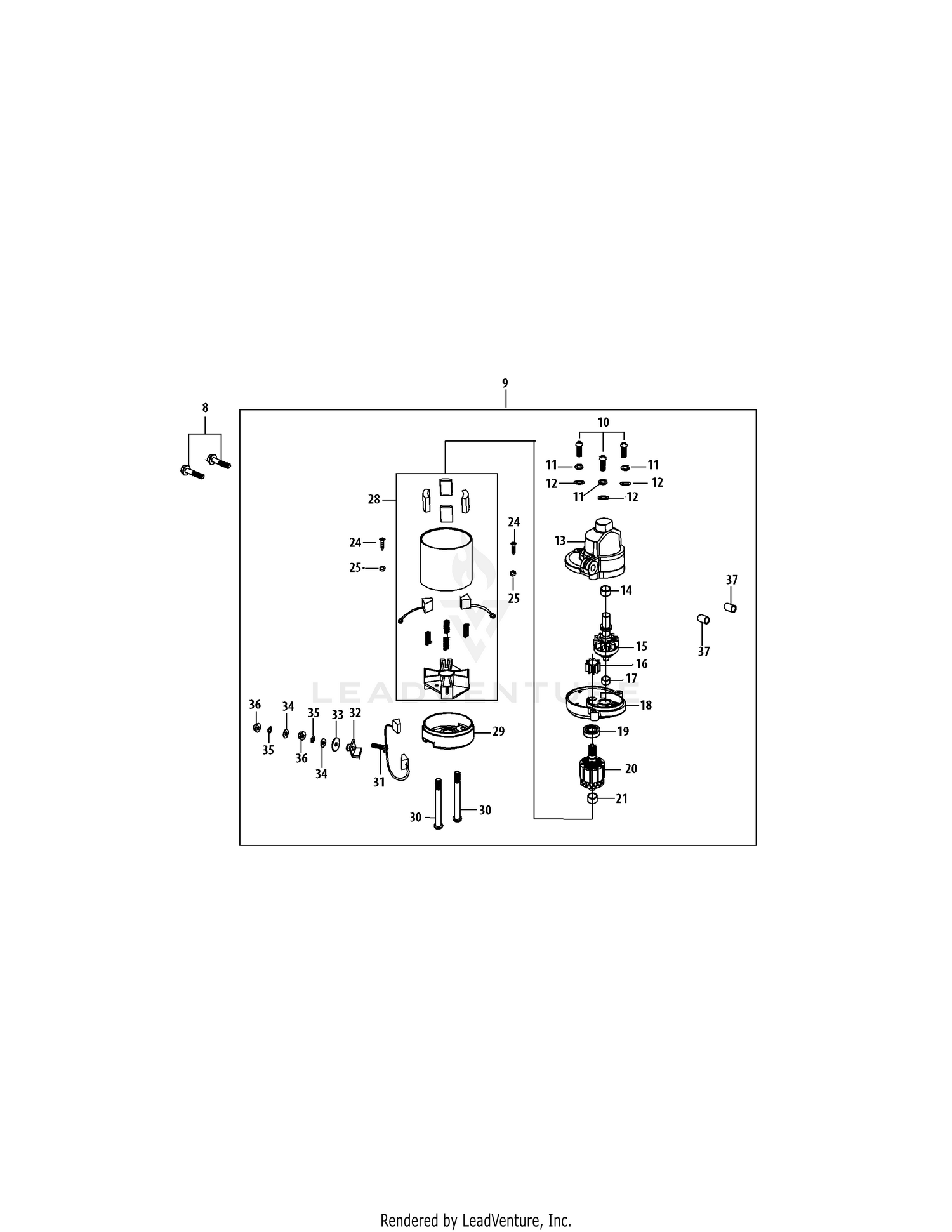

STARTER ASSEMBLY This part replaces 751-12207. Price: $197.22 |
| 10 |
710-05307 |
Screw M5×25 Price: $3.32 |
| 11 |
736-04554 |
Lock Washer 5 Price: $3.32 |
| 12 |
736-04556 |
Plain Washer Price: $3.56 |
| 13 |
951-12208 |
Starter Drive End Cover Price: $21.87 |
| 14 |
951-12211 |
Bearing Price: $3.56 |
| 15 |
951-12210 |
Starter Pinion/Clucth Assembly Price: $79.54 |
| 16 |
951-12312 |
Gear Price: $9.58 |
| 17 |
951-12209 |
Bearing Price: $3.56 |
| 18 |
951-12212 |
Clutch Pinion Cover Price: $34.17 |
| 19 |
951-12214 |
Bearing 6001Zz Price: $12.58 |
| 20 |
951-12215 |
Starter Armature Price: $114.72 |
| 21 |
951-12216 |
BEARING Not Available Price: |
| 24 |
951-12217 |
Self-Tapping Bolt Price: $3.24 |
| 25 |
736-04554 |
Washer This part replaces 736-04580. Price: $3.32 |
| 28 |
951-12529 |
Brush Assembly This part replaces 951-12218. Price: $55.87 |
| 29 |
951-12219 |
STARTER END COVER Not Available Price: |
| 30 |
710-05308 |
Bolt M6×100 Price: $3.56 |
| 31 |
710-05309 |
BOLT M6 x 30 Not Available Price: |
| 32 |
951-12324 |
Waterproof Starter Washer Price: $3.32 |
| 33 |
736-04555 |
INSULATION WASHER Not Available Price: |
| 34 |
736-04556 |
Washer 6 Price: $3.56 |
| 35 |
736-04477 |
Lock Washer 6 Price: $5.30 |
| 36 |
712-05015 |
Nut M6 This part replaces 712-04212. Price: $5.78 |
| 501544102 |
501544102 |
OIL SCREEN Price: $14.99 |
| 501615801 |
501615801 |
SPRING Price: $5.99 |
| 503230004 |
503230004 |
WASHER 6.1X9 Price: $3.99 |
| 503272101 |
503272101 |
RETAINING RING Price: $2.99 |
| 503426701 |
503426701 |
OIL HOSE Price: $8.99 |
| 503432001 |
503432001 |
CLUTCH DRUM BEARING Price: $14.99 |
| 503624901 |
503624901 |
PLUG Price: $5.99 |
| 503644701 |
503644701 |
GROMMET Price: $5.99 |
| 503752401 |
503752401 |
WASHER Price: $4.99 |
| 503756104 |
582270106 |
Pinions This part replaces 503756104. Price: $11.99 |
| 503774301 |
503774301 |
PIPE Price: $9.99 |
| 503811301 |
503811301 |
SCREW Price: $3.99 |
| 503813001 |
503813001 |
SPRING CLIP Price: $3.99 |
| 503975001 |
537257501 |
CLUTCH ASSEMBLY This part replaces 503975001. Price: $49.99 |
| 503975101 |
503975101 |
CLUTCH SPRING Price: $4.99 |
| 537106401 |
537106401 |
PUMP PISTON Price: $12.99 |
| 725532956 |
725532955 |
SCREW MC6S 5X16 This part replaces 725532956. Price: $6.99 |
