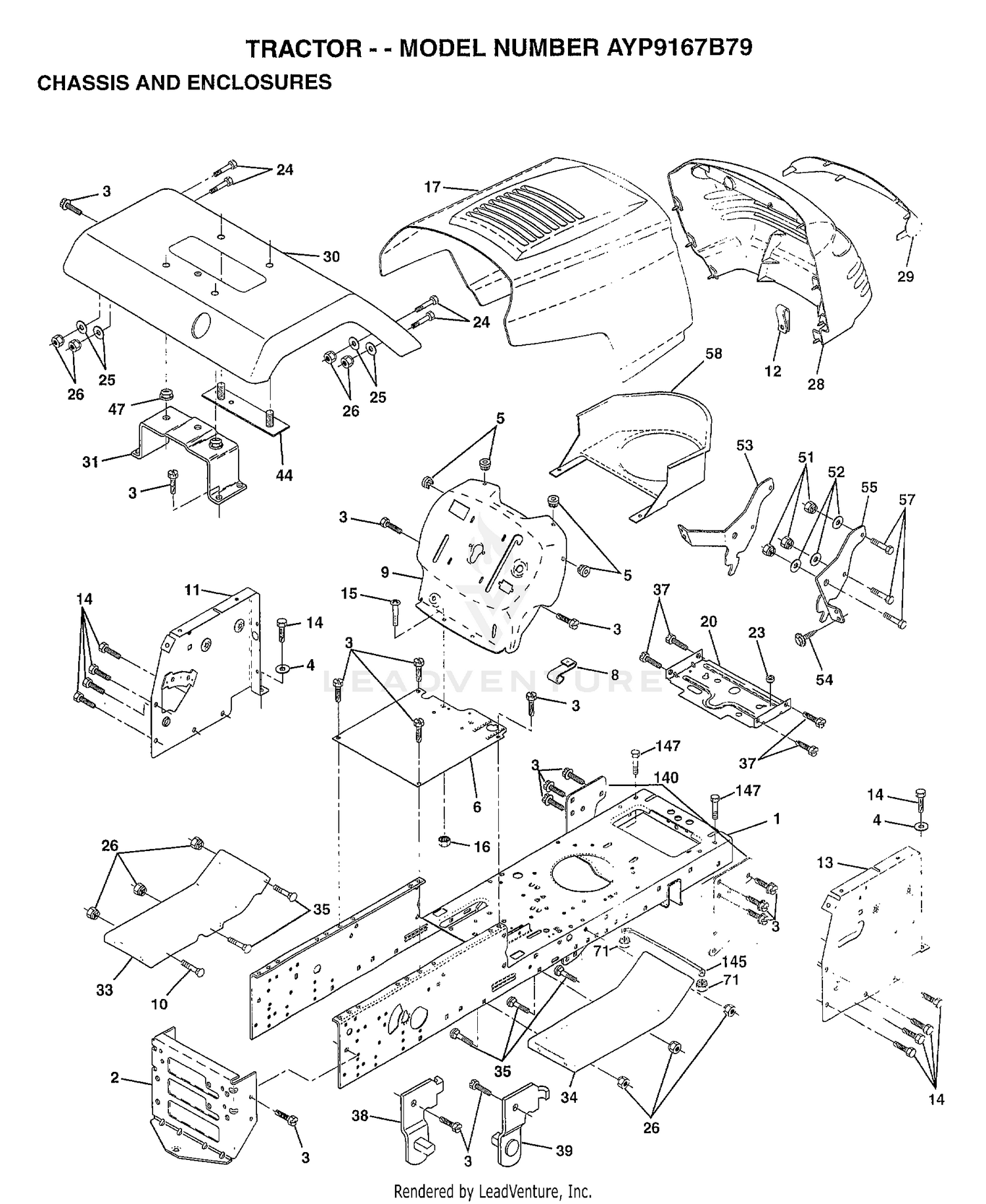

| Ref | Part Number | Description |
|---|
| 1 |
159530 |
CHASSIS ASM Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
155923 |
SADDLE Price: Call Us |
| 9 |
147633X011 |
DASH SILKSCREEN Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
139394X418 |
HOOD.STL.PRV.LB Price: Call Us |
| 20 |
156737 |
PLATE MEG BATTERY/FUEL TANK Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157428 |
GRILL Price: Call Us |
| 29 |
146654 |
LENS.EURO.W/DECAL Price: Call Us |
| 30 |
140002X418 |
FENDER.YT/GT Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
137113 |
BRKT.ASM.FENDER Price: Call Us |
| 33 |
145244X418 |
FOOTREST.LT.LT/GT Price: Call Us |
| 34 |
145243X418 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 44 |
140675 |
STRAP ASM FENDER Price: Call Us |
| 47 |
105531X |
NUT-PUSH YT Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 71 |
73680400 |
SUB= 73690400 Price: Call Us |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
