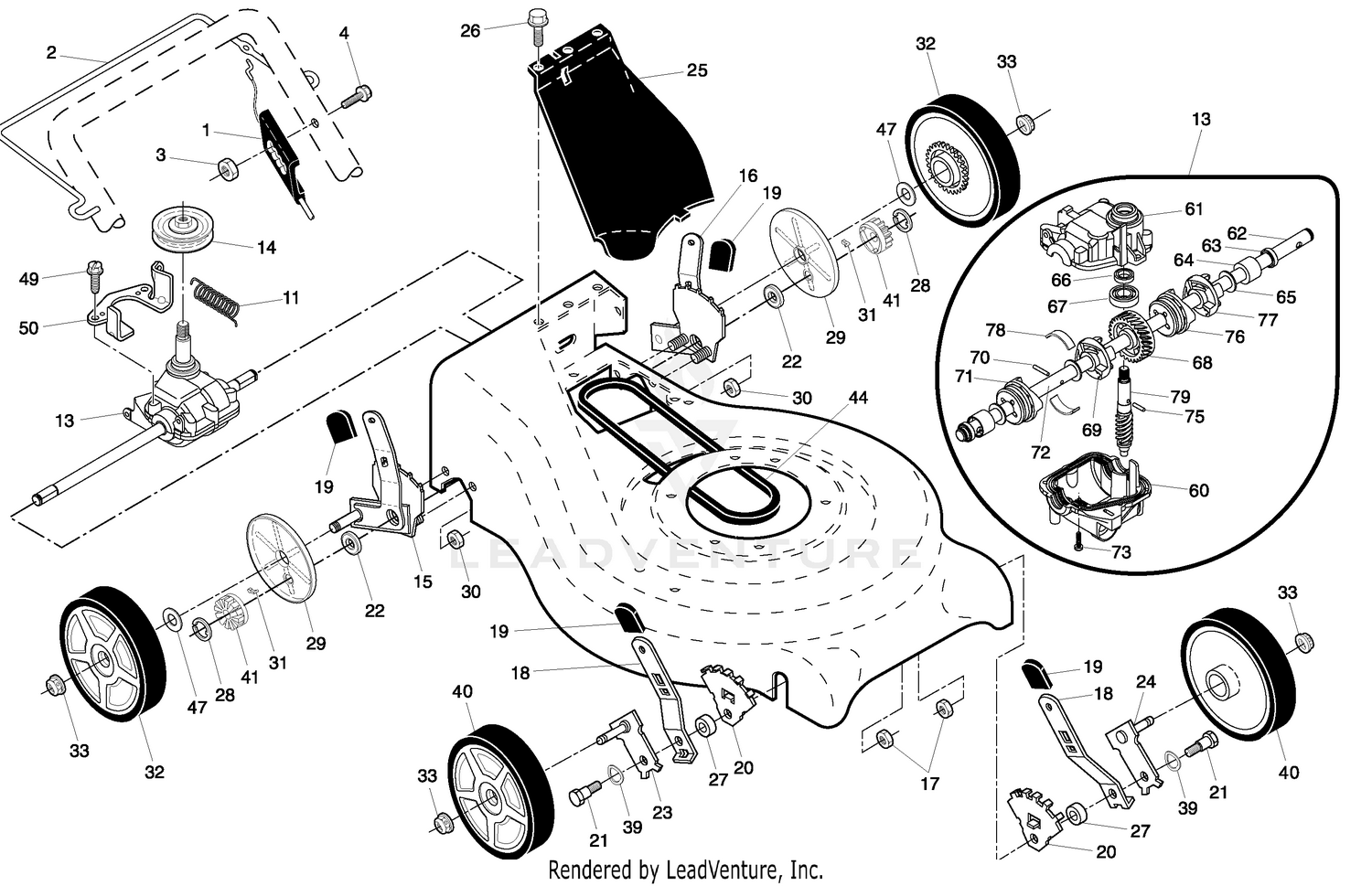

| Ref | Part Number | Description |
|---|
| 2 |
139-6007 |
CARTRIDGE-POPPET, NC This part replaces 92-6315. Price: $531.50 |
| 2 |
194185X421 |
Lever, Drive Control Price: Call Us |
| 3 |
191730 |
Nut, Hex Price: Call Us |
| 3 |
94-2627 |
CARTRIDGE Price: $453.45 |
| 4 |
161-8352 |
VALVE AND COIL KIT This part replaces 93-7494. Price: $347.93 |
| 4 |
199687 |
Screw Price: Call Us |
| 5 |
105-3327 |
VALVE-CARTRIDGE, DOUBLE BLOCKING Price: $564.77 |
| 6 |
161-8350 |
COIL ASM This part replaces 83-2010. Price: $111.53 |
| 7 |
161-8350 |
COIL ASM This part replaces 105-3328. Price: $111.53 |
| 10 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 11 |
406558 |
Spring, Return Price: Call Us |
| 13 |
404844 |
Gear Case Assembly, Complete Price: Call Us |
| 14 |
193443 |
Pulley, Drive Price: Call Us |
| 17 |
166785 |
Nut, Hex Price: Call Us |
| 18 |
401621X004 |
Spring, Selector Price: Call Us |
| 19 |
701037X421 |
Knob, Selector Spring Price: Call Us |
| 20 |
407494X005 |
Bracket, Wheel Adjusting Price: Call Us |
| 21 |
401638 |
Bolt, Shoulder, Hex Head Price: Call Us |
| 22 |
191039 |
Bearing, Ball Price: Call Us |
| 23 |
401175X004 |
Axle Arm Assembly, RH Price: Call Us |
| 24 |
401174X004 |
Axle Arm Assembly, LH Price: Call Us |
| 25 |
199775X428 |
Cover Drive Price: Call Us |
| 26 |
750634 |
Screw, Threaded, Rolled #10-25 x .50 Price: Call Us |
| 27 |
401629 |
Spacer Price: Call Us |
| 28 |
12000058 |
E-Ring 7/16 Price: Call Us |
| 29 |
189403 |
Cover, Dust, Wheel Price: Call Us |
| 30 |
73800400 |
Nut, Hex Price: Call Us |
| 31 |
404845 |
Pawl, Drive Price: Call Us |
| 32 |
405744X421 |
Wheel & Tire Assembly, Rear 8 x 1-3/4 Price: Call Us |
| 33 |
409148 |
Nut, Flangelock 3/8-16 Price: Call Us |
| 39 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 40 |
193909X421 |
Wheel & Tire Assembly, Front 8 x 1-3/4 Price: Call Us |
| 41 |
404835 |
Pinion Price: Call Us |
| 44 |
406580 |
V-Belt Price: Call Us |
| 47 |
67725 |
Washer Price: Call Us |
| 49 |
163409 |
Screw, Hi-Lo Thread #12 x 5/8 Price: Call Us |
| 50 |
404832X004 |
Belt Keeper Price: Call Us |
| 60 |
412747 |
Case, Lower Price: Call Us |
| 61 |
412736 |
Case, Upper Price: Call Us |
| 62 |
412745 |
Shaft, Output, Long Price: Call Us |
| 63 |
183508 |
Seal, Output Shaft Price: Call Us |
| 64 |
183511 |
Bushing Price: Call Us |
| 65 |
183509 |
Washer Price: Call Us |
| 66 |
183514 |
Seal, Worm Shaft Price: Call Us |
| 67 |
183506 |
Bearing, Ball Price: Call Us |
| 68 |
412742 |
Gear, 28 Teeth Price: Call Us |
| 69 |
412740 |
Movable Dog Clutch, LH Price: Call Us |
| 70 |
412741 |
Pin, Output Shaft Price: Call Us |
| 71 |
412739 |
Fixed Dog Clutch, LH Price: Call Us |
| 72 |
412738 |
Shaft, Output, Short Price: Call Us |
| 73 |
183513 |
Screw, Case Price: Call Us |
| 75 |
412746 |
Pin, Worm Shaft Price: Call Us |
| 76 |
412743 |
Movable Dog Clutch, RH Price: Call Us |
| 77 |
412744 |
Fixed Dog Clutch, RH Price: Call Us |
| 78 |
410731 |
Spring, Leaf Price: Call Us |
