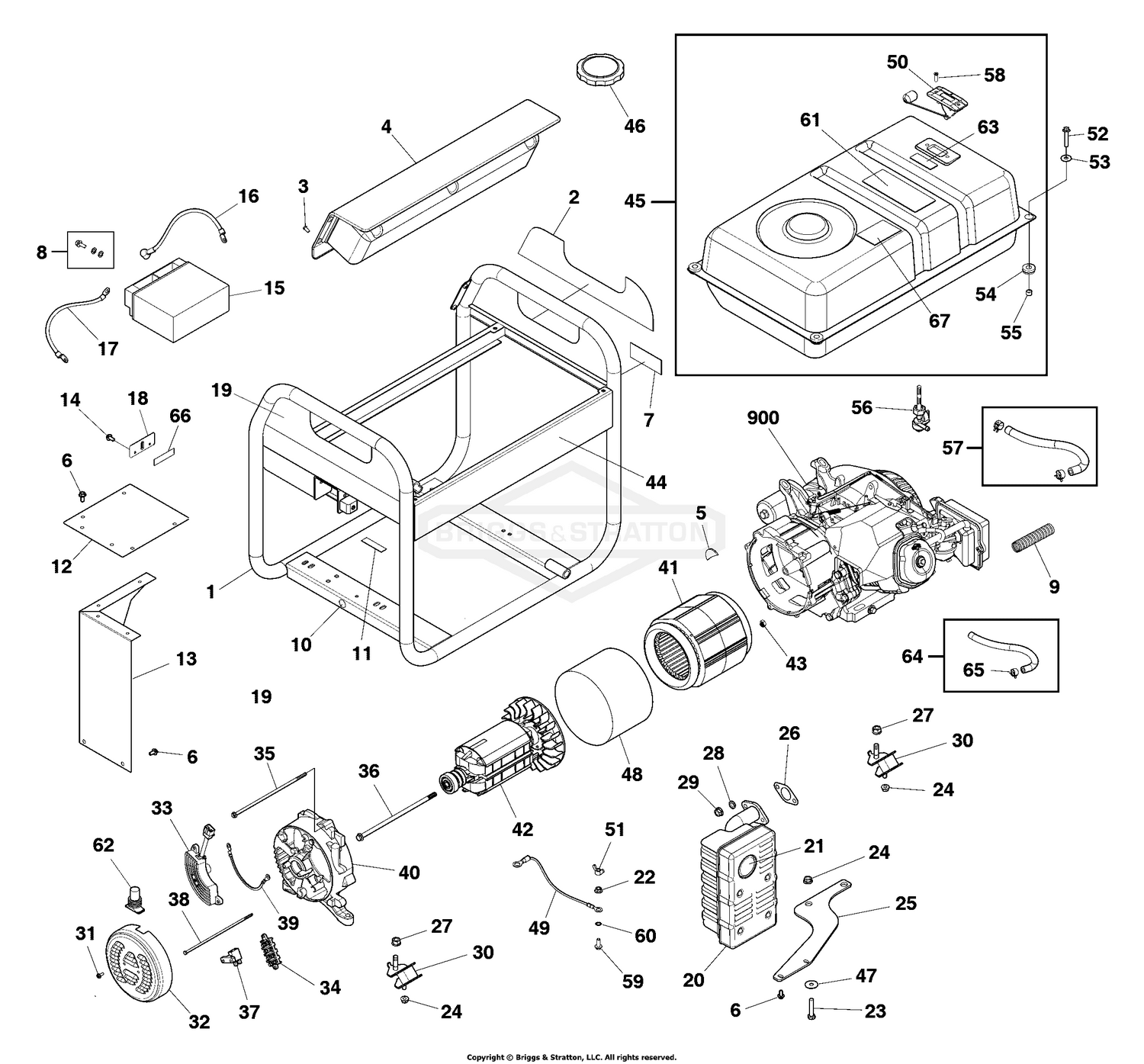

| Ref | Part Number | Description |
|---|
| 2 |
771994 |
DECAL Price: $12.82 |
| 3 |
703804 |
SCREW Price: $3.63 |
| 4 |
700441 |
PANEL-CONTROL Price: $434.59 |
| 5 |
706376 |
COVER-RUBBER Price: $3.38 |
| 6 |
590850 |
SCREW This part replaces 706152. Price: $3.02 |
| 7 |
704142 |
DECAL Price: $11.12 |
| 8 |
315546GS |
KIT, Hardware, Battery Terminal Price: $8.05 |
| 9 |
706534 |
BELLOWS Price: $31.79 |
| 10 |
704331 |
DECAL Price: $8.79 |
| 11 |
706535 |
PAD-RUBBER Price: $3.69 |
| 12 |
312020GS |
HEATSHIELD Price: $31.26 |
| 13 |
312019GS |
HEATSHIELD Price: $51.93 |
| 14 |
209775GS |
BOLT Price: $4.07 |
| 15 |
316345GS |
BATTERY This part replaces 316435GS. Price: $229.66 |
| 16 |
312014GS |
CABLE-BATTRY, RED Price: $18.93 |
| 17 |
312026GS |
CABLE-BTTRY, BLACK Price: $17.32 |
| 18 |
311983GS |
PLATE-BATTERY Price: $8.15 |
| 19 |
771992 |
DECAL Price: $12.82 |
| 20 |
192569GS |
MUFFLER Price: $148.05 |
| 21 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 22 |
52857GS |
NUT-M6 FLANGE Price: $3.06 |
| 23 |
57821GS |
CAPSCREW, Hex Head, M8-1.25 x 40 Price: $1.60 |
| 24 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 25 |
319457GS |
BRACKET, Muffler Price: $27.81 |
| 26 |
797770 |
GASKET, Exhaust This part replaces 813085GS. Price: $5.72 |
| 27 |
52859GS |
NUT, Lock Price: $1.95 |
| 28 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 22237GS. Price: $2.95 |
| 29 |
45771GS |
NUT, M8 - 1.25 Price: $5.88 |
| 30 |
319451GS |
MOUNT-VIBRATION Price: $10.58 |
| 31 |
700308 |
SCREW Price: $2.75 |
| 32 |
312870GS |
COVER, Rear Bearing Price: $11.55 |
| 33 |
312871GS |
REGULATOR-VOLTAGE Price: $55.57 |
| 34 |
312921GS |
BLOCK, Junction Price: $8.05 |
| 35 |
703909 |
BOLT Price: $5.09 |
| 36 |
703910 |
BOLT Price: $7.93 |
| 37 |
312904GS |
BRUSH ASSEMBLY Price: $12.92 |
| 38 |
703908 |
BOLT Price: $6.22 |
| 39 |
706150 |
WIRE Price: $5.93 |
| 40 |
312866GS |
SUPPORT, Bearing Price: $71.44 |
| 41 |
700307 |
STATOR Price: $185.49 |
| 42 |
700336 |
ROTOR Price: $185.49 |
| 43 |
312916GS |
NUT Price: $2.75 |
| 44 |
771990 |
DECAL Price: Call Us |
| 45 |
771993 |
TANK-FUEL Price: $227.89 |
| 46 |
704655 |
CAP-FUEL Price: $14.72 |
| 47 |
B2495GS |
WSHR, 25.4 X 8.45 X 1.4 Price: $2.49 |
| 48 |
703911 |
BAND-STATOR Price: $38.55 |
| 49 |
706165 |
WIRE Price: $7.09 |
| 50 |
704183 |
GAUGE-FUEL Price: $15.07 |
| 51 |
87680GS |
NUT, M6 - 1.0 Wing Price: $6.57 |
| 52 |
703805 |
SCREW Price: $8.89 |
| 53 |
312005GS |
WASHER Price: $3.09 |
| 54 |
189134GS |
GROMMET, Rubber Price: $3.73 |
| 55 |
189137GS |
SPACER Price: $3.59 |
| 56 |
209417GS |
VALVE, Fuel Price: $7.75 |
| 57 |
791745 |
LINE, Fuel Price: $8.97 |
| 58 |
314440GS |
SCREW Price: $3.61 |
| 59 |
590703 |
SCREW This part replaces 706166. Price: $2.79 |
| 60 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 61 |
700481 |
DECAL Price: $10.06 |
| 62 |
207879GS |
BOOT, Rubber Price: $6.22 |
| 63 |
703264 |
DECAL Price: $15.53 |
| 64 |
315017GS |
HOSE, Vapor (cut to fit) Price: $26.64 |
| 65 |
314955GS |
CLAMP Price: $4.19 |
| 66 |
706377 |
PAD-RUBBER Price: $3.49 |
| 67 |
704388 |
DECAL Price: $16.10 |
