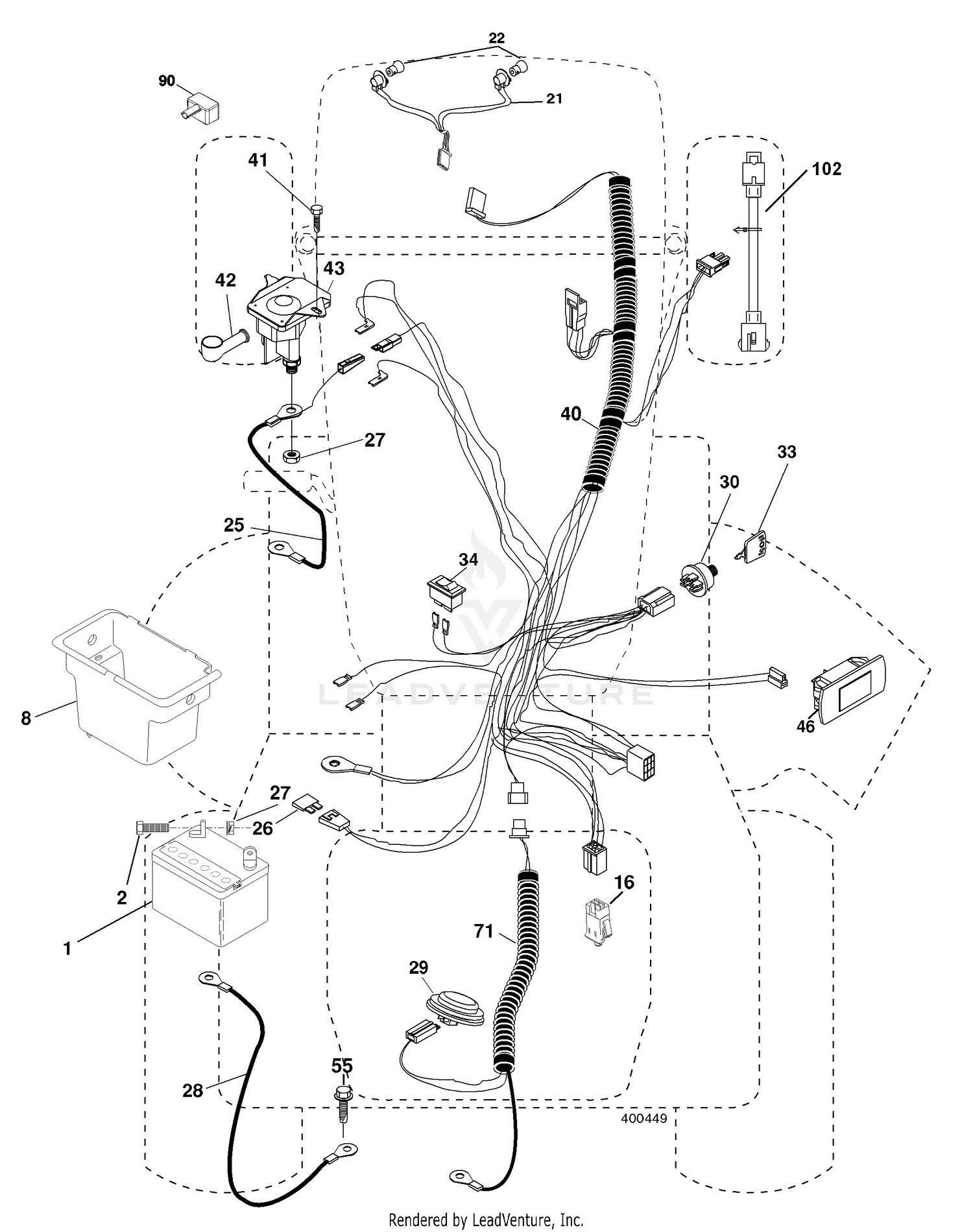

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 1 |
67-4630 |
ALTERNATOR ASSEMBLY Price: $550.36 |
| 2 |
67-4670 |
NUT Price: $1.65 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
67-3260 |
WASHER Price: $1.58 |
| 4 |
42-9660 |
WASHER Price: $2.50 |
| 5 |
43-0370 |
DISCONTINUED Price: Call Us |
| 6 |
67-4870 |
REAR BEARING Price: $46.57 |
| 7 |
67-4860 |
DISCONTINUED Price: Call Us |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 8 |
67-4930 |
DISCONTINUED Price: Call Us |
| 9 |
67-4890 |
REAR BRACKET ASSEMBLY Price: $997.52 |
| 10 |
67-4880 |
DISCONTINUED Price: Call Us |
| 11 |
67-4900 |
DISCONTINUED Price: Call Us |
| 12 |
67-4910 |
REGULATOR ASSEMBLY Price: $649.68 |
| 13 |
67-4920 |
BRUSH Price: $19.03 |
| 14 |
43-0510 |
BRUSH SPRNG Price: $6.49 |
| 15 |
67-4830 |
FRONT BRACKET ASSEMBLY Price: $283.39 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
67-4810 |
PULLEY SET Price: $48.24 |
| 17 |
51-7850 |
NUT SET This part replaces 43-1920. Price: $1.46 |
| 18 |
67-4840 |
SCREW SET Price: $5.18 |
| 19 |
67-4850 |
FRONT BEARING Price: $24.45 |
| 20 |
67-4820 |
BOLT SET Price: $9.73 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 21 |
67-4620 |
SPACER Price: $17.73 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
67-4640 |
BOLT Price: $9.56 |
| 23 |
75-4940 |
BRACE Price: $20.68 |
| 24 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 25 |
54-8660 |
WASHER Price: $2.23 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
67-4660 |
BOLT-FLANGE Price: $2.64 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $17.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $32.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532400725. Price: $4.99 |
