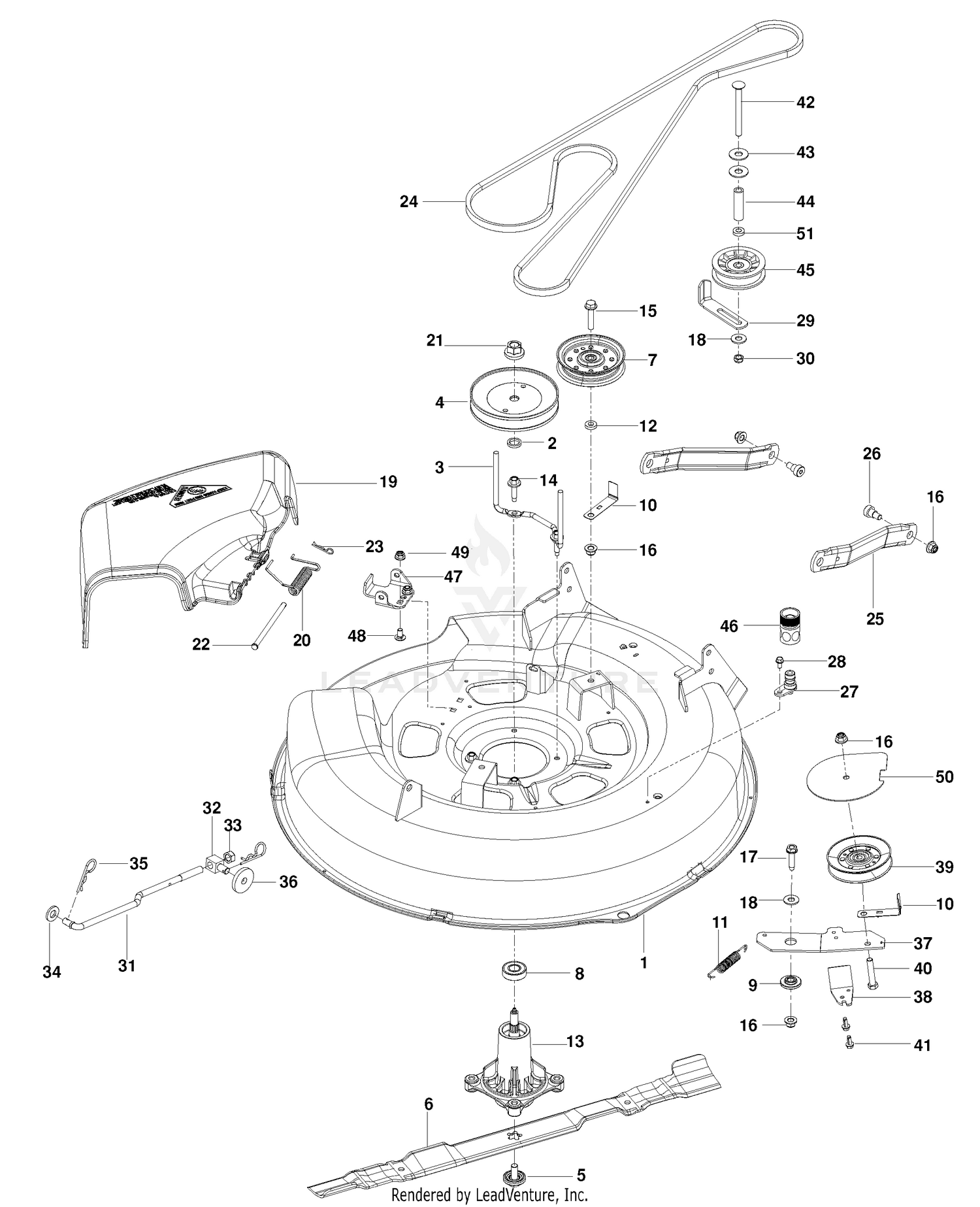

| Ref | Part Number | Description |
|---|
| 1 |
574453501 |
DECK.SVC.W/DECALS.30.RZ.ORNG This part replaces 527290801. Price: $499.99 |
| 1 |
82-9250 |
STUD-THREADED Price: $10.57 |
| 2 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99 |
| 2 |
60-2000 |
PIN Price: $1.13 |
| 3 |
532400140 |
BELT KEEPER.MANDREL.38"COATED Price: $39.99 |
| 3 |
60-1750-03 |
LEVER-LATCHING, RH This part replaces 60-1750. Price: $94.34 |
| 4 |
532199791 |
PULLEY MANDREL 5.0" Price: $22.99 |
| 4 |
60-1990 |
BUSHING Price: $14.57 |
| 5 |
47-7010 |
BUSHING-RUBBER Price: $122.81 |
| 5 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 6 |
532419274 |
BLADE.MOWER.BAGGING.30" Price: $29.99 |
| 6 |
60-1820 |
SHAFT-PIVOT, LATCH Price: $134.64 |
| 7 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 7 |
74-2920-03 |
CARRIER-FRONT This part replaces 60-0070. Price: $2,618.36 |
| 8 |
539112050 |
BEARING, BALL Price: $5.99 |
| 8 |
60-1780-03 |
LEVER-LATCHING, LH This part replaces 60-1780. Price: $94.34 |
| 9 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 9 |
82-9370 |
PAD-STEP, FRONT Price: $19.69 |
| 10 |
529311701 |
KEEPER, BELT, BLACK Price: $4.99 |
| 10 |
60-1270 |
PIN Price: $8.73 |
| 11 |
532401872 |
SPRING RETURN Price: $4.99 |
| 11 |
60-0670 |
SPRING Price: $19.50 |
| 12 |
51-2060 |
WASHER Price: $0.68 |
| 12 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
| 13 |
587820301 |
KIT.MANDREL.GREASEABLE.TALL This part replaces 539112057. Price: $49.99 |
| 13 |
82-9360 |
ROD-LATCH Price: $31.36 |
| 14 |
58-2720 |
PIN Price: $49.81 |
| 14 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99 |
| 15 |
539990701 |
BLT 3/8-16X1-3/4 WHIZLK ZN SP Price: $2.99 |
| 15 |
63-4380 |
TOW WARNING DECAL Price: $12.79 |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 17 |
539110025 |
BOLT 3/8-16 X 1 1/2 ZINC CLEAR Price: $3.99 |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 18 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 18 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 19 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 19 |
532417344 |
SHIELD.DEFLECT.MWR.30S.BLACK Price: $37.99 |
| 20 |
539107609 |
TORSION SPRING Price: $4.99 |
| 20 |
60-0190 |
STRIP Price: $36.98 |
| 21 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 22 |
595935501 |
Pins This part replaces 539110736. Price: $2.99 |
| 23 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 24 |
574173002 |
BELT, 100" EL Price: $54.99 |
| 25 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 26 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 27 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 28 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 29 |
525851801 |
GUIDE, BELT Price: $11.99 |
| 30 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 31 |
581506902 |
Links This part replaces 532195740. Price: $9.99 |
| 32 |
539114789 |
SWIVEL Price: $11.99 |
| 33 |
573975201 |
NUT, 7/16-20 HEX NYLOC ZC Price: $2.99 |
| 34 |
595086801 |
Washers This part replaces 539990250. Price: $2.99 |
| 35 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 36 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 37 |
574172804 |
ARM, IDLER 30, BLK This part replaces 574172802. Price: $29.99 |
| 38 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 529311801. Price: $14.99 |
| 39 |
593787801 |
PULLEYS This part replaces 532173902. Price: $27.99 |
| 40 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 41 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $3.99 |
| 42 |
525848601 |
RHSNB 3/8-16 X 4 GR5 ZD Price: $4.99 |
| 43 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 44 |
525848801 |
SPACER .39 ID X 2.25 Price: $6.99 |
| 45 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 46 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 47 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 48 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 49 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 50 |
573970402 |
COVER, PULLEY, BLACK Price: $17.99 |
