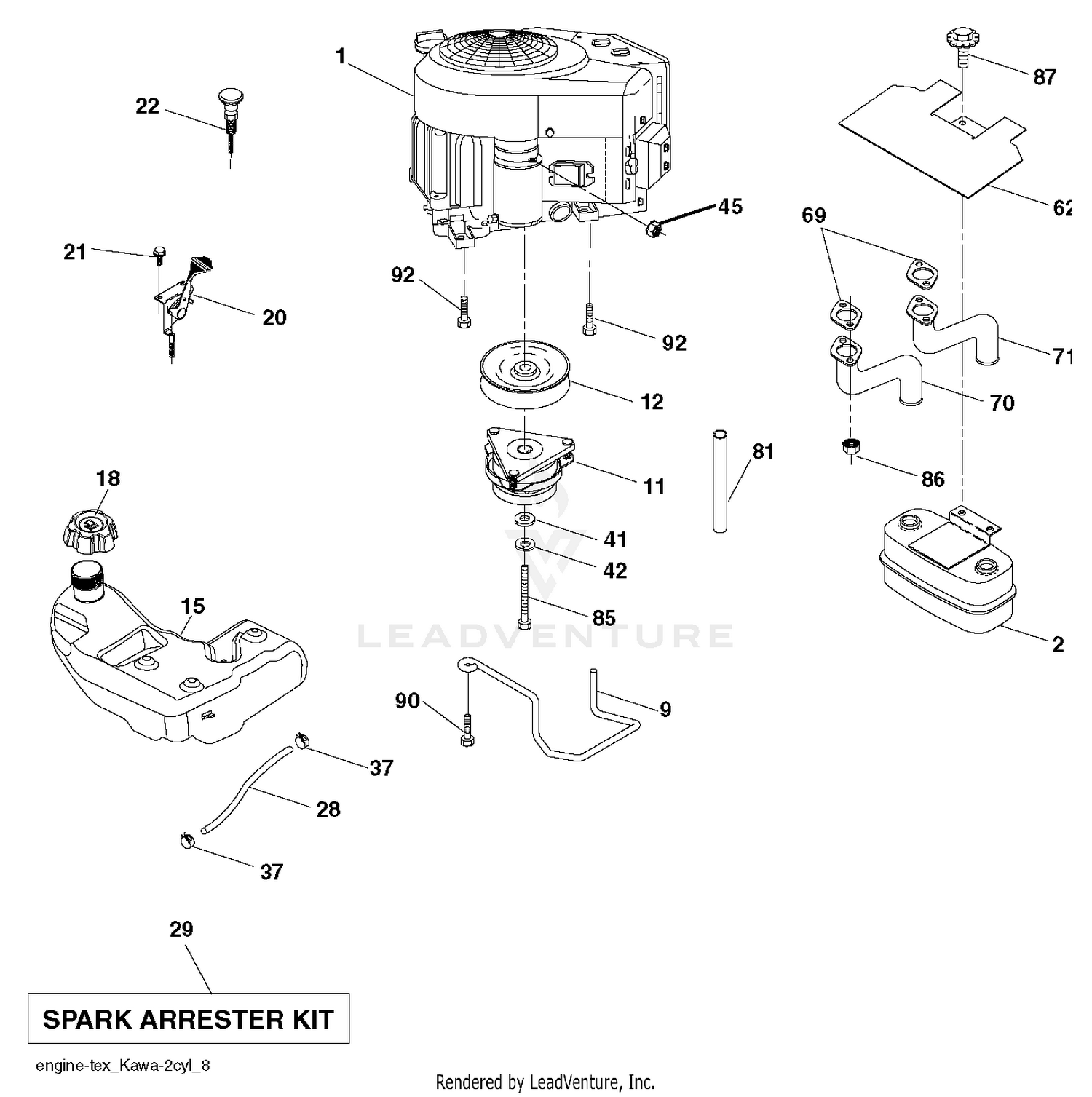

| Ref | Part Number | Description |
|---|
| 1 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
13-6070 |
BUSHING Price: $231.61 |
| 4 |
13-6030 |
SHEAVE Price: $456.80 |
| 5 |
13-2240 |
KEY-SQUARE Price: $14.31 |
| 6 |
13-3790 |
FAN SHAFT Price: $671.39 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
3217-7 |
NUT-HEX Price: $0.28 |
| 9 |
13-2810 |
SQUARE KEY Price: $31.13 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
13-3350-01 |
MOUNTING BRKT This part replaces 13-3350. Price: $59.51 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 12 |
13-3850-01 |
BOOT-BLOWER This part replaces 13-3850. Price: $344.08 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 13 |
121-2839 |
DECAL-CAUTION This part replaces 13-6410. Price: $25.19 |
| 14 |
321-4 |
SCREW-HH Price: $0.99 |
| 15 |
323-7 |
SCREW-HH Price: $0.65 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 16 |
3244-14 |
SCREW-SET, SQH Price: $7.19 |
| 17 |
3218-5 |
NUT-JAM Price: $0.27 |
| 18 |
117-4979 |
DECAL-WARNING This part replaces 92-8309. Price: $12.04 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532439645. Price: $14.99 |
| 19 |
121-2843 |
DECAL-WARNING This part replaces 93-7307. Price: $21.34 |
| 20 |
121-2842 |
DECAL-INSTRUCTION This part replaces 93-4041. Price: $31.63 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
13-3420-03 |
FAN ASM This part replaces 13-3420. Price: $2,196.74 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
325-6 |
SCREW-HH Price: $1.42 |
| 25 |
56-6220 |
BEARING Price: $122.98 |
| 27 |
32153-5 |
NUT-HEX Price: $1.59 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
13-1420-01 |
COVER-INSPECTION This part replaces 13-1420. Price: $31.70 |
| 31 |
32103-12 |
NUT-WING Price: $1.15 |
| 32 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 33 |
119-6263 |
BLOWER AND THROAT ASM This part replaces 13-6280. Price: $7,479.09 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
13-6390-01 |
HANDLE-FLAP This part replaces 13-6390. Price: $134.01 |
| 36 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
13-6360 |
ROD-LIFT, FLAP Price: $118.60 |
| 39 |
3218-6 |
NUT-JAM Price: $0.61 |
| 40 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 41 |
323-9 |
SCREW-HH Price: $1.29 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
321-3 |
SCREW-HH Price: $0.28 |
| 44 |
13-4760 |
DISCONTINUED Price: Call Us |
| 45 |
13-3130 |
END-FLAP Price: $26.55 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 46 |
321-5 |
SCREW-HH Price: $0.22 |
| 47 |
13-4700 |
LOWER FLAP ASM Price: $1,182.39 |
| 48 |
13-4560-03 |
WEIGHT-FLAP This part replaces 13-4560. Price: $25.30 |
| 49 |
321-8 |
SCREW-HH Price: $0.34 |
| 50 |
13-1390-01 |
RETAINER-FLAP This part replaces 13-1390. Price: $96.90 |
| 51 |
3217-5 |
NUT-HEX Price: $0.25 |
| 52 |
13-6090-01 |
SIDE GUARD WA This part replaces 13-6090. Price: $157.49 |
| 53 |
321-4 |
SCREW-HH Price: $0.99 |
| 54 |
322-1 |
SCREW-HH Price: $0.22 |
| 55 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 56 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 57 |
13-4800-01 |
BELT GUARD WA This part replaces 13-4800. Price: $1,224.67 |
| 58 |
32104-109 |
SCREW-HWH Price: $0.87 |
| 59 |
13-2640 |
V-BELT, ENGINE FAN Price: $355.29 |
| 60 |
325-7 |
SCREW-HH Price: $1.53 |
| 61 |
93-4020-01 |
COVER-INSPECTION This part replaces 93-4020. Price: $28.77 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
