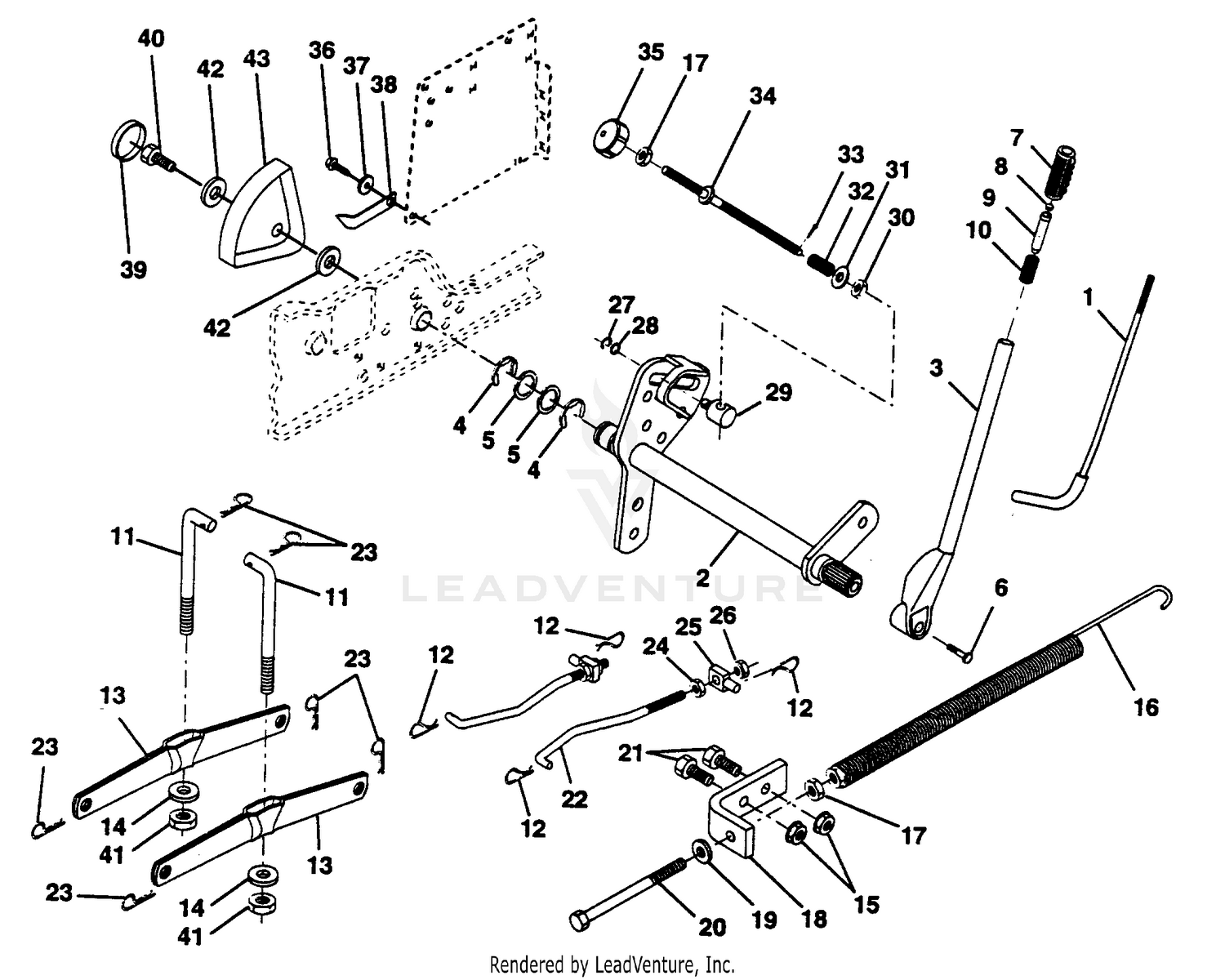

| Ref | Part Number | Description |
|---|
| 1 |
5-1756 |
DISCONTINUED Price: Call Us |
| 1 |
532121006 |
Rod Asm., Lever (AYP part number) Price: $19.99 |
| 2 |
5-1755 |
DISCONTINUED Price: Call Us |
| 2 |
532192468 |
KIT.SHAFT.ASM.LIFT.RH.VGT This part replaces 532145542. Price: $129.99 |
| 3 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 3 |
532121002 |
Lever Asm., Lift Rh (AYP part number) Price: $74.99 |
| 4 |
323-5 |
SCREW-HH Price: $0.41 |
| 4 |
812000022 |
E-Ring Truarc #5133-87 (AYP part number) Price: $3.99 |
| 5 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 5 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $3.99 |
| 6 |
251-165 |
BEARING-BALL Price: $104.65 |
| 6 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874780624. Price: $3.99 |
| 7 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
532109413 |
Grip, Handle Bicycle (AYP part number) Price: $2.99 |
| 8 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
287-5 |
DISCONTINUED Price: Call Us |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
5-1743 |
DISCONTINUED Price: Call Us |
| 10 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 11 |
3220-7 |
NUT-JAM Price: $4.09 |
| 11 |
532145543 |
Link Lift (AYP part number) Price: $8.99 |
| 12 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 13 |
5-1727 |
DISCONTINUED Price: Call Us |
| 13 |
532139868 |
Arm, Suspension Vgt (AYP part number) Price: $11.99 |
| 14 |
3211-17 |
SCREW-HH Price: Call Us |
| 14 |
532169865 |
BEARING.PIVOT.LIFT This part replaces 532140302. Price: $3.99 |
| 15 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 15 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 16 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 16 |
532124687 |
Spring Asm., Assist Lift (AYP part number) Price: $64.99 |
| 17 |
5-1747 |
SPRING-ADJUSTMENT Price: $5.76 |
| 17 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 18 |
5-1744 |
DISCONTINUED Price: Call Us |
| 18 |
532143363 |
Bracket, Spring Assist (AYP part number) Price: $3.99 |
| 19 |
5-1746 |
DISCONTINUED Price: Call Us |
| 19 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 20 |
5-1730 |
DISCONTINUED Price: Call Us |
| 20 |
532005328 |
Bolt, Adjust Spring Assist (AYP part number) Price: $2.99 |
| 21 |
59-9740 |
FLEX DRAW LATCH ASM This part replaces 2-4939. Price: $36.89 |
| 21 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 22 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 22 |
532127218 |
Link, Front (AYP part number) Price: $9.99 |
| 23 |
3219-3 |
NUT-HEX Price: $0.34 |
| 23 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 24 |
5-1752 |
DISCONTINUED Price: Call Us |
| 24 |
873350800 |
Nut, Jam Hex 1/2-13 Unc (AYP part number) Price: $1.99 |
| 25 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 25 |
532175689 |
TRUNNION This part replaces 532130171. Price: $2.99 |
| 26 |
5-1751 |
DISCONTINUED Price: Call Us |
| 26 |
539101331 |
NUT 1/2-13 HEX NYLOC ZD This part replaces 873800800. Price: $1.99 |
| 27 |
271-10 |
DISCONTINUED Price: Call Us |
| 27 |
812000037 |
Ring, Klip #T5304-37 (AYP part number) Price: $3.99 |
| 28 |
3257-14 |
KEY Price: $6.19 |
| 28 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. (AYP part number) Price: Call Us |
| 29 |
3-4805 |
DISCONTINUED Price: Call Us |
| 29 |
532110810 |
Trunnion, Dp Stop Dbl Thds Plt Price: $14.99 |
| 30 |
3-4751 |
DISCONTINUED Price: Call Us |
| 30 |
532110807 |
Nut, Special (AYP part number) Price: $3.99 |
| 31 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 31 |
819131016 |
Washer 13/32 x 5/8 x 16 Ga. (AYP part number) Price: $3.99 |
| 32 |
22-1080 |
DISCONTINUED Price: Call Us |
| 32 |
532137150 |
Spring, Compression Inf Hgt (AYP part number) Price: $3.99 |
| 33 |
3258-53 |
Screw Price: Call Us |
| 33 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) Price: $1.99 |
| 34 |
5-1758 |
DISCONTINUED Price: Call Us |
| 34 |
532137167 |
Rod, Adj Lift (AYP part number) Price: $4.99 |
| 35 |
5-1757 |
DISCONTINUED Price: Call Us |
| 35 |
532138057 |
Knob, Inf 3/8-16 Unc (AYP part number) Price: $5.99 |
| 36 |
3220-1 |
NUT-JAM Price: $0.99 |
| 36 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 37 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 37 |
532120529 |
Washer, Nylon .44 x .75 x .032 (AYP part number) Price: $2.99 |
| 38 |
236-1 |
DISCONTINUED Price: Call Us |
| 38 |
532123933 |
HEIGHT INDICATOR PNTR This part replaces 532138346. Price: $3.99 |
| 39 |
5-1742 |
DISCONTINUED Price: Call Us |
| 39 |
532123935 |
Plug, Hole Blk. 1.485/1.515 Dia. (AYP part number) Price: $3.99 |
| 40 |
3217-6 |
NUT-HEX Price: $1.19 |
| 40 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 41 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 41 |
873540600 |
Nut, Crownlock 3/8-24 (AYP part number) Price: $1.99 |
| 42 |
5-1745 |
DISCONTINUED Price: Call Us |
| 42 |
819112410 |
Washer 11/32 x 1-1/2 x 10 Ga. (AYP part number) Price: $3.99 |
| 43 |
5-1741 |
DISCONTINUED Price: Call Us |
| 44 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 45 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 46 |
321-5 |
SCREW-HH Price: $0.22 |
| 47 |
3219-2 |
NUT-HEX Price: $0.37 |
| 48 |
3253-4 |
WASHER-LOCK Price: $0.25 |
