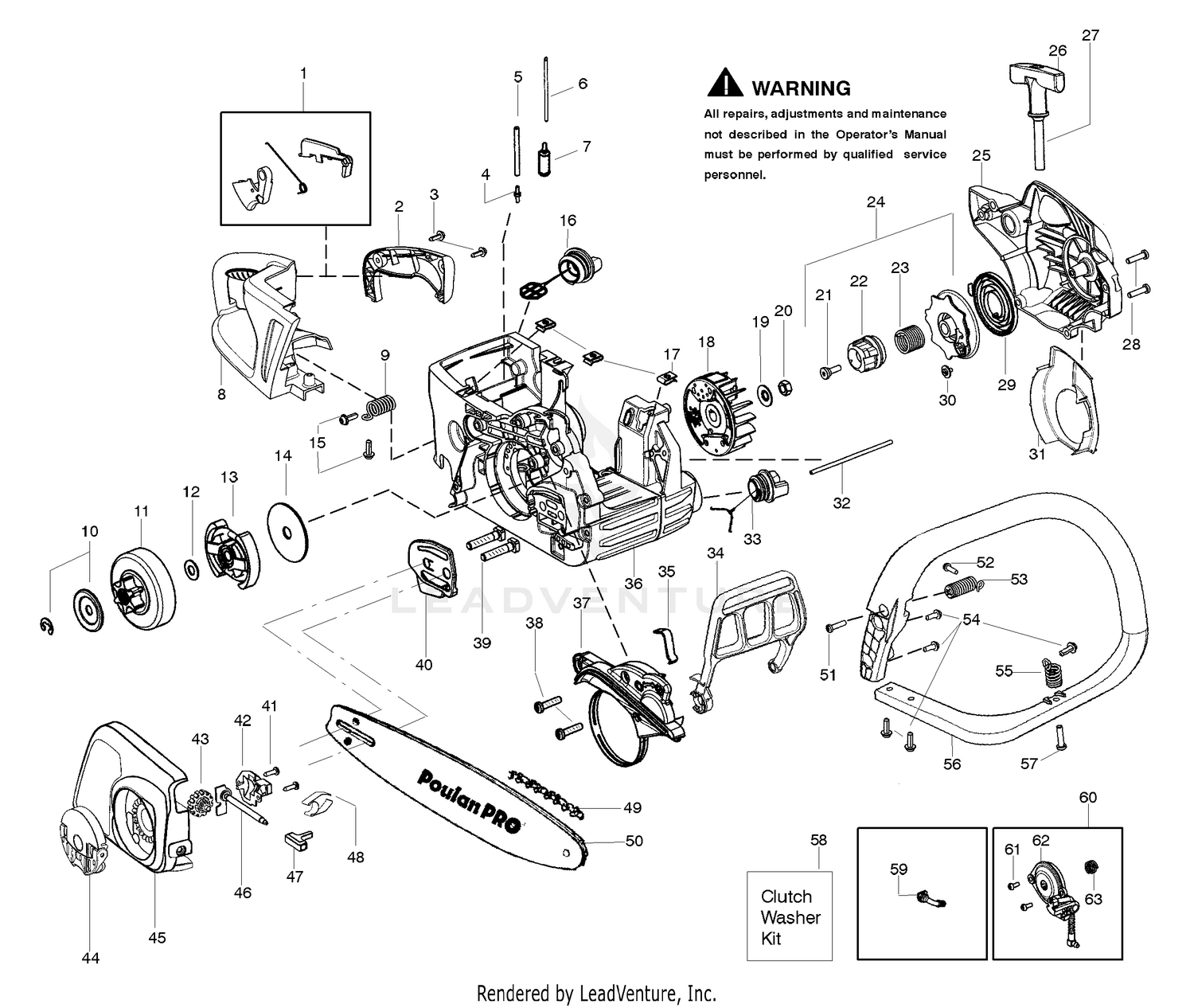

Handle, Chassis & Bar Assembly
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530071927 | Kit-Trigger/Lockout Price: $5.99 |
| 2 | 545011903 | Cover-Handle Price: $4.99 |
| 3 | 120-0404 | BRACKET-HIGH HOC (LH) Price: $71.73 |
| 3 | 530016433 | Screw Price: $1.99 |
| 4 | 120-0405 | BRACKET-HIGH HOC (RH) Price: $71.73 |
| 4 | 530023877 | Fitting-Fuel line Price: $1.99 |
| 5 | 119-0626 | SHIM-ROLLER Price: $3.23 |
| 6 | 106-9758 | SCREW-CARR Price: $2.99 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 530095646 | Assy-Fuel Pickup This part replaces 530095649. Price: $2.99 |
| 8 | 112-7451 | SCREW-TAP Price: $2.17 |
| 8 | 545012103 | Handle-Rear Price: $12.99 |
| 9 | 48-9220 | WASHER-PLAIN Price: $0.87 |
| 9 | 530059475 | Spring-Rear Isolator Price: $5.99 |
| 10 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 530071945 | Kit-Clutch Washer Price: $3.99 |
| 11 | 322-16 | SCREW-HH Price: $3.39 |
| 11 | 530057905 | Assy-Clutch Drum 3/8" Price: $14.99 |
| 12 | 530071945 | Kit-Clutch Washer Price: $3.99 |
| 13 | 530057907 | Assy-Clutch Price: $6.99 |
| 14 | 530016419 | Washer-Large Clutch Price: $1.99 |
| 15 | 530015906 | Screw Price: $1.99 |
| 16 | 580940901 | FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 17 | 530015922 | Nut-"U" type speed Price: $1.99 |
| 18 | 545016308 | Assy-Flywheel Price: $24.99 |
| 19 | 530015127 | Washer-Flywheel Price: $1.99 |
| 20 | 530016134 | Nut-Flywheel Price: $1.99 |
| 21 | 530021179 | Screw-Shoulder Price: $1.99 |
| 22 | 530059677 | Starter Hub-EPS Price: $5.99 |
| 23 | 530021180 | Spring-EPS Price: $1.99 |
| 25 | 545011703 | Housing-Fan Price: $14.99 |
| 26 | 530056402 | Handle-Starter Price: $2.99 |
| 27 | 530069232 | Kit-Rope Price: $3.99 |
| 28 | 530016432 | Screw Price: $1.99 |
| 29 | 545008013 | Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 30 | 530016080 | Screw Price: $1.99 |
| 31 | 530057868 | Baffle Price: $5.99 |
| 32 | 530058786 | Assy-Oil Vent Price: $2.99 |
| 33 | 530057236 | Assy-Oil Cap w/ret. Price: $5.99 |
| 34 | 530057880 | Handguard Price: $27.99 |
| 35 | 530016416 | Spring-Handguard Price: $1.99 |
| 37 | 530071893 | Kit-Chainbrake Price: $17.99 |
| 38 | 530016432 | Screw Price: $1.99 |
| 39 | 530016133 | Bolt-Bar Price: $1.99 |
| 40 | 530057910 | Plate-Bar Price: $1.99 |
| 41 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 42 | 530059999 | Cover-Gearbox Price: $2.99 |
| 43 | 525884202 | ASSY THUMB WHEEL BLACK This part replaces 545039501. Price: $1.99 |
| 44 | 545040603 | Assy-Knob Price: $11.99 |
| 45 | 545027703 | Clutch Cover Price: $11.99 |
| 46 | 530150000 | Assy-Adjust Screw Price: $4.99 |
| 47 | 545157401 | Pin-Bar Adjust Price: $4.99 |
| 48 | 545147001 | Spring - Clip Price: $1.99 |
| 49 | 581562301 | P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051338. Price: $19.99 |
| 50 | 530044693 | Bar - 18" Price: $17.27 |
| 51 | 530016432 | Screw Price: $1.99 |
| 52 | 530016443 | Screw Price: $1.99 |
| 53 | 530059480 | Assy-Rear Iso. Spring Price: $3.99 |
| 54 | 530015906 | Screw Price: $1.99 |
| 55 | 530059479 | Assy-Front Iso. Spring Price: $6.99 |
| 56 | 530057878 | Handle-Front Price: $14.99 |
| 57 | 530016432 | Screw Price: $1.99 |
| 59 | 530057924 | Assy-Oil Pick Up Price: $2.99 |
| 61 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 62 | 581071401 | OIL PUMP ASSY SAS This part replaces 530057931. Price: $5.99 |
