| Ref | Part Number | Description |
|---|
| 1 |
325-4 |
SCREW-HH Price: $0.95 |
| 2 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 3 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 4 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010. Price: $199.32 |
| 5 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 6 |
282-4 |
SHACKLE Price: $32.98 |
| 7 |
99-5621 |
GUIDE-HOSE Price: $34.45 |
| 8 |
32121-27 |
PIN-ROLL Price: $1.56 |
| 10 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 11 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 12 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 13 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 14 |
92-9097 |
SCREW-HS Price: $1.56 |
| 15 |
93-0142 |
BUSHING-STRAIGHT Price: $3.21 |
| 16 |
94-4919-03 |
BRACKET-CLAMP, HOSE Price: $19.76 |
| 18 |
75-4520 |
SPRING-TORSION, RH Price: $25.31 |
| 19 |
75-4530 |
SPRING-TORSION, LH Price: $25.31 |
| 22 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
100-3828 |
DISCONTINUED Price: Call Us |
| 24 |
100-3827 |
LH REAR LIFT ARM ASM Price: $720.05 |
| 25 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 28 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 29 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 30 |
100-3834-03 |
ROD-PIVOT Price: $69.13 |

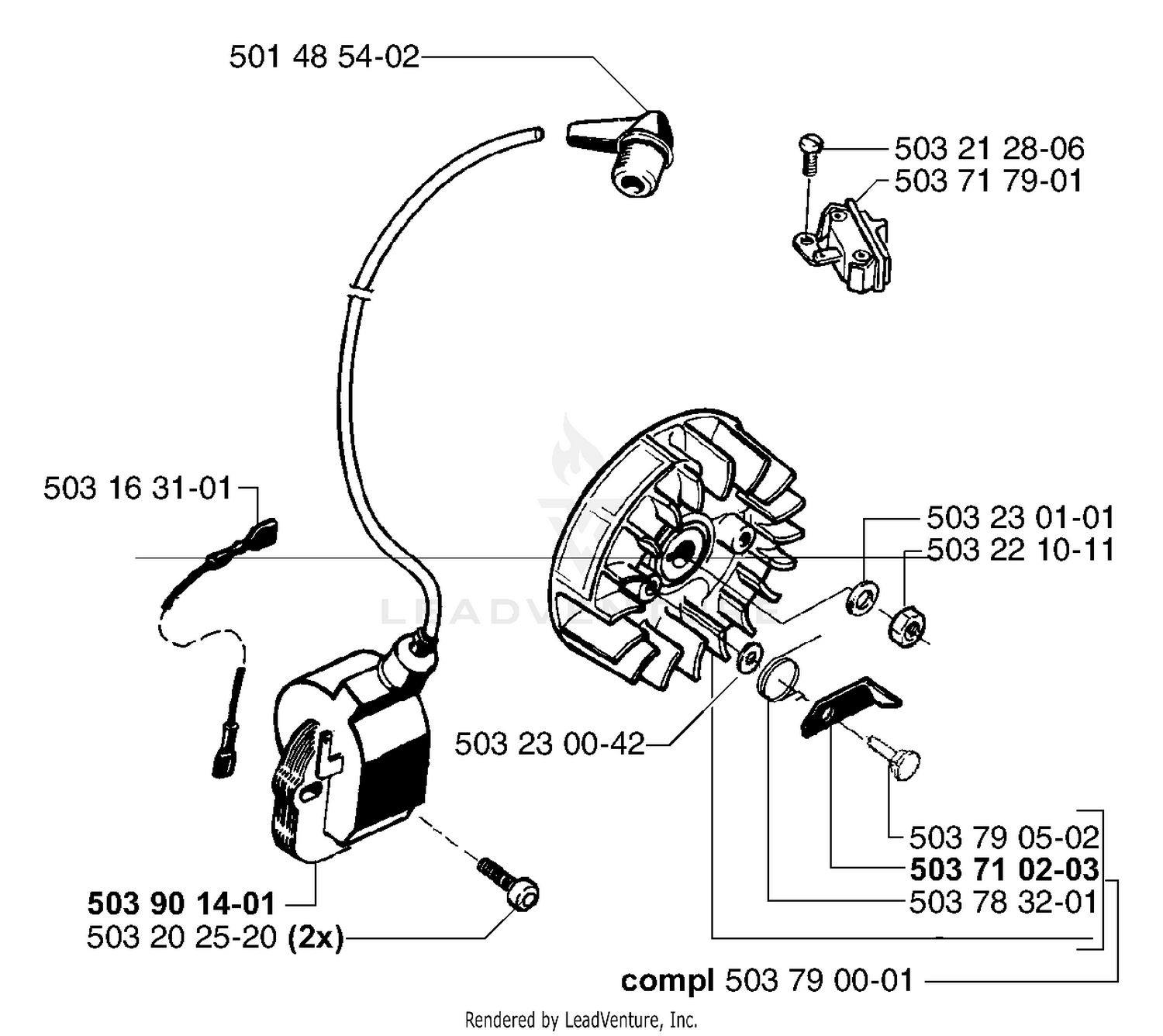

| 501485402 |
501485402 |
SPARK PLUG CONN. KIT Price: $6.99 |
| 503163101 |
503163101 |
CABLE Price: $9.99 |
| 503202520 |
503202520 |
SCREW Price: $2.99 |
| 503212806 |
503212806 |
SCREW Price: $3.99 |
| 503221011 |
503221011 |
NUT M8X1 Price: $3.99 |
| 503230042 |
503230042 |
WASHER Price: $3.99 |
| 503230101 |
503230101 |
WASHER 8.4X16 Price: $3.99 |
| 503710203 |
503710203 |
PAWL Price: $5.99 |
| 503717901 |
503717901 |
SWITCH ON/OFF Price: $12.99 |
| 503783201 |
529271101 |
SPRING This part replaces 503783201. Price: $3.99 |
| 503790001 |
503790001 |
FLYWHEEL Price: $129.99 |
| 503790502 |
503790502 |
RIVET Price: $3.99 |
