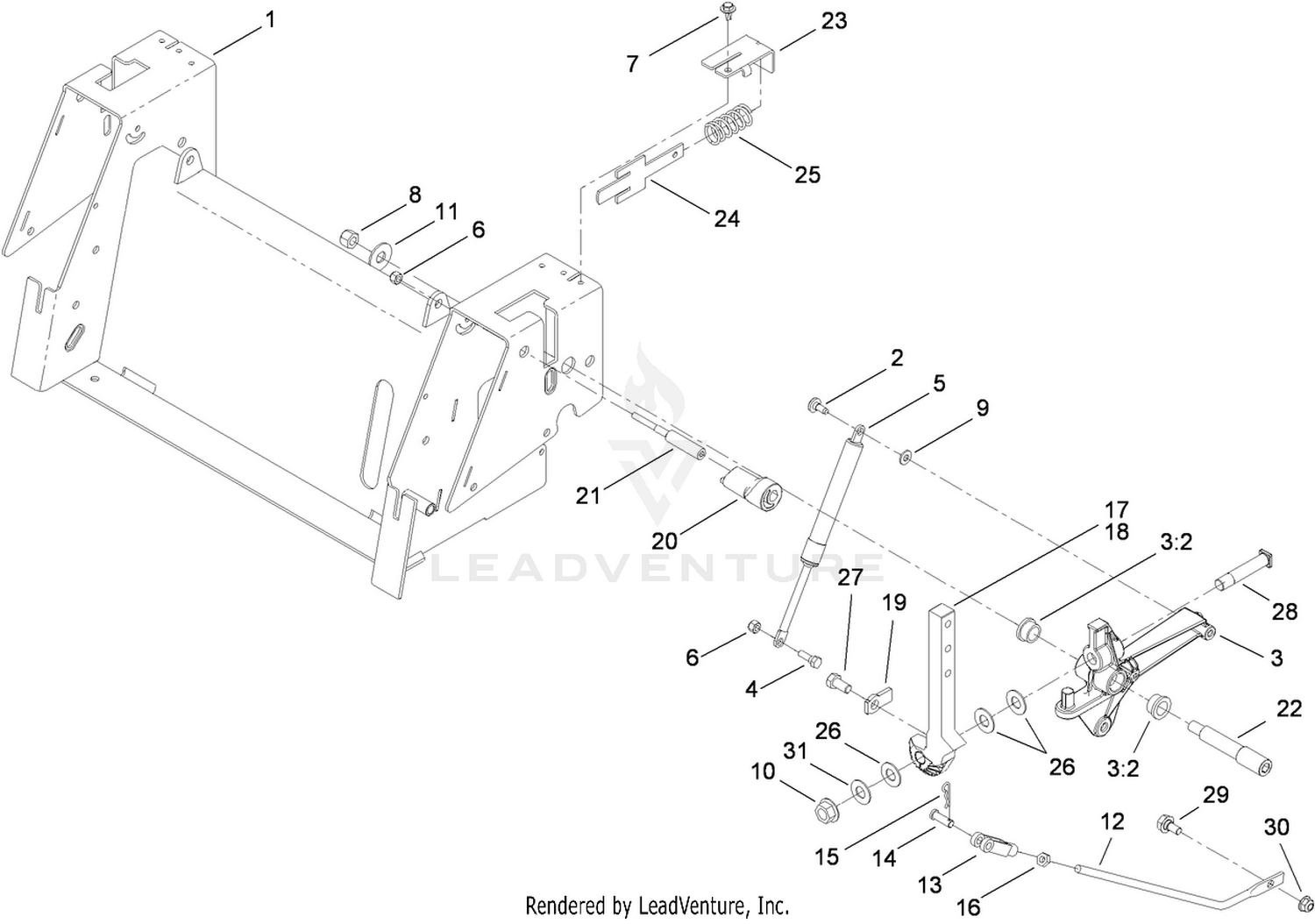

| Ref | Part Number | Description |
|---|
| 1 |
115-2546-03 |
BOX-CONTROL Price: $307.46 |
| 2 |
120-7950 |
SCREW-SHOULDER This part replaces 112-4004. Price: $1.79 |
| 3 |
110-6828 |
ACTIVATOR ARM ASM Price: $38.11 |
| 4 |
106-2214 |
BOLT-SHOULDER Price: $8.17 |
| 5 |
131-4132 |
DAMPER This part replaces 103-2913. Price: $43.77 |
| 6 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 7 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 8 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 9 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 10 |
32128-23 |
NUT-HF Price: $1.51 |
| 11 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 12 |
115-2529 |
LINK-BENT, HYDRO Price: $11.25 |
| 13 |
1-303105 |
YOKE-ADJUSTABLE Price: $11.99 |
| 14 |
1-808280 |
PIN-CLEVIS Price: $1.70 |
| 15 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 16 |
3220-2 |
NUT-JAM Price: $0.50 |
| 17 |
110-6783-05 |
ARM-ACTUATOR, LH This part replaces 110-6783-03. Price: $48.98 |
| 19 |
115-5023 |
TAB-STOP Price: $2.29 |
| 20 |
110-6873 |
ECCENTRIC Price: $3.52 |
| 21 |
110-6874 |
SCREW-ECCENTRIC Price: $6.47 |
| 22 |
110-6875 |
BOLT-SHOULDER Price: $16.65 |
| 23 |
110-6751 |
BRACKET-RETURN Price: $4.34 |
| 24 |
110-6750 |
PLATE-RETURN Price: $4.34 |
| 25 |
110-6752 |
SPRING-COMPRESSION Price: $2.14 |
| 26 |
110-6894 |
WASHER-PIVOT Price: $0.59 |
| 27 |
323-4 |
SCREW-HH Price: $1.02 |
| 28 |
110-6784 |
BOLT-SHOULDER Price: $3.50 |
| 29 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 30 |
104-8300 |
NUT-HF, NI Price: $0.39 |
