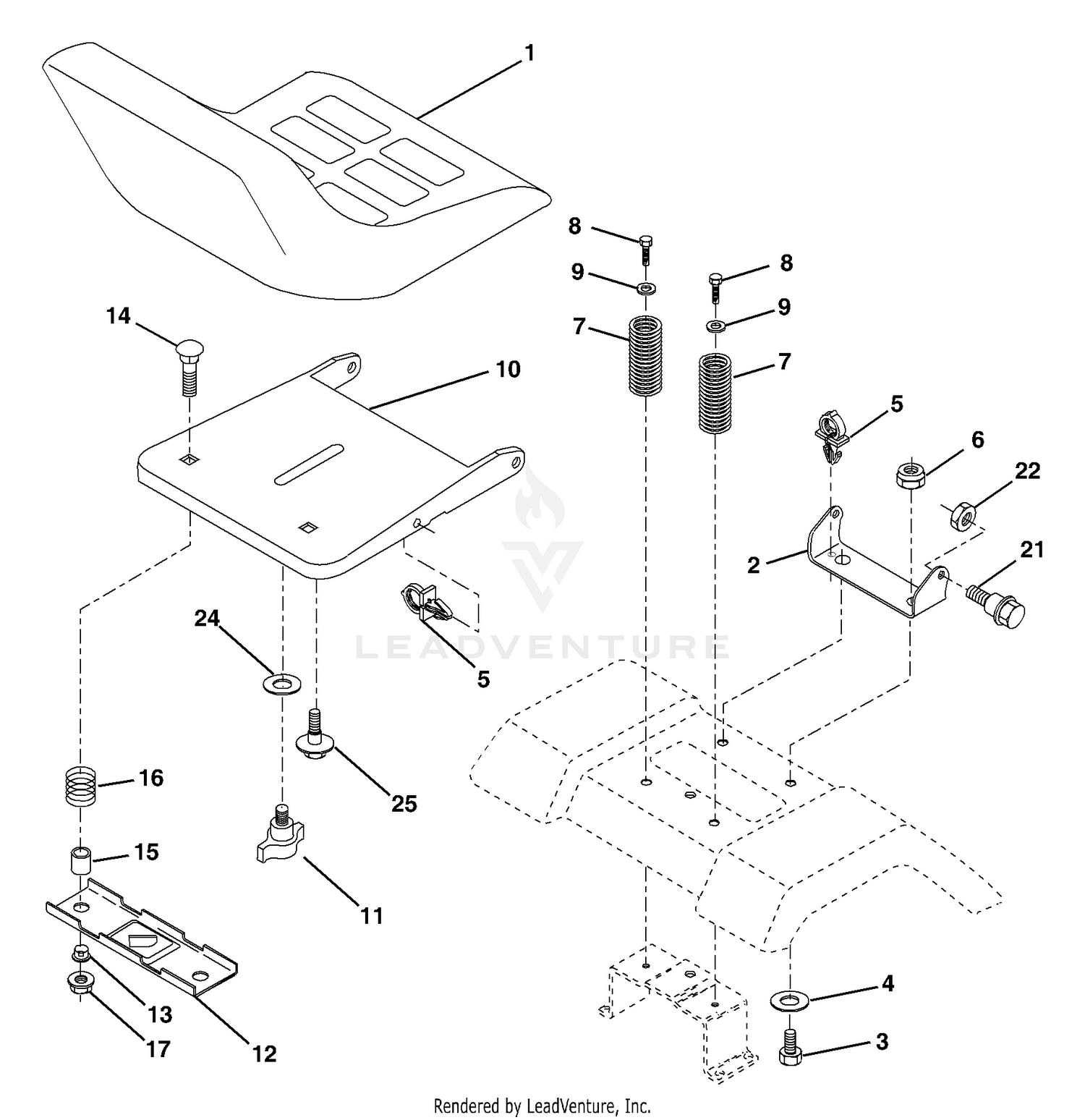

Seat Assembly

Seat Assembly

Parts (42)

RefPart NumberDescription
1 188712 Seat Price: Call Us
1 340-87 FITTING-ELBOW, 45 DEG Price: $18.39
2 140551 Bracket Pivot Seat 8 720 Price: Call Us
2 340-82 FITTING-ELBOW, 90 DEG Price: $20.57
3 2412-34 CLAMP-HOSE Price: $2.14
3 71110616 Bolt Fin Hex 3/8-16 unc x 1 Price: Call Us
4 19131610 Washer 13/32 x 1 x 10 Ga. Price: Call Us
4 83-0910 HOSE-INLET, PUMP Price: $78.97
5 145006 Clip Push-In Price: Call Us
5 3241-6 SCREW-SQH Price: $4.80
6 3296-29 NUT-LOCK, NI Price: $2.09
6 73800600 Nut Hex w/Ins. 3/8-16 unc Price: Call Us
7 124181X Spring Seat Cprsn 2 250 Blk Zi Price: Call Us
7 125-9249 SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15
8 115-4523 COUPLING-RUBBER This part replaces 44-2230. Price: $52.81
8 17000616 Screw 3/8-16 x 1.5 Smgml Price: Call Us
9 19131614 Washer 13/32 x 1 x 14 Ga. Price: Call Us
9 3256-23 WASHER-PLAIN Price: $0.28
10 182493 Pan Seat Price: Call Us
10 322-6 SCREW-HH Price: $0.45
11 166369 Knob Seat Price: Call Us
11 3241-7 SCREW-SQH This part replaces 3241-2. Price: $3.39
12 10-7070 KEY-SQUARE Price: $1.02
12 121246X Bracket Mounting Switch Price: Call Us
13 110-5236 HUB-ENGINE This part replaces 27-1960. Price: $30.97
13 121248X Bushing Snap Blk Nyl 50 Id Price: Call Us
14 27-1970 HUB-PUMP Price: $75.91
14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2 Price: Call Us
15 107-2577 GEAR PUMP KIT - 5 SECTION This part replaces 92-9764. Price: $3,024.03
15 134300 Spacer Split 28x 88 Price: Call Us
16 121250X Spring Cprsn Price: Call Us
16 3253-21 WASHER-LOCK Price: $0.28
17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc Price: Call Us
17 323-8 SCREW-HH Price: $1.20
18 340-105 FITTING-ELBOW, 90 DEG Price: $39.67
19 322-4 SCREW-HH Price: $0.35
20 32128-20 NUT-HF Price: $0.99
21 171852 Bolt Shoulder 5/16-18 unc Price: Call Us
21 83-1940-01 DISCONTINUED Price: Call Us
22 322-1 SCREW-HH Price: $0.22
22 73800500 Nut Hex Lock W/Ins 5/16-18 Price: Call Us
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us
