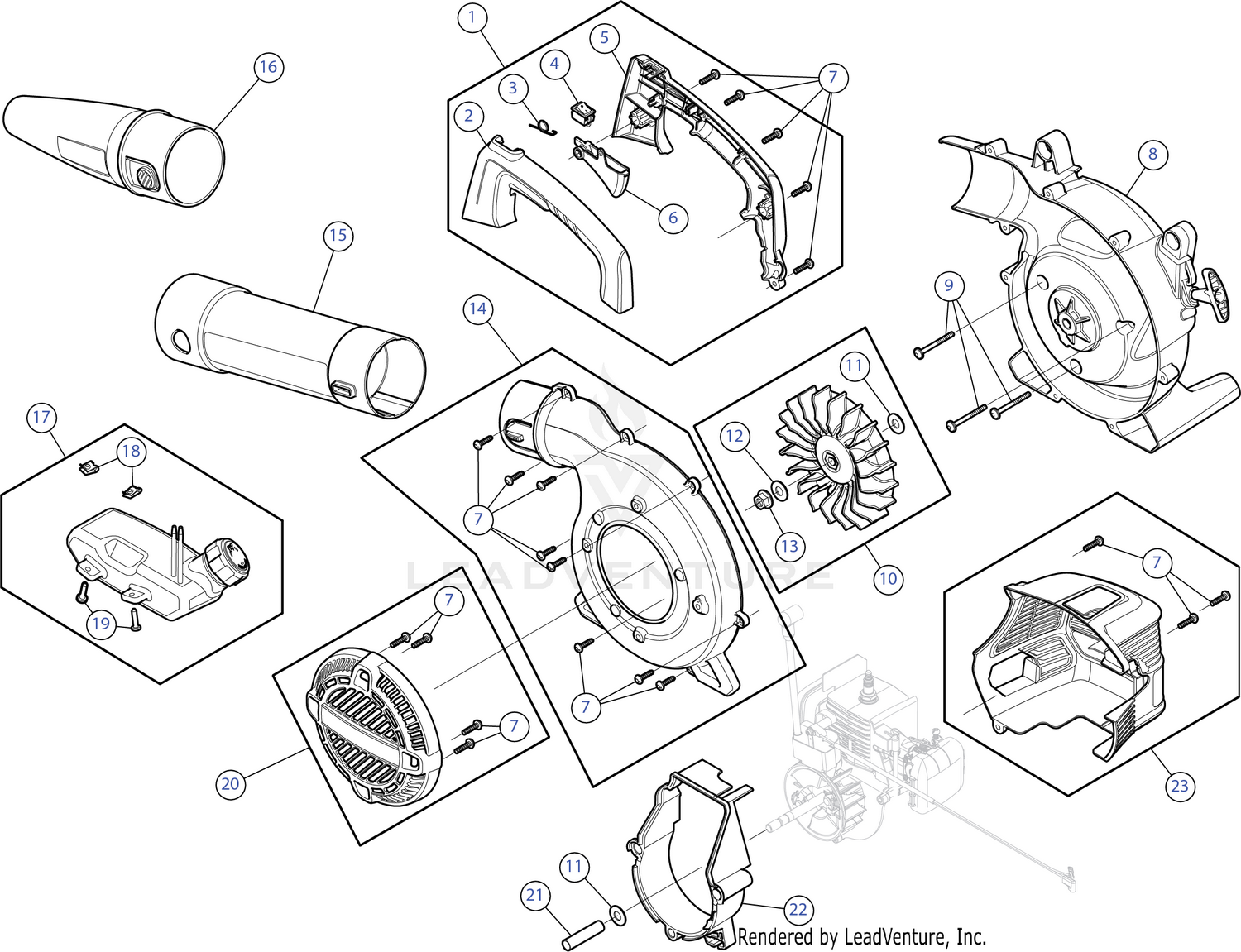

General Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 731-11027-1 | HANDLE (LH) Price: $5.94 |
| 3 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 4 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 5 | 731-10776A-1 | HANDLE ASSEMBLY (RH) Price: $3.07 |
| 6 | 731-09987-10 | TRIGGER Price: $2.72 |
| 7 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 8 | 841-014061S | IMPELLER HOUSING (RH) Not Available Price: |
| 9 | 710-06341 | SCREW 10/32 Price: $2.72 |
| 10 | 753-08491 | IMPELLER ASSEMBLY Price: $6.86 |
| 11 | 736-05080 | FLAT WASHER .401X.88 Price: $2.72 |
| 12 | 736-04110A | LOCK WASHER Price: $4.55 |
| 13 | 712-04137 | NUT 3/8-24 Price: $6.07 |
| 15 | 731-10598 | TUBE UPPER Price: $6.38 |
| 16 | 731-10604 | NOZZLE Price: $4.56 |
| 17 | 753-08500 | FUEL TANK ASSEMBLY Not Available Price: |
| 18 | 791-182366 | NUT, TINNERMAN U-T Price: $4.90 |
| 19 | 791-181930 | SCREW:10-6 x .75 Price: $5.95 |
| 21 | 750-06367 | SPACER Price: $2.72 |
