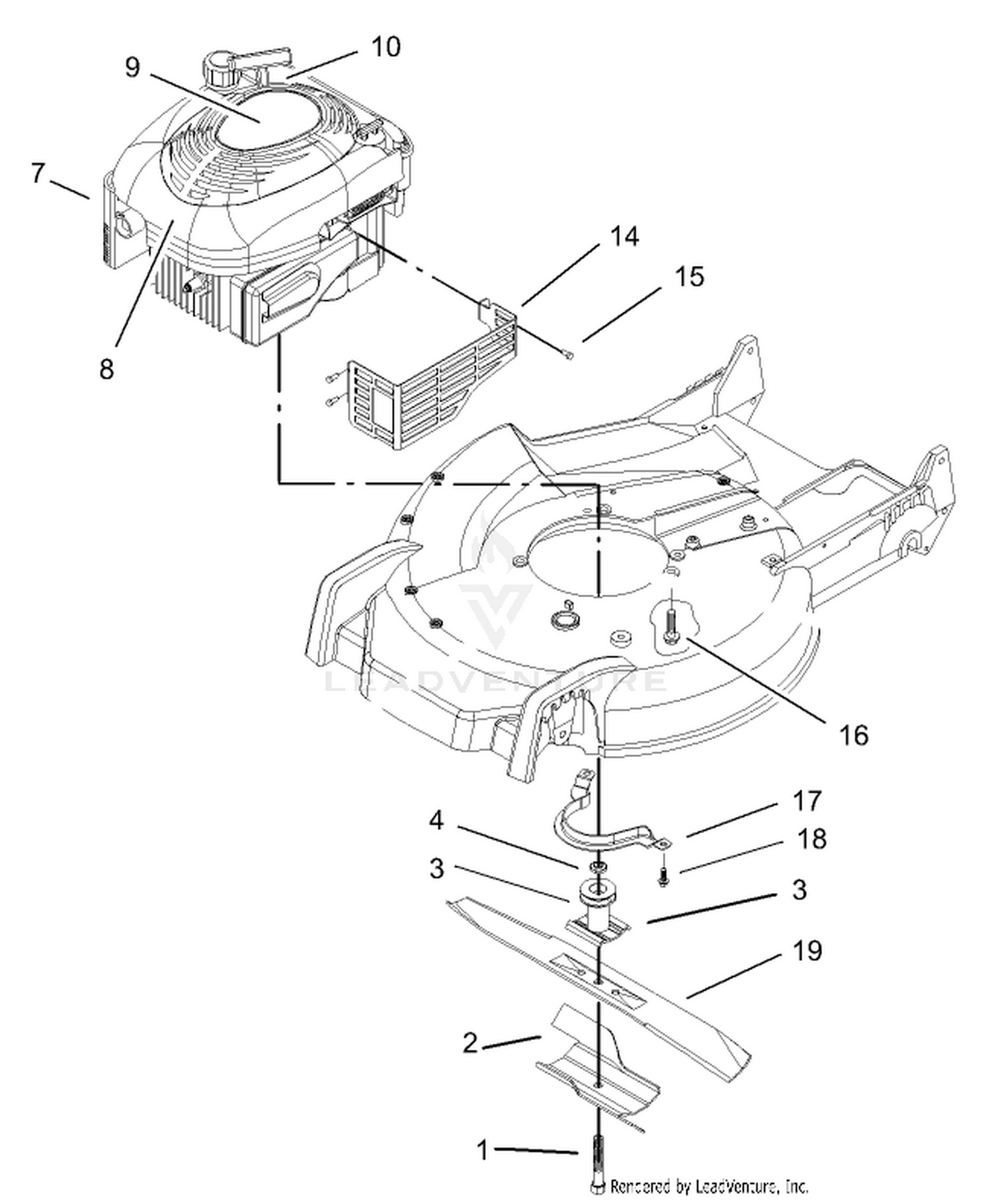

Engine Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-2466 | BOLT-BLADE This part replaces 105-8579. Price: $2.20 |
| 2 | 105-6848-03 | ACCELERATOR-BLADE Price: $11.94 |
| 3 | 106-3987 | DRIVER-BLADE Price: $20.79 |
| 4 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 8 | 98-3206 | DECAL Price: $1.99 |
| 9 | 105-8570 | DECAL-RECOIL Price: $5.35 |
| 10 | 2210-316 | STOP-ROPE Price: $4.41 |
| 14 | 104-7577-03 | SHIELD-MUFFLER Price: $16.78 |
| 15 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 16 | 32144-102 | SCREW-HWH Price: $3.19 |
| 17 | 66-0570-03 | BRACKET-GUIDE, BELT Price: $8.87 |
| 18 | 32144-70 | SCREW-HWHTF Price: $1.99 |
