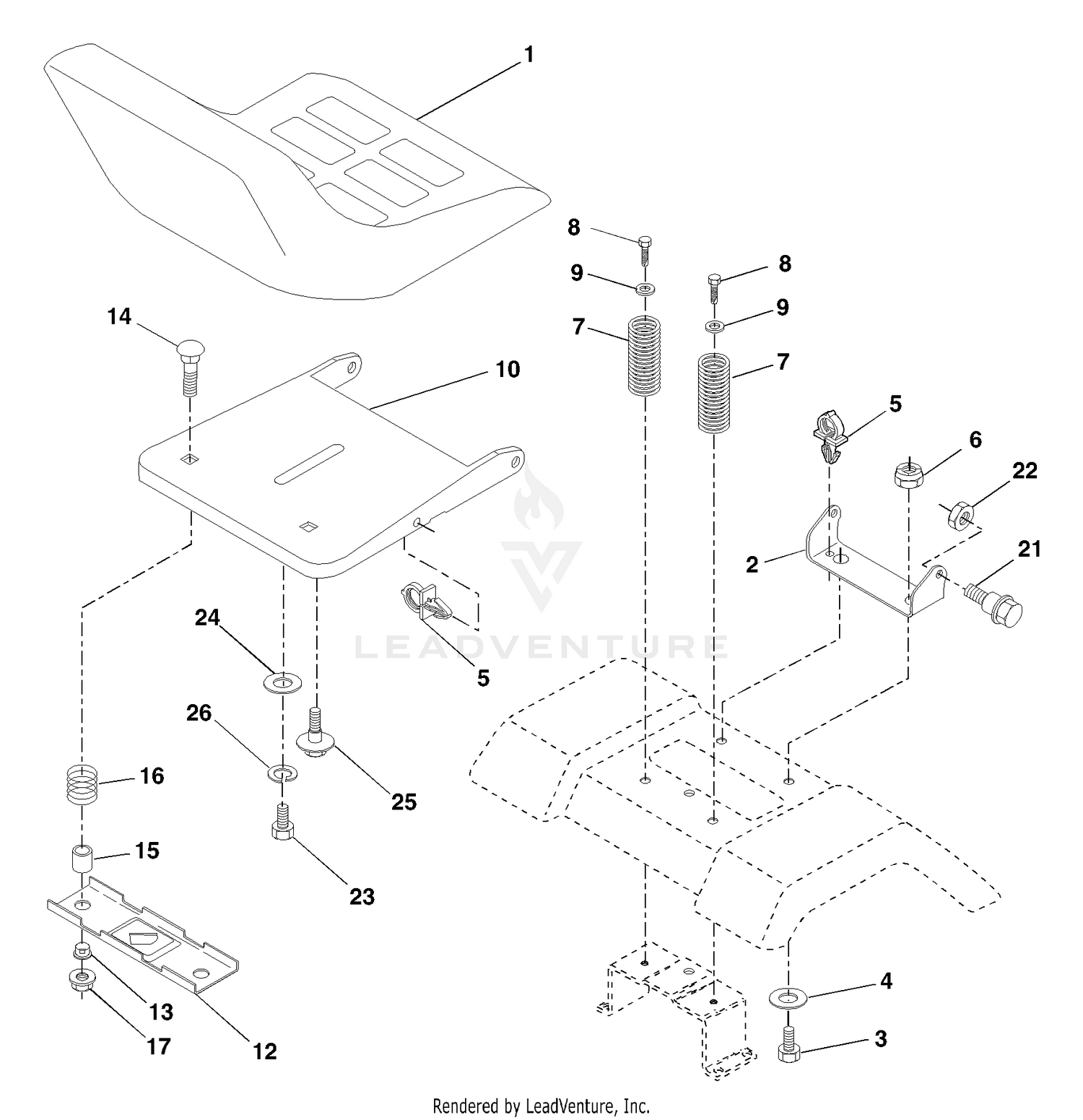

| Ref | Part Number | Description |
|---|
| 1 |
127426X |
Seat Price: Call Us |
| 1 |
3269-4 |
RIVET-POP Price: $1.19 |
| 2 |
140551 |
Bracket Seat Pivot Price: Call Us |
| 2 |
95-6339 |
LATCH Price: $37.95 |
| 3 |
120-6601 |
FRAME ASM This part replaces 108-2010. Price: $3,823.92 |
| 3 |
71110616 |
Bolt Hex 3/8 - 16 X 1 Price: Call Us |
| 4 |
19131610 |
Washer 13/32 X 1 X10Ga. Price: Call Us |
| 4 |
66-6140 |
DECAL Price: $25.48 |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 6 |
73800600 |
Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
105-0003-01 |
RH HINGE PIN ASM Price: $39.99 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 9 |
105-0004-01 |
LH HINGE PIN ASM Price: $34.54 |
| 9 |
19131614 |
Washer 13/32 X 1 X 14 Ga Price: Call Us |
| 10 |
105-4278-03 |
LH HOOD HINGE ASM Price: $75.26 |
| 10 |
174894 |
Pan Pnt Seat (Blk) Price: Call Us |
| 11 |
105-4277-03 |
RH HOOD HINGE ASM Price: $75.26 |
| 12 |
121246X |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
3290-412 |
RIVET-BLIND Price: $3.19 |
| 13 |
105-0006-03 |
SCREEN-HOOD Price: $155.76 |
| 13 |
121248X |
Bushing Snap Blk Nyl Price: Call Us |
| 14 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4 - 20 X 1 -1/2 Price: Call Us |
| 15 |
119-2195 |
HOOD ASM This part replaces 104-3485. Price: $1,772.33 |
| 15 |
134300 |
Spacer Split .28 X .96 Price: Call Us |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Price: Call Us |
| 17 |
98-9315 |
LATCH-LOCKING Price: $117.46 |
| 18 |
108-2067 |
DECAL Price: $51.05 |
| 19 |
106-6754 |
DECAL-DANGER Price: $9.57 |
| 20 |
105-3651 |
STRIP-FOAM Price: $57.31 |
| 21 |
105-0088-03 |
BRACKET-CABLE, HOOD Price: $17.77 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc-2A Price: Call Us |
| 22 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 22 |
73800500 |
Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us |
| 23 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 23 |
71110814 |
Bolt Hex Price: Call Us |
| 24 |
105-3650 |
CABLE-HOOD Price: $51.82 |
| 24 |
19171912 |
Washer 17/32 X 1-3/16 X 12 Ga Price: Call Us |
| 25 |
127018X |
Bolt Shoulder 5/16-18 X .62 Price: Call Us |
| 25 |
137-3101 |
SCREW-PLASTIC, HWH This part replaces 46-8092. Price: $0.59 |
| 26 |
110-5693-03 |
ROPS-LOWER Price: $951.33 |
| 27 |
32128-23 |
NUT-HF Price: $1.51 |
| 28 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 29 |
325-18 |
SCREW-HH Price: $3.19 |
| 30 |
110-5690 |
UPPER ROPS ASM Price: $774.98 |
| 31 |
110-5696 |
SPRING-LEAF Price: $43.16 |
| 32 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 34 |
161-4477 |
PIN-ROPS, ASM This part replaces 103-4553. Price: $31.99 |
