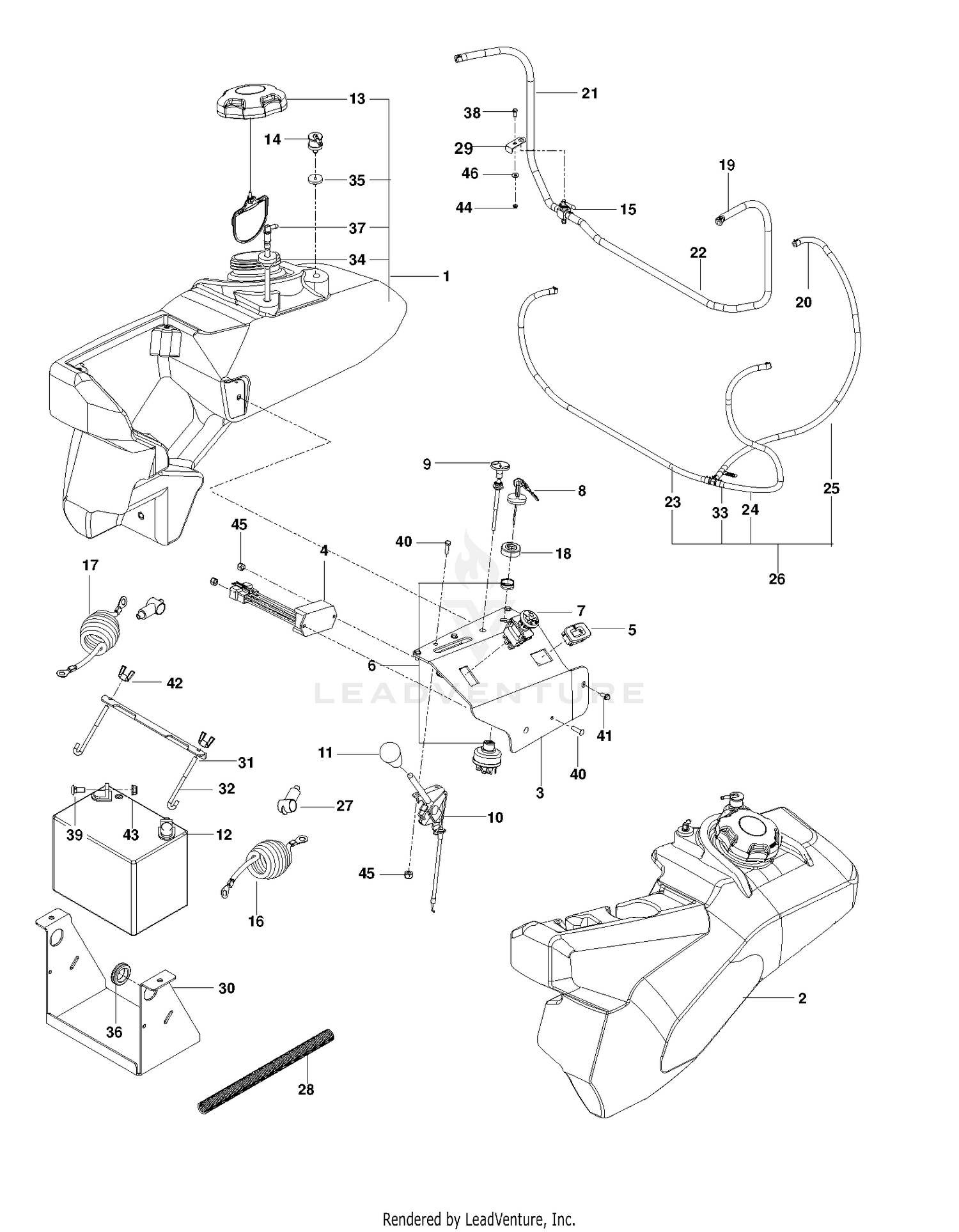

| Ref | Part Number | Description |
|---|
| 1 |
590025903 |
Tanks This part replaces 576369202. Price: $399.99 |
| 1 |
76-7250 |
DRIVE - PINION Price: $2,980.54 |
| 2 |
589997313 |
FUEL TANK ASSEMBLY LH EPA COMP This part replaces 576369102. Price: $399.99 |
| 2 |
76-7240 |
GEAR - RING Price: $1,235.00 |
| 3 |
592979103 |
Panel Controls This part replaces 529280202. Price: $27.99 |
| 3 |
76-7170 |
CASE, DIFF Price: $1,678.45 |
| 4 |
574514001 |
TIMER, SEAT Price: $79.99 |
| 4 |
76-7200 |
SHAFT - PINION Price: $239.56 |
| 5 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 5 |
76-7230 |
WASHER - LOCK Price: $20.83 |
| 6 |
574455401 |
SWITCH, IGNITION, INDAK Price: $29.99 |
| 6 |
98-7821 |
DISCONTINUED This part replaces 76-7260. Price: Call Us |
| 7 |
597520401 |
Service Kit This part replaces 539131627. Price: $54.99 |
| 7 |
76-7270 |
PIN - SPRING Price: $4.29 |
| 8 |
574455501 |
KEY, IGNITION Price: $5.99 |
| 8 |
76-7220 |
WASHER - THRUST Price: $19.81 |
| 9 |
531077202 |
CHOKE CABLE 48IN This part replaces 574206901. Price: $27.99 |
| 9 |
76-7190 |
GEAR-SIDE Price: $183.47 |
| 10 |
574207001 |
CABLE, THROTTLE, 46" Price: $29.99 |
| 10 |
76-7180 |
PINION-MATE Price: $141.34 |
| 11 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 11 |
76-7210 |
WASHER - THRUST Price: $17.76 |
| 12 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 12 |
76-7280 |
BEARING Price: $134.09 |
| 13 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 13 |
76-7290 |
LINER Price: $12.62 |
| 14 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 14 |
76-7490 |
SHAFT-DIFFERENTIAL Price: $494.45 |
| 15 |
119-8558 |
BEARING-NOSEAL This part replaces 76-7500. Price: $14.99 |
| 15 |
539102679 |
FUEL VALVE Price: $49.99 |
| 16 |
522718701 |
CABLE, POSITIVE, 55" Price: $22.99 |
| 16 |
76-7520 |
SHIM Price: $9.96 |
| 17 |
522710701 |
CABLE, NEG, 55" Price: $29.99 |
| 17 |
76-7510 |
DISCONTINUED Price: Call Us |
| 18 |
539103178 |
CAP IGNITION NUT Price: $3.99 |
| 18 |
76-7550 |
RING Price: $3.55 |
| 19 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 19 |
76-7580 |
DISCONTINUED Price: Call Us |
| 20 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 20 |
76-7590 |
DISCONTINUED Price: Call Us |
| 21 |
577103901 |
LINE, FUEL, 22" Price: $9.99 |
| 21 |
76-7600 |
BOLT - REAMER Price: $45.46 |
| 22 |
587044838 |
HOSE.1/4".LOW.PERM.FUEL.LN.38" This part replaces 577103902. Price: $6.99 |
| 22 |
76-7620 |
WASHER Price: $0.53 |
| 23 |
576660603 |
HOSE, 3/16" VAPOR, 21" Price: $6.99 |
| 23 |
76-7610 |
BOLT Price: $8.70 |
| 24 |
576660601 |
HOSE, VAPOR 3/16 X 39" Price: $11.99 |
| 25 |
576660604 |
HOSE, VAPOR 3/16 X 30" Price: $11.99 |
| 26 |
576547701 |
ASSEMBLY, VAPOR LINE Price: $37.99 |
| 27 |
539102759 |
INSULATOR Price: $3.99 |
| 28 |
574235301 |
LOOM, SPLIT, CONVOLUTED Price: $2.99 |
| 29 |
577104002 |
BRACKET,FUEL VALVE, BLACK Price: $8.99 |
| 30 |
510029902 |
BRACKET, BATTERY, BLK Price: $54.99 |
| 31 |
510030001 |
BRACKET, BATTERY MOUNT Price: $44.99 |
| 32 |
510064002 |
Hooks This part replaces 510064001. Price: $2.99 |
| 33 |
574206602 |
TEE, FUEL LINE 3/16" Price: $2.99 |
| 34 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 35 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 36 |
539105974 |
RUBBER GROMMET Price: $2.99 |
| 37 |
525865401 |
FITTING, FUEL Price: $29.99 |
| 38 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 39 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 40 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 41 |
539114341 |
SCR #10-24 X 3/8 SKT HD BLK OX Price: $3.99 |
| 42 |
539990997 |
WING NUT 1/4 Price: $2.99 |
| 43 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 44 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 45 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
