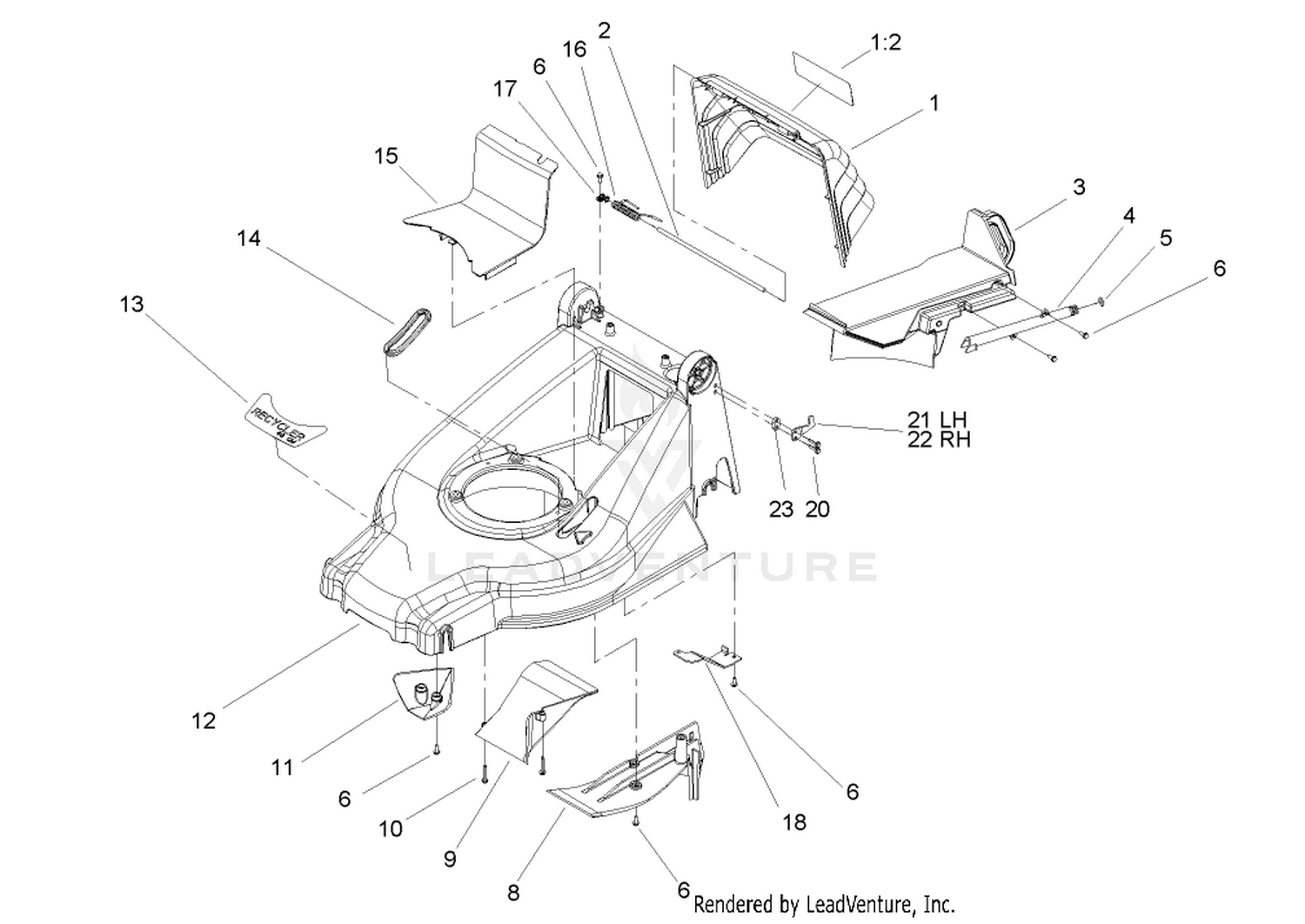

Housing Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-9115 | DOOR ASM Price: $55.37 |
| 2 | 100-1509 | ROD-PIVOT Price: $3.50 |
| 3 | 100-1505 | PLUG-KICKER, RECYCLER Price: $23.20 |
| 4 | 100-1522 | FITTING-WASHOUT Price: $10.75 |
| 5 | 46-6290 | O-RING Price: $2.59 |
| 6 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 8 | 99-6486 | DISCONTINUED Price: Call Us |
| 9 | 100-1506 | RAMP-DISCHARGE Price: $14.20 |
| 10 | 100-4352 | SCREW-HWH Price: $1.63 |
| 11 | 99-6485 | KICKER-FRONT Price: $11.26 |
| 12 | 104-7579 | DECK Price: $583.59 |
| 13 | 107-2242 | DISCONTINUED Price: Call Us |
| 14 | 100-3932 | BOOT-HOC Price: $10.75 |
| 15 | 99-6479 | COVER-BELT Price: $16.10 |
| 16 | 104-7594 | SPRING-TORSION Price: $9.12 |
| 17 | 98-2256 | CLAMP Price: $3.48 |
| 18 | 100-9123-03 | BRACKET-DECK Price: $6.67 |
| 20 | 100-4351 | SCREW-HWH Price: $1.49 |
| 21 | 104-7557 | DISCONTINUED Price: Call Us |
