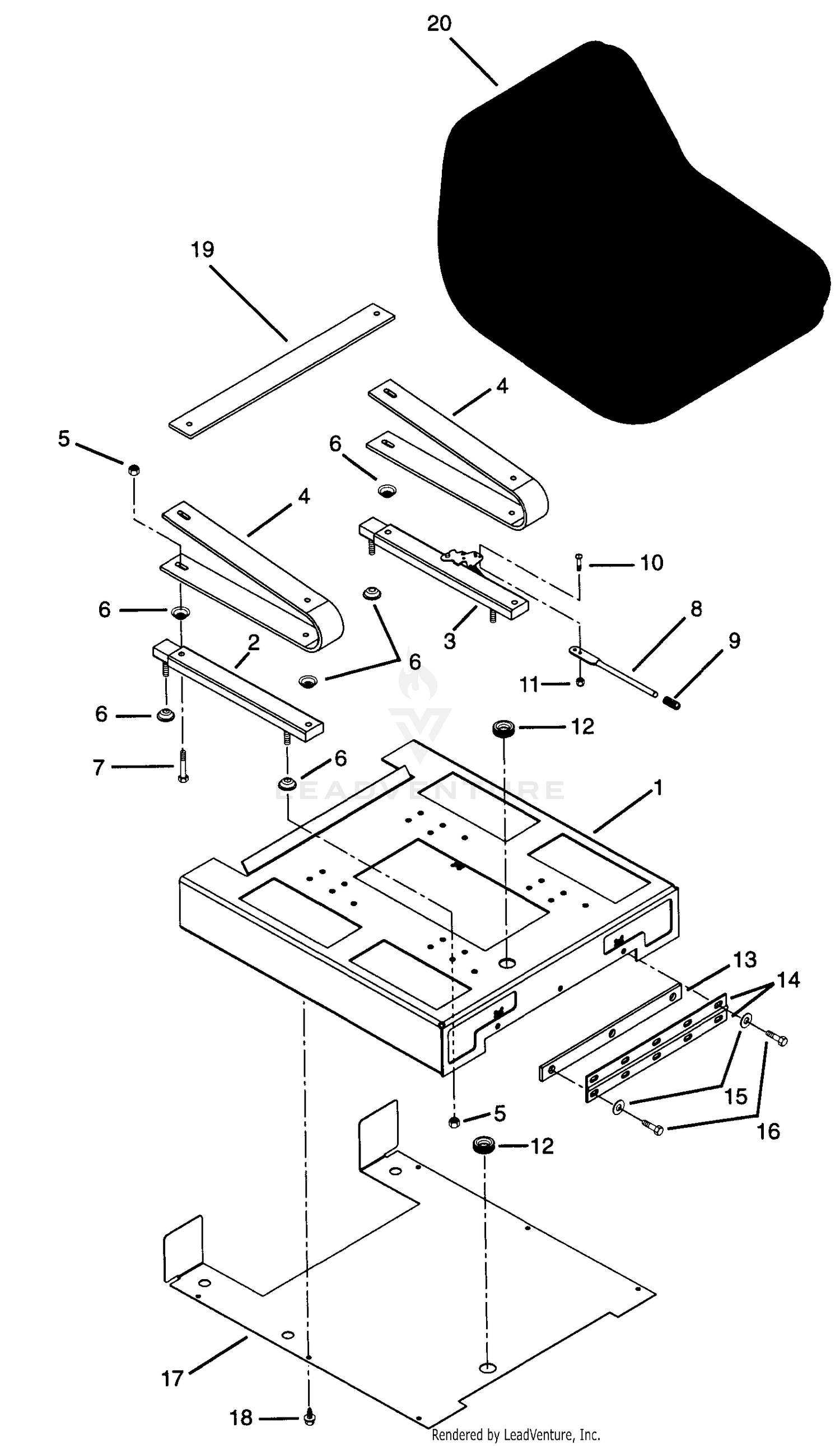

| Ref | Part Number | Description |
|---|
| 1 |
09060200 |
WLDMT, SEAT SUPPORT Price: $139.95 |
| 2 |
03600800 |
SEAT SLIDES -(RAME TAK-3010-4) This part replaces 035642. Price: $80.50 |
| 3 |
03600800 |
SEAT SLIDES -(RAME TAK-3010-4) This part replaces 035641. Price: $80.50 |
| 4 |
03486800 |
SPRING, SEAT Price: Call Us |
| 5 |
06500820 |
NUT-NYL .31-18 G5 ZCC This part replaces 419455. Price: $0.95 |
| 6 |
03418300 |
SEAT SLIDE SPACER This part replaces 035670. Price: $3.45 |
| 7 |
05934500 |
BLT-HEX .31-18X1.38 This part replaces 180082. Price: $1.95 |
| 8 |
03416500 |
SEAT SLIDE HANDLE This part replaces 039063. Price: $6.90 |
| 9 |
07503800 |
TIP - BRAKE LOCK LEVER This part replaces 043192. Price: $1.45 |
| 10 |
06111100 |
SCR-MCH 10-24X.62 P/HD This part replaces 159929. Price: $0.95 |
| 11 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 190254. Price: $0.45 |
| 12 |
07530600 |
GRMT .75X1.06X1.38 This part replaces 045290. Price: $2.45 |
| 13 |
01539100 |
PLT, CLAMPING YWZC This part replaces 044570. Price: $25.90 |
| 14 |
03102800 |
HINGE-2" X 12.88 YWZC This part replaces 039090. Price: $21.95 |
| 15 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 120393. Price: $0.45 |
| 16 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 180077. Price: $1.45 |
| 17 |
09060100 |
SHIELD, SEAT LID Price: $17.95 |
| 18 |
07502600 |
GROMMET, .31 ID This part replaces 036485. Price: $2.10 |
| 19 |
09004051 |
BRKT,SEAT This part replaces 09004000. Price: $21.95 |
