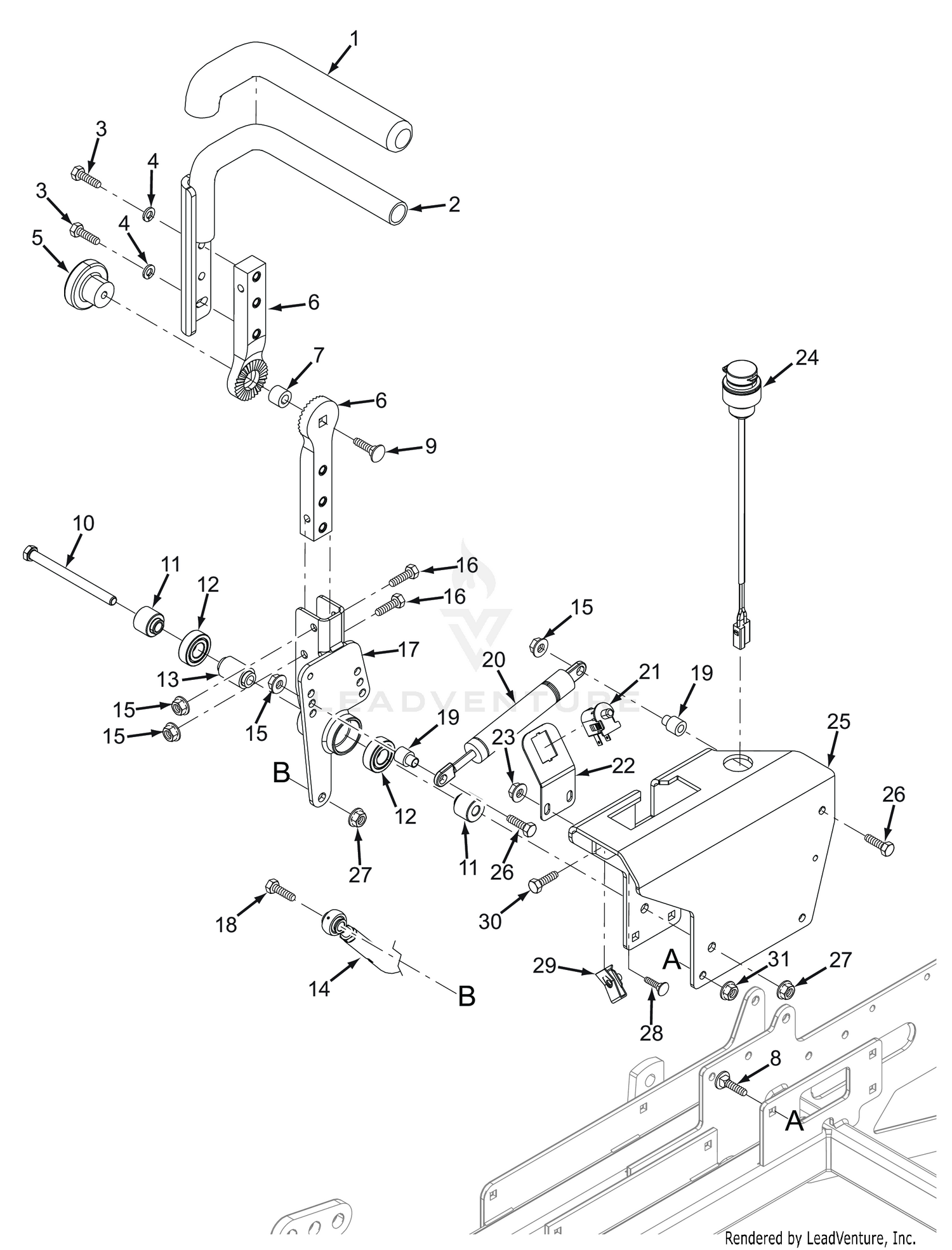

| Ref | Part Number | Description |
|---|
| 1 |
3-7444 |
DISCONTINUED Price: Call Us |
| 1 |
484376 |
Grip, Control Handle Price: Call Us |
| 2 |
32120-33 |
RING-RETAINING Price: $0.68 |
| 2 |
462805 |
Handle Bar w/Grip - RH Price: Call Us |
| 3 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 3 |
3-4003 |
Shield Grass Price: Call Us |
| 4 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 4 |
42179 |
SHIM - .030 Price: $1.05 |
| 5 |
3-4326 |
DISCONTINUED Price: Call Us |
| 5 |
483269 |
Knob, Control Handle Price: Call Us |
| 6 |
3-4312 |
DISCONTINUED Price: Call Us |
| 6 |
483238 |
Pivot, Control Lever Price: Call Us |
| 7 |
3262-4 |
DISCONTINUED Price: Call Us |
| 7 |
483250 |
Spacer, Rubber Price: Call Us |
| 8 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 8 |
3-4311 |
DISCONTINUED Price: Call Us |
| 9 |
04003-05 |
Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61") Price: Call Us |
| 9 |
3-4325 |
Spider Price: Call Us |
| 10 |
04001-23 |
Bolt, 3/8 - 16 x 4 - 1/2" Hex Head Price: Call Us |
| 10 |
3279-2 |
DISCONTINUED Price: Call Us |
| 11 |
3-4277 |
BEDKNIFE-SERVICE ONLY Price: $171.20 |
| 11 |
43607 |
Spacer, Controls Price: Call Us |
| 12 |
3-6020 |
DISCONTINUED Price: Call Us |
| 12 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 13 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 13 |
43600 |
Spacer, Bearing Price: Call Us |
| 14 |
324-4 |
SCREW-HH Price: $0.95 |
| 14 |
486555 |
Steering Link Assembly, SCZII Price: Call Us |
| 15 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 15 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 16 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 16 |
3-6050 |
DISCONTINUED Price: Call Us |
| 17 |
3-7442 |
LOWER WASHER Price: $6.22 |
| 17 |
453077 |
Pivot Weldment, Control Arm RH Price: Call Us |
| 18 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 18 |
5-3425 |
DISCONTINUED Price: Call Us |
| 19 |
3-7443 |
DISCONTINUED Price: Call Us |
| 19 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 20 |
484193 |
Damper, Steering Price: Call Us |
| 20 |
5-1461 |
KNIFEBAR PIVOT Price: $8.53 |
| 21 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 21 |
481638 |
Switch, Interlock, Normally Open Price: Call Us |
| 22 |
254-78 |
BEARING-CONE Price: $12.22 |
| 22 |
425905 |
Bracket, Operator Presence Switch Price: Call Us |
| 23 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 23 |
237-58 |
O-RING Price: $2.18 |
| 24 |
485568 |
Power Plug, 12V Price: Call Us |
| 24 |
5-3820 |
OIL SEAL Price: $8.69 |
| 25 |
2-4219 |
DISCONTINUED Price: Call Us |
| 25 |
463234 |
Control Plate w/ Decals RH Price: Call Us |
| 26 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 26 |
3273-14 |
SCREW-HSH Price: $0.81 |
| 27 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 27 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 28 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 28 |
3-4275 |
AXLE SHAFT Price: $249.43 |
| 29 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 29 |
3-6030 |
DISCONTINUED Price: Call Us |
| 30 |
04107-03 |
Bolt, Hex Head 3/8-16 x 1-1/4" with Thread Lock Patch Price: Call Us |
| 30 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 31 |
3219-5 |
NUT-HEX Price: $1.22 |
| 453076 |
Pivot |
Weldment, Control Arm LH Price: Call Us 453076 |
| 462804 |
Handle |
Bar w/Grip - LH Price: Call Us 462804 |
| 463233 |
Control |
Weldment w/ Decal Price: Call Us 463233 |
| 486609 |
Rod |
End, Male Trunion, 3/8-24 Price: Call Us 486609 |
| 486610 |
Rod |
End, Female Trunion, 3/8-24 Price: Call Us 486610 |
