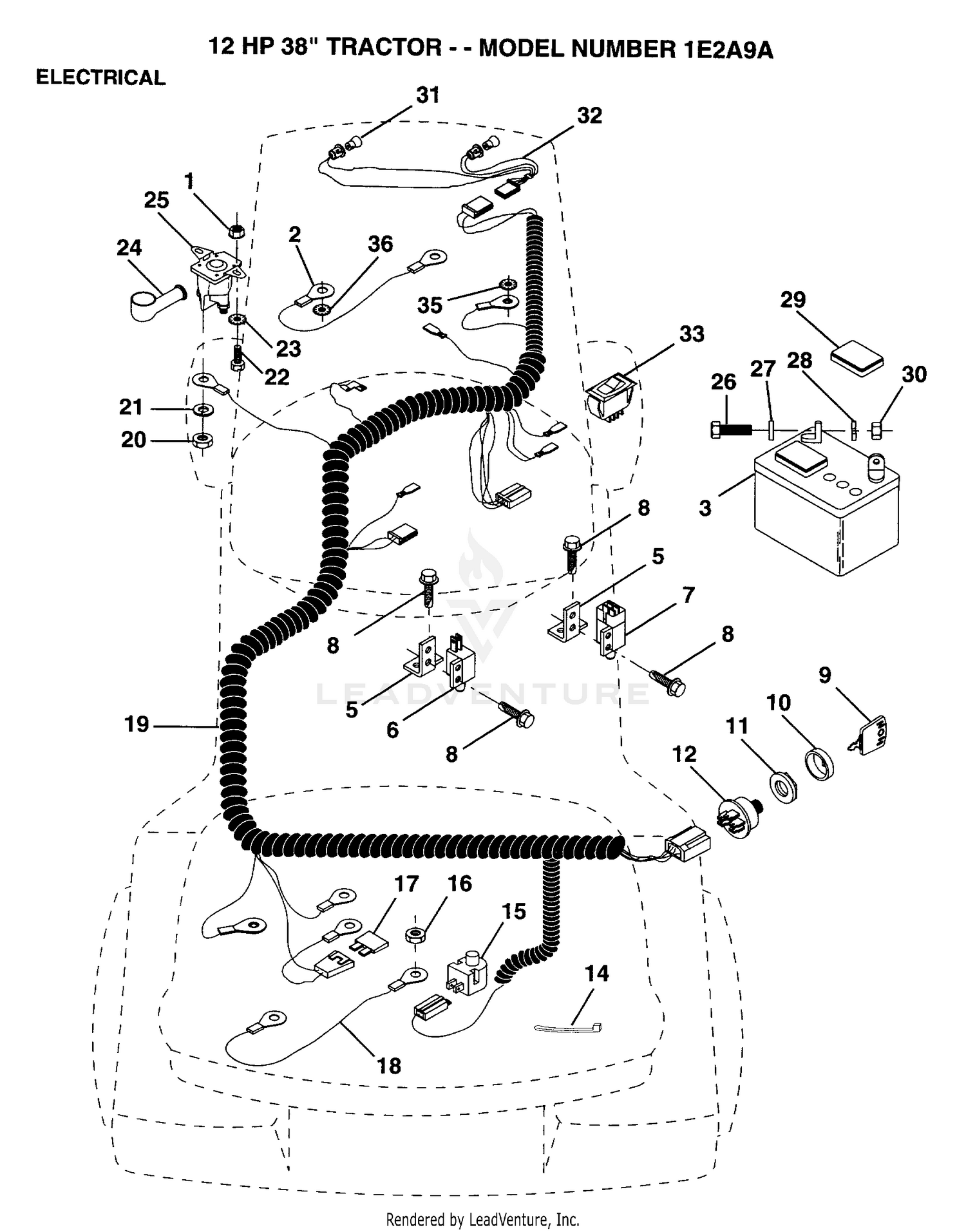

| Ref | Part Number | Description |
|---|
| 1 |
73510400 |
NUT Price: Call Us |
| 2 |
108423X |
CABLE ASM. Price: Call Us |
| 3 |
133909 |
SUB= 123899X Price: Call Us |
| 5 |
108236X |
BRACKET LT Price: Call Us |
| 6 |
104445X |
SWITCH-INTER. GT Price: Call Us |
| 7 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 8 |
17021008 |
SCREW Price: Call Us |
| 9 |
122147X |
KEY Price: Call Us |
| 10 |
123620X |
SUB= 141226 Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 11 |
124211X |
NUT IGNITION Price: Call Us |
| 12 |
4406R |
SUB= STD365402 Price: Call Us |
| 14 |
7192 |
J WIRE TIE Price: Call Us 7192 J |
| 15 |
121305X |
SWITCH SEAT Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
108824X |
FUSE HYT Price: Call Us |
| 18 |
128353 |
CABLE ASSY Price: Call Us |
| 19 |
132222 |
SUB= 532132222 Price: Call Us |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
10090400 |
SUB= 10040400 Price: Call Us |
| 22 |
74780408 |
BOLT Price: Call Us |
| 23 |
11050400 |
LOCKWASHER Price: Call Us |
| 24 |
131563 |
SUB= 154336 Price: Call Us |
| 25 |
138406 |
SUB= 146154 Price: Call Us |
| 26 |
74760412 |
BOLT LT Price: Call Us |
| 27 |
19091016 |
WASHER Price: Call Us |
| 28 |
10040400 |
LOCKWASHER Price: Call Us |
| 30 |
73220400 |
SUB= 50675 Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
7662J |
SUB= 4152J Price: Call Us |
| 32 |
136849 |
SUB= 136850 Price: Call Us |
| 33 |
110712X |
SWITCH LT Price: Call Us |
| 35 |
11050600 |
LOCKWASHER Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
