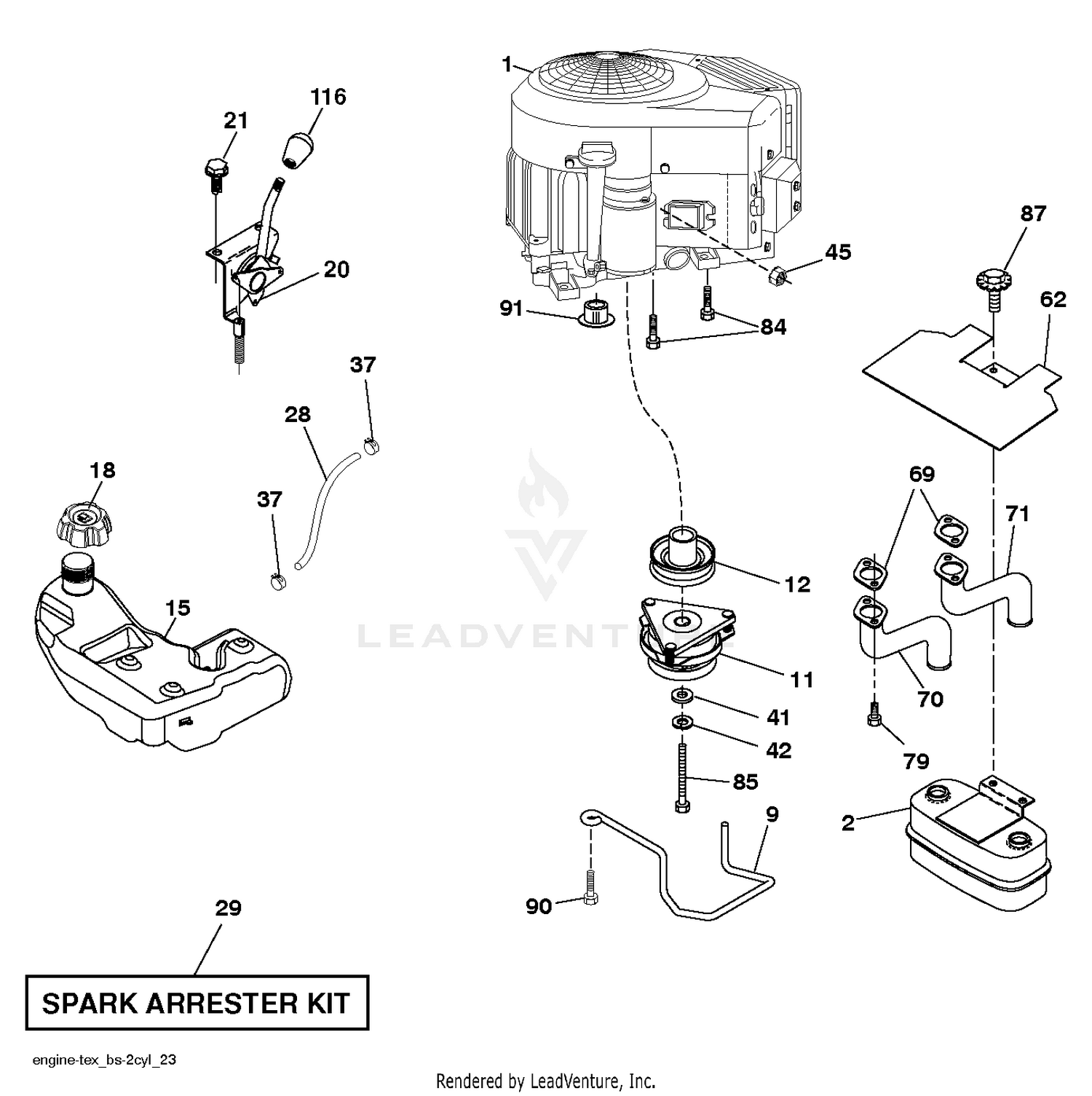

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
105-3723 |
CAMSHAFT-FUEL Price: $424.59 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 20 |
107-9077 |
BEARING-BALL Price: $81.95 |
| 20 |
586219601 |
CONTROL.THROTTLE/CHOKE.PRO.45 This part replaces 532424340. Price: $54.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
107-9078 |
BEARING-BALL Price: $81.95 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
98-9669 |
GEAR-PUMP, INJECTION Price: $86.00 |
| 60 |
98-9590 |
NUT-CAP Price: $3.86 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 70 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 80 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-7692 |
BOLT Price: $0.92 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 100 |
105-3724 |
GOVERNOR SHAFT ASM Price: $822.46 |
| 110 |
105-3725 |
SHAFT-GOVERNOR Price: $47.55 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 120 |
98-9562 |
HOLDER-GEAR, GOVERNOR Price: $61.49 |
| 130 |
98-9673 |
GEAR-GOVERNOR Price: $137.25 |
| 140 |
98-9561 |
HOLDER-WEIGHT, GOVERNOR Price: $23.68 |
| 150 |
98-9559 |
GOVERNOR WEIGHT ASM Price: $105.15 |
| 160 |
98-9560 |
SHAFT-WEIGHT, GOVERNOR Price: $6.17 |
| 170 |
98-9692 |
ROLLER Price: $11.45 |
| 180 |
98-9563 |
SLEEVE-GOVERNOR Price: $29.68 |
| 190 |
98-9564 |
WASHER-THRUST Price: $5.01 |
| 200 |
107-9079 |
BEARING-BALL Price: $81.78 |
| 210 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
