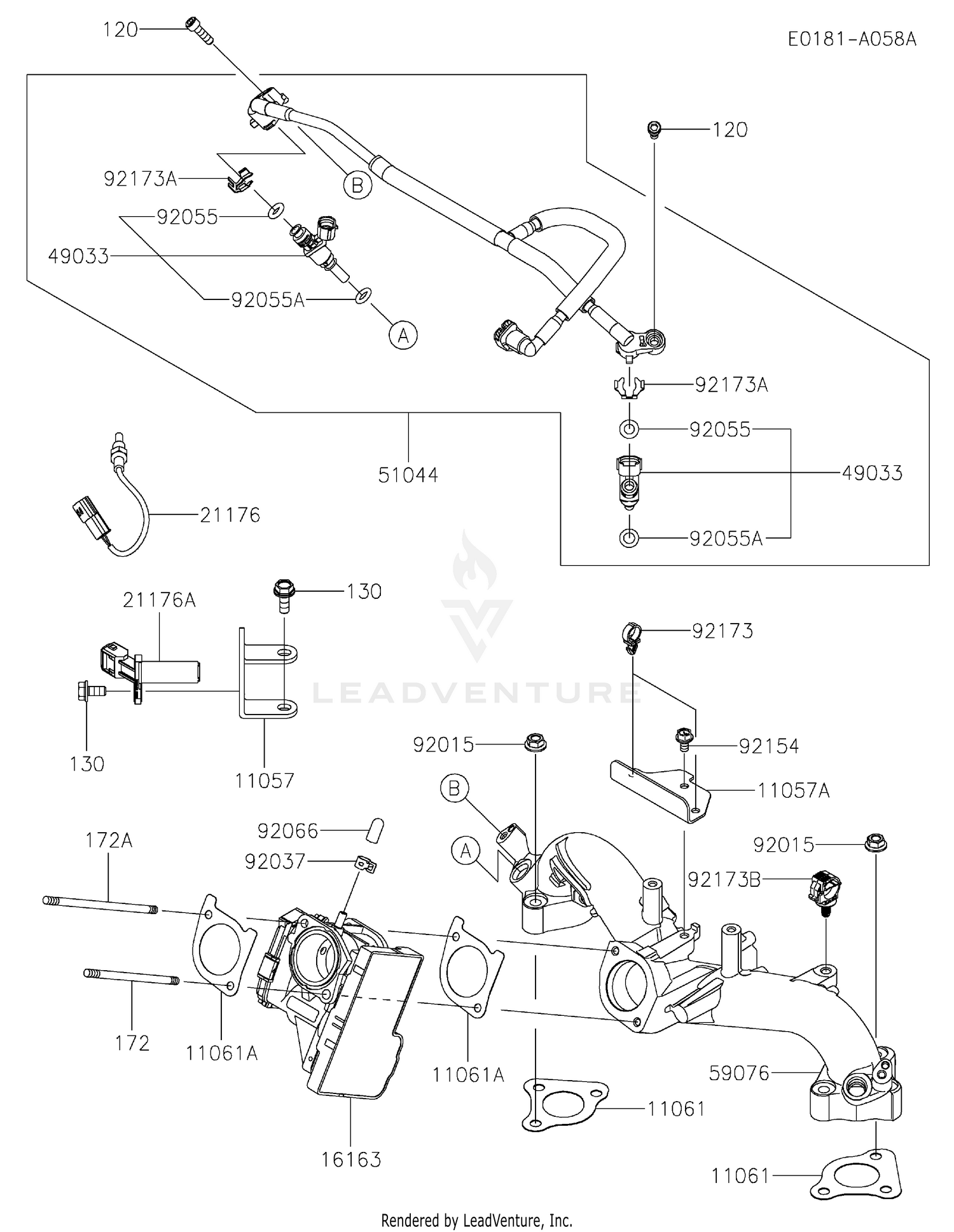

FX820A-BS06 THROTTLE EQUIPMENT
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 120 | KM-120CA0620 | BOLT-SOCKET HD Not Available Price: |
| 130 | KM-130BA0616 | FLANGED BOLT 6X16 Price: $1.99 |
| 172 | KM-172BA06105 | CARB MOUNTING STUD Not Available Price: |
| 11057 | KM-11057-7399 | BRACKET CPS Price: $2.39 |
| 11057A | KM-11057-7400 | FUEL TUBE CLAMP BRACKET Price: $1.28 |
| 11061 | KM-11061-1404 | HEAD MNFLD GASKET Price: $1.86 |
| 11061A | KM-11061-1571 | THROTTLE GASKET Price: $1.34 |
| 16163 | KM-16163-1261 | THROTTLE ASSY Price: $457.59 |
| 21176 | KM-21176-0771 | SENSOR Price: $29.79 |
| 21176A | KM-21176-1140 | CPS SENSOR Price: $30.68 |
| 49033 | KM-49033-0581 | INJECTION NOZZLE Price: $63.54 |
| 51044 | KM-51044-0981 | TUBE ASSY Price: $154.56 |
| 59076 | KM-59076-0039 | INTAKE MANIFOLD Price: $112.32 |
| 92015 | KM-92015-1014 | NUT,8M/M Not Available Price: |
| 92037 | KM-92037-1461 | CLAMP-TUBE Price: $4.90 |
| 92055 | KM-92055-0818 | O-RING INJCTN NOZZLE-PURPLE Price: $13.24 |
| 92055A | KM-92055-0819 | O-RING INJCTN NOZZLE-GREEN Price: $13.24 |
| 92066 | KM-92066-0095 | PLUG-AIR INTAKE PI Price: $4.90 |
| 92154 | KM-92154-2938 | FLANGED BOLT Price: $1.83 |
| 92173 | KM-92173-1184 | CLAMP Price: $1.73 |
| 92173A | KM-92173-1690 | INJECTOR CLAMP Price: $11.07 |
| 92173B | KM-92173-1738 | CLAMP Price: $1.17 |
