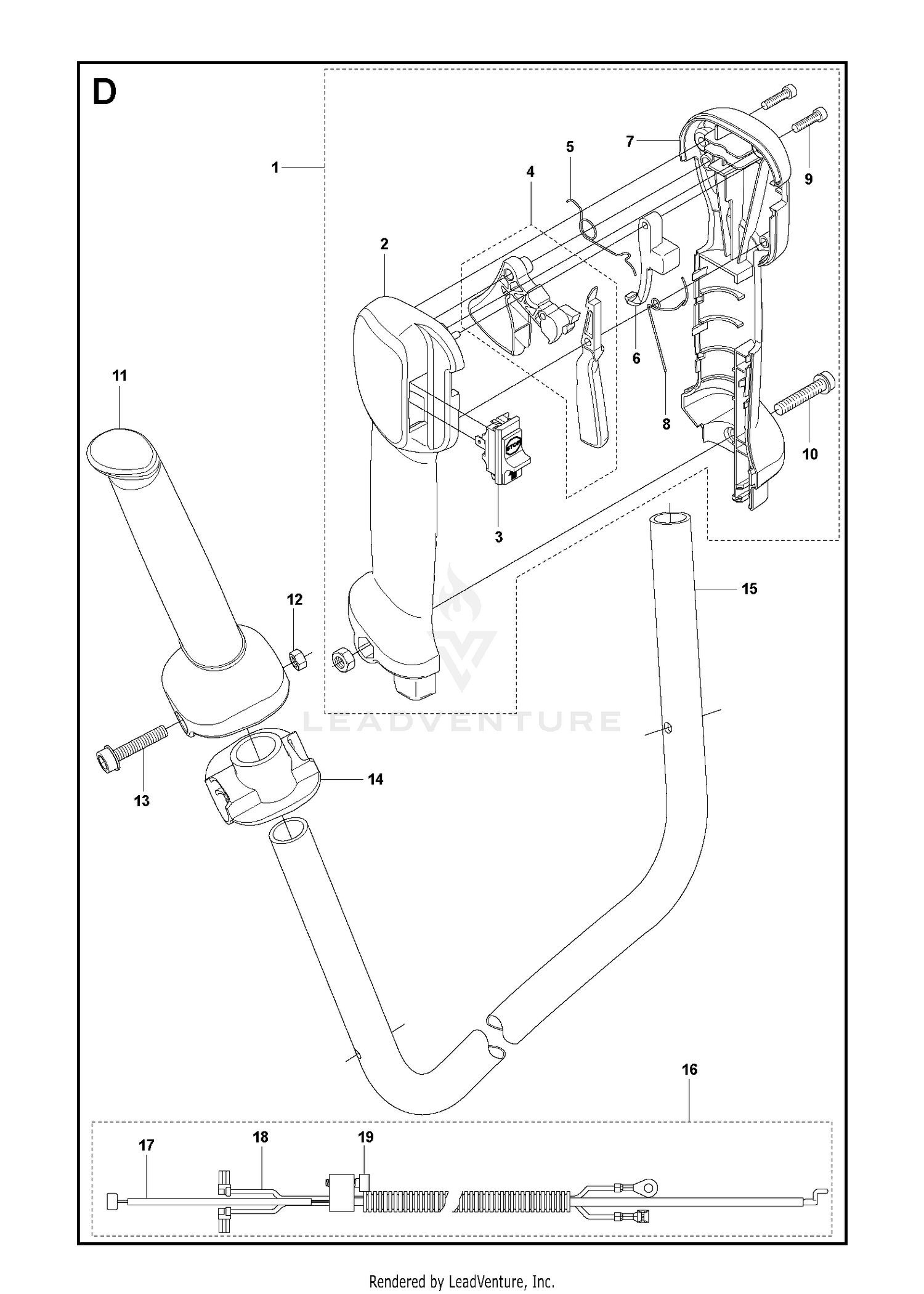

HANDLE & CONTROLS
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 1 | 537424509 | HANDLE SYSTEM ASSY This part replaces 537424506. Price: $69.99 |
| 2 | 237-42 | O-RING Price: $2.78 |
| 2 | 537160203 | HANDLE Price: $17.99 |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 3 | 537419001 | STOP BUTTON Price: $7.99 |
| 4 | 22-8350 | BALL Price: $12.28 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 5 | 537174201 | SPRING Price: $4.99 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 6 | 537160703 | STARTER THROTTLE LOCK This part replaces 537160701. Price: $4.99 |
| 7 | 537160301 | HANDLE Price: $14.99 |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 537174301 | SPRING Price: $3.99 |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 9 | 503216618 | SCREW Price: $3.99 |
| 10 | 22-8380 | RETAINER Price: $17.86 |
| 10 | 503200782 | SCREW IHSCFM This part replaces 503200735. Price: $3.99 |
| 11 | 22-8410 | SPRING Price: $17.61 |
| 11 | 537172801 | HANDLE Price: $14.99 |
| 12 | 23-3030 | SPACER Price: $33.93 |
| 12 | 731231401 | NUT Price: $1.99 |
| 13 | 22-8480 | RING-SNAP Price: $49.87 |
| 13 | 503200245 | SCREW Price: $3.99 |
| 15 | 537360001 | HANDLE Price: $29.99 |
| 16 | 537359602 | WIRING KIT COMPLETE Price: $32.99 |
| 17 | 537377801 | THROTTLE WIRE Price: $27.99 |
| 18 | 503878507 | SHORT CIRCUIT CABLE Price: $17.99 |
| 19 | 503216618 | SCREW Price: $3.99 |
