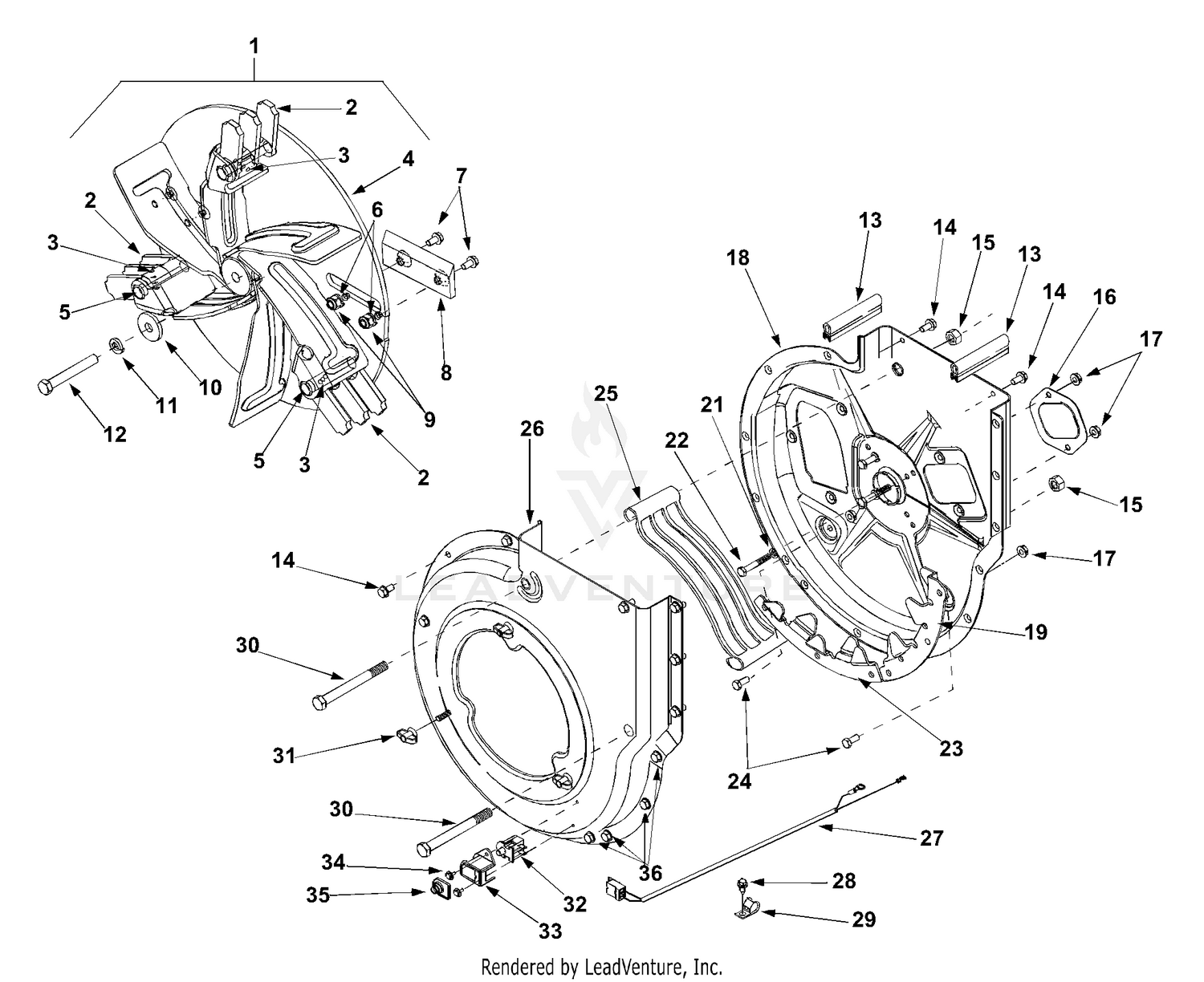

Impeller Assembly

Impeller Assembly

Parts (34)

RefPart NumberDescription
1 981-04090 IMPELLER ASSEMBLY Not Available This part replaces 681-0108. Price:
2 719-0329 Flail Blade Price: $27.90
3 715-0166 Spiral Pin Price: $5.94
4 981-04090 IMPELLER ASSEMBLY Not Available This part replaces 681-0107. Price:
5 911-0833B Clevis Pin .496" Dia. This part replaces 711-0833B. Price: $10.60
6 936-0119 LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29
7 710-1054 Cap Screw 5/16-24 x 1.0 Price: $3.71
8 981-0490 CHIPPER BLADE This part replaces 781-0490. Price: $26.69
9 712-0411 Hex Lock Nut 5/16-24 Price: $3.71
10 736-0247 Flat Washer .406 x 1/1/4 Price: $8.82
11 736-0217 Lock Washer 3/8 Price: $3.86
12 710-1273 Hex Cap Screw 3/8-24 x 2.75 Price: $6.92
13 723-0438 Rubber Seal Price: $9.00
14 710-0604A Hex Washer Screw 5/16-18 Price: $3.96
15 912-0384 Hex Lock Nut, 1/2-13 This part replaces 712-0384. Price: $6.07
16 781-0627 CHIPPER BLADE COVER Not Available Price:
17 712-3004A HEX FLANGE NUT Price: $3.49
18 681-0098 FLAIL HOUSING ASSEMBLY (INNER) Not Available Price:
19 781-0599-0637 Upper Shredder Blade This part replaces 781-0599. Price: $29.08
21 936-0119 LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29
22 710-0772 Hex Cap Screw 5/16-18 x 2 Price: $3.93
23 781-0653-0637 Flail Housing Blade This part replaces 781-0653. Price: $61.31
24 710-3008 SCREW 5/16-18 x .75 GR5 Price: $3.76
25 719-0326 Discharge Screen Price: $89.52
26 681-0060 OUTER FLAIL HOUSING ASSEMBLY Not Available Price:
27 929-0241A Wire Harness This part replaces 629-0241A. Price: $53.96
28 710-1652 TT Screw 1/4-20 x 0.625" Price: $3.86
29 726-0272 Clamp Price: $6.24
30 710-0382 Hex Cap Screw 1/2-13 x 5.0 Price: $10.57
31 712-0421 Knob 5/16-18 Price: $5.99
32 925-3166 Switch This part replaces 725-3166. Price: $15.61
33 931-1613 Safety Switch Mounting Cover This part replaces 731-1613. Price: $9.16
34 710-1268 Hex Washer Screw Price: $3.90
35 925-1700 Switch Cover This part replaces 725-1700. Price: $10.40
