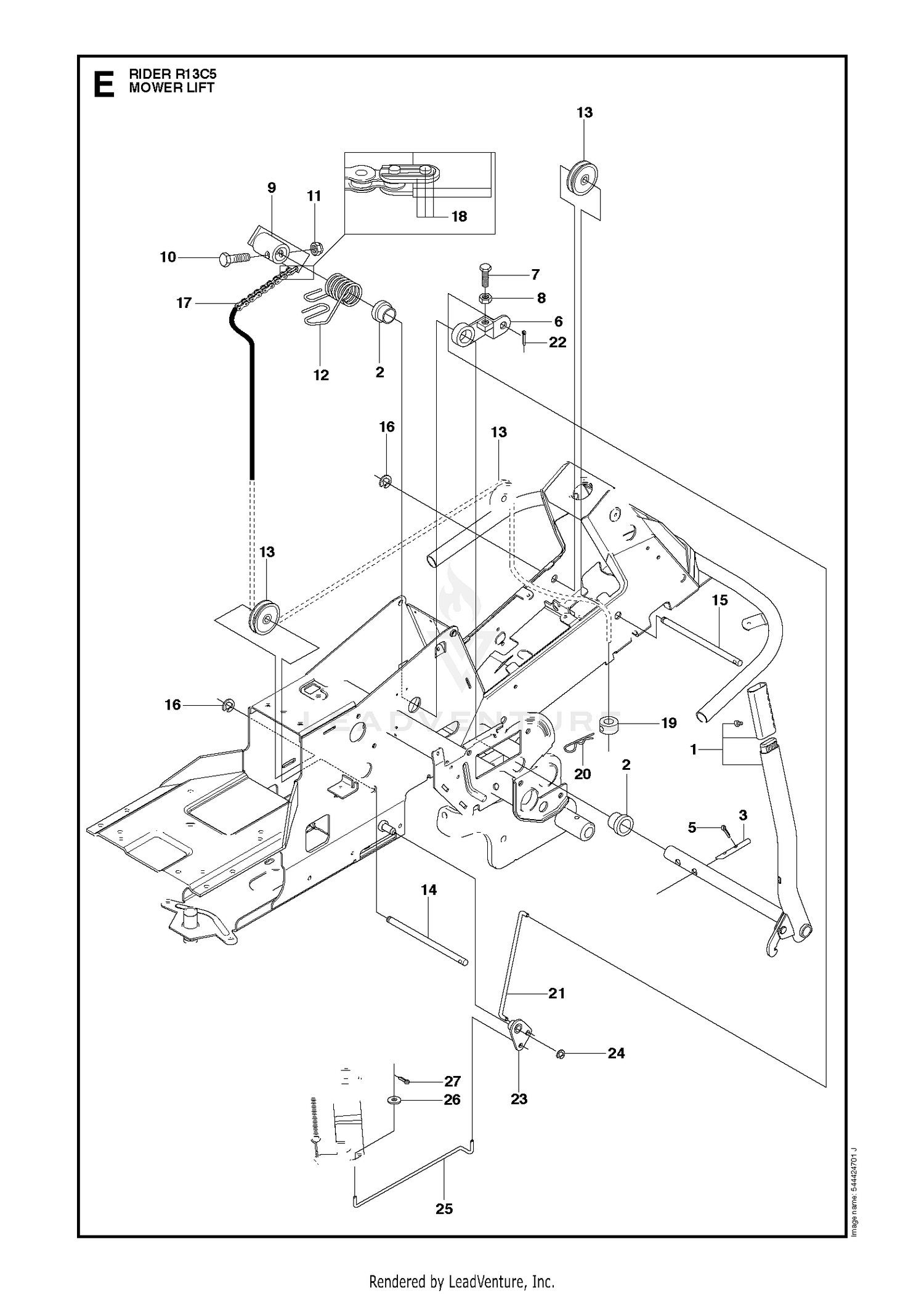

MOWER LIFT / DECK LIFT
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-1467 | TUBE-HYD Price: $109.05 |
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 130-1648 | TUBE ASM Price: $95.44 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 119-1470 | TUBE-HYD Price: $82.35 |
| 3 | 525406601 | PIN Price: $7.99 |
| 4 | 119-1471 | TUBE-HYD Price: $84.23 |
| 5 | 119-1472 | TUBE-HYD Price: $130.17 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 119-1473 | TUBE-HYD Price: $120.64 |
| 7 | 56-7973 | CLAMP-TUBE Price: $15.56 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 115-1794 | SCREW-HHF Price: $1.73 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 9 | 544433601 | LIFTING ARM Price: $22.99 |
| 10 | 340-70 | NUT-LOCK Price: $2.10 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 340-166 | FITTING-TEE, HYD Price: $47.31 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 105-3992-03 | BRACKET-BULKHEAD Price: $45.94 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 3234-17 | SCREW-HHF Price: $0.72 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 3234-11 | SCREW-HHF Price: $1.23 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 105-3990-0P | BRACKET-TUBE SUPPORT This part replaces 105-3990-03. Price: $15.80 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 119-3924 | HOSE ASM Price: $105.69 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 130-1672 | HOSE ASM Price: $79.26 |
| 19 | 544934201 | Price: Call Us |
| 20 | 119-8632 | HOSE ASM-HYD Price: $81.72 |
| 20 | 506966601 | RETAINER Price: $3.99 |
| 21 | 119-1433 | HOSE ASM Price: $100.46 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 105-9238 | HOSE-HYD Price: $104.92 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 544378601 | LINK Price: $7.99 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 721618301 | Split Pin Price: $1.99 |
