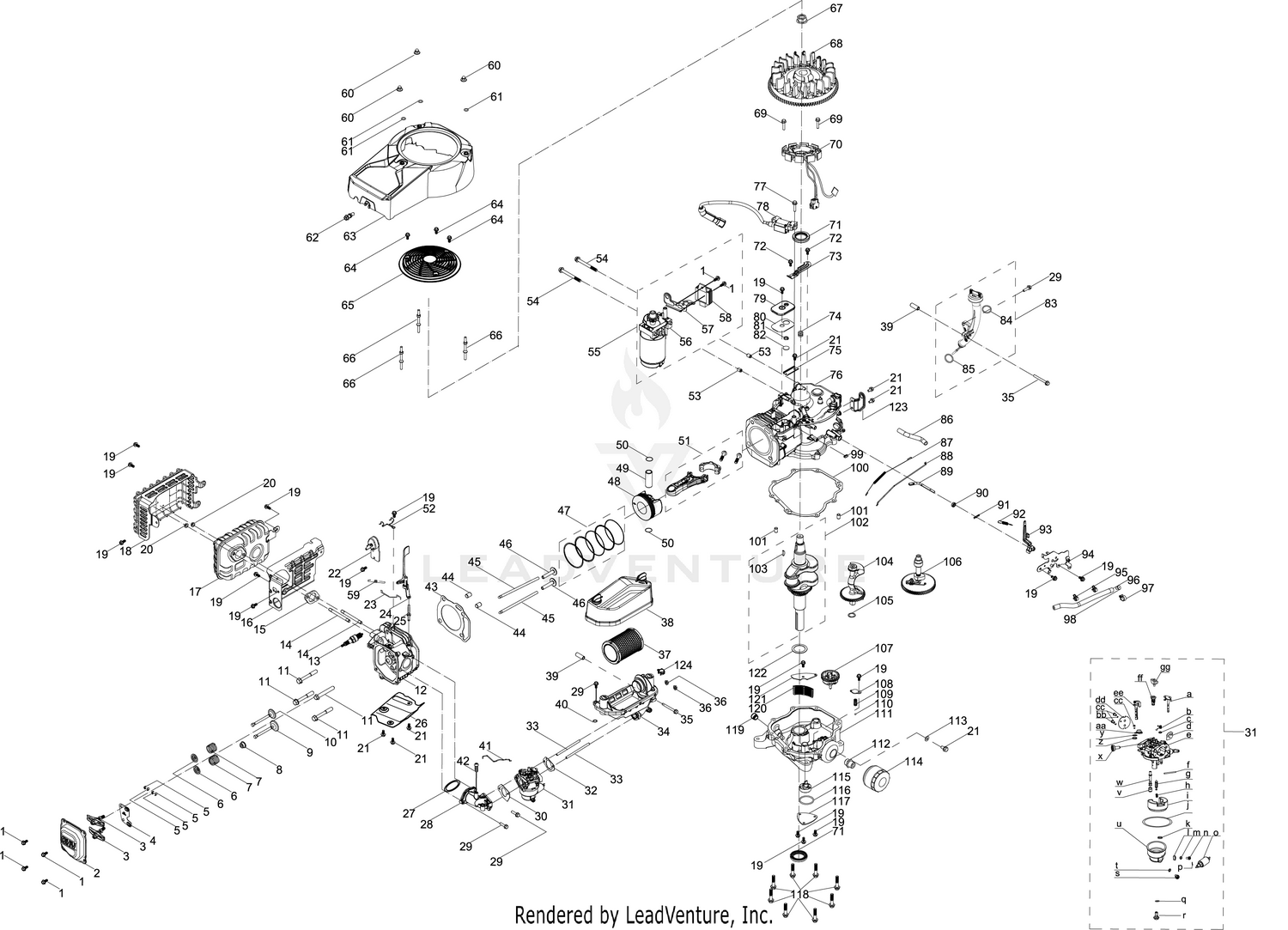

7T84JHA General Assembly
Parts (156)
| Ref | Part Number | Description |
|---|---|---|
| a | 951-16207 | CHOKE SHAFT Price: $8.00 |
| aa | None | Throttle Shaft Sleeve |
| b | 951-16208 | CHOKE RETURN SPRING Price: $6.88 |
| bb | 736-04638A | LOCK WASHER Price: $2.88 |
| c | None | Washer |
| cc | None | Screw, M3×5 |
| d | None | Choke Plate |
| dd | None | Throttle Plate |
| e | None | Carburetor Body |
| ee | 751-16213 | Throttle Shaft Price: Call Us |
| f | 711-06036 | HINGE FLOAT PIN Price: $0.60 |
| ff | None | Idle Jet |
| g | 751P14036A | NEEDLE VALVE Price: $5.16 |
| gg | None | Idle Jet Rivet |
| h | 732P05251A | NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| i | 731P09131 | CARBURETOR FLOAT Price: $2.89 |
| j | 951-11970 | FUEL BOWL GASKET Price: $5.95 |
| k | 721P04699 | SEAL Price: $1.92 |
| l | None | Idle Mixture Screw |
| m | 736-04629 | WASHER Price: $3.56 |
| n | None | Screw, M5×8 |
| o | 951-14972 | CARBURETOR SOLENOID VALVE ASM Price: $40.38 |
| p | 736-05077 | WASHER 12x8.2x.8 Price: $1.78 |
| q | 951-12772 | SEAT/FUEL BOWL BOLT O-RING Price: $3.63 |
| r | 710-06198 | FUEL BOWL BOLT Price: $1.92 |
| s | None | Drain Bolt |
| t | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| u | 751P16210 | FUEL BOWL Price: $5.97 |
| v | None | Main Jet |
| w | None | Nozzle Tube |
| x | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| y | 736P05037 | FIBER WASHER Price: $0.12 |
| z | None | Gasket, Throttle Shaft |
| 1 | 751-20029 | BOLT M6x16 Price: $2.45 |
| 2 | 951-15654 | VALVE COVER Price: $13.13 |
| 3 | 951-15655 | ROCKER ARM ASSEMBLY Price: $10.52 |
| 4 | 951-15656 | ROCKER ARM BASE Price: $5.25 |
| 5 | 951-14912A | VALVE CAP This part replaces 951-14912. Price: $3.03 |
| 6 | 951-14911A | VALVE SPRING SEAT Price: $4.64 |
| 7 | 951-12078 | VALVE SPRING Price: $3.49 |
| 8 | 951-11964A | INTAKE VALVE SEAL Price: $9.96 |
| 9 | 951-15923 | INTAKE VALVE Price: $13.79 |
| 10 | 951-15924 | EXHAUST VALVE Price: $24.13 |
| 11 | 710-09934 | BOLT M10x1.25x70 Price: $2.83 |
| 12 | 951-15657 | CYLINDER HEAD Price: $105.37 |
| 13 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 14 | 710-06615 | STUD - M8 x 102 Price: $5.35 |
| 15 | 951-15658 | EXHAUST GASKET Price: $6.66 |
| 16 | 951-15659 | ENGINE SHROUD Price: $18.44 |
| 17 | 951-15660 | MUFFLER Price: $78.84 |
| 18 | 951-15661 | MUFFLER GUARD Price: $27.75 |
| 19 | 710-09774 | BOLT M6x14 Price: $2.45 |
| 20 | 751-15427 | NUT M8 Price: $3.64 |
| 21 | BOLT | M6x12 Bolt, M6×12 Price: Call Us BOLT M6x12 |
| 22 | 751P21548 | THERMAL SWITCH This part replaces 751-21548. Price: $18.01 |
| 23 | 951-15708 | THERMAL LEVER Price: $5.08 |
| 24 | 951-15709 | AIRVANE CHOKE Price: $8.76 |
| 25 | 951-14734A | PIVOT VANE STUD Price: $4.52 |
| 26 | 951-15710 | ENGINE SHROUD Price: $7.23 |
| 27 | 951-15711 | O-RING 36 x 2.5 Price: $4.91 |
| 28 | 951-15712A | INTAKE MANIFOLD Price: $12.30 |
| 29 | 710-09816 | BOLT M6x22 Price: $2.45 |
| 30 | 951-14947 | INTAKE GASKET Price: $7.16 |
| 31 | 951-05545 | CARBURETOR ASSEMBLY HY-7T84JU Price: $171.23 |
| 32 | 921-04745 | AIR FLTER GASKET Price: $6.13 |
| 33 | 710-09954 | STUD M6x92 Price: $2.63 |
| 34 | 951-15713 | AIR FILTER BASE ASSEMBLY Price: $22.83 |
| 35 | 710-10759 | BOLT M6x55 Price: $2.45 |
| 36 | 751-20110 | NUT M6 Price: $2.45 |
| 37 | 937-05129A | AIR FILTER W/PREFILTER Price: $20.50 |
| 38 | 951-05557 | AIR FILTER COVER ASSEMBLY Price: $19.11 |
| 39 | 951-15714 | BUSHING - 11X6X30 Price: $4.19 |
| 40 | 721-04974 | CARB FUEL DRAIN GASKET Price: $0.70 |
| 41 | 951-15715 | CHOKE LEVER Price: $4.19 |
| 42 | 710-09955 | SELF TAPPING SCREW 4.8-0.7x16 Price: $2.45 |
| 43 | 951-15716 | CYLINDER HEAD GASKET Price: $12.27 |
| 44 | None | PIN, 12x16 |
| 45 | 951-15717 | PUSH ROD - INDIVIDUAL Price: $7.02 |
| 46 | 951-11962A | TAPPET Price: $5.88 |
| 47 | 951-05548 | PISTON RING SET Price: $26.31 |
| 48 | 951-15718 | PISTON Price: $52.70 |
| 49 | 911-06415 | PISTON PIN Price: $8.96 |
| 50 | 951-11953A | PISTON PIN SNAP RING Price: $3.42 |
| 51 | 951-15775 | CONNECTING ROD ASSEMBLY Price: $35.11 |
| 52 | 951-15720 | WIRE ROD Price: $4.19 |
| 53 | 915-05026 | DOWEL PIN Price: $4.40 |
| 54 | 710-09994 | HEX FLANGE BOLT M8x80 Price: $2.45 |
| 56 | 951-05549A | ELECTRIC STARTER Price: $333.70 |
| 57 | 951-15721A | HOOK Price: $4.34 |
| 58 | 925-06299 | REGULATOR Price: $35.01 |
| 59 | 951-16206 | IDLE SPRING Price: $5.15 |
| 60 | 712-04276A | ACORN NUT M6-1 This part replaces 712-04276. Price: $5.38 |
| 61 | 736-05109 | WASHER Price: $5.34 |
| 62 | 710-09935 | BOLT HOOK Price: $2.45 |
| 63 | 951-15724 | ENGINE BLOWER HOUSING Price: $29.83 |
| 64 | 710-06449 | BOLT M5 x 18 Price: $3.56 |
| 65 | 951-15722 | ENGINE SHROUD Price: $9.78 |
| 66 | 710-06628 | STUD - M6 x 83 Price: $5.35 |
| 67 | 912-05102A | FLANGE NUT M20-1.5 Price: $5.95 |
| 68 | 951-15725 | FLYWHEEL ASSEMBLY Price: $219.52 |
| 69 | 710-10176 | BOLT M5x28 Price: $2.63 |
| 70 | 951-15726 | ALTERNATOR Price: $86.04 |
| 71 | 937-05134 | OIL SEAL - 35X52X7 Price: $7.02 |
| 72 | 710-09956 | HEX FLANGE BOLT M5x10 Price: $2.63 |
| 73 | 951-15727 | WIRE PLATE Price: $4.57 |
| 74 | 750-05314 | BUSHING Price: $3.53 |
| 75 | 951-14922 | BREATHER SCREEN Price: $4.31 |
| 76 | 951-15728 | CRANKCASE Price: $298.41 |
| 77 | 751-20113 | BOLT M6x28 Price: $2.45 |
| 78 | 994-00136A | IGNITION COIL Price: $68.49 |
| 79 | 951-15729 | BREATHER COVER Price: $8.76 |
| 80 | 951-15730 | BREATHER COVER GASKET Price: $7.02 |
| 81 | 732-04718A | BREATHER VALVE SPRING Price: $3.30 |
| 82 | 951-11614 | BREATHER VALVE Price: $3.53 |
| 83 | 751P18066 | DIPSTICK Price: $7.94 |
| 84 | 921-04739 | O-RING Price: $4.31 |
| 85 | 921-04946 | O-RING Price: $3.50 |
| 86 | 951-15732A | BREATHER HOSE Price: $15.78 |
| 87 | 951-15733 | THROTTLE DAMPENING SPRING Price: $4.02 |
| 88 | 951-15734 | THROTTLE LINKAGE Price: $5.78 |
| 89 | 951-15735 | GOVERNOR GEAR SHAFT Price: $5.08 |
| 90 | 951-11902A | OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 91 | 714-04078 | COTTER PIN Price: $3.66 |
| 92 | 951-15738 | GOVERNOR SPRING Price: $8.76 |
| 93 | 951-15739 | GOVERNOR ARM ASSEMBLY Price: $6.34 |
| 94 | 951-15740 | CONTROL BRACKET ASSEMBLY Price: $12.96 |
| 95 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 96 | 751P22157 | FUEL HOSE 6.3x12.5x270 Price: $12.55 |
| 97 | 723-04071A | FUEL LINE SUPPORT CLAMP This part replaces 723-04071. Price: $2.77 |
| 98 | 951-14091 | PLUG Price: $4.09 |
| 99 | 951-15741 | CLIP Price: $3.50 |
| 100 | 951-15742 | CRANKCASE GASKET Price: $15.78 |
| 101 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
| 102 | 951-15743 | CRANKSHAFT ASSEMBLY Price: $228.73 |
| 103 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 104 | 951-15744 | BALANCE SHAFT ASSEMBLY Price: $57.16 |
| 105 | 936-05112 | WASHER 17.2 x 26 x 1 Price: $4.40 |
| 106 | 951-15745 | CAMSHAFT ASSEMBLY Price: $50.92 |
| 107 | 951-15746 | GOVERNOR GEAR Price: $17.52 |
| 108 | 951-14895 | PRESSURE RELEASE COVER Price: $4.69 |
| 109 | 932-05290 | PRESSURE RELEASE SPRING Price: $4.40 |
| 110 | 951-15588 | OIL PUMP STEEL BALL Price: $3.50 |
| 111 | 951-15747 | CRANKCASE COVER Price: $158.05 |
| 112 | 751P20788 | OIL FILTER ADAPTER Price: $2.63 |
| 113 | 951-15748 | WASHER - 6.2X1.5X13 Price: $2.98 |
| 114 | 951-12690 | ENGINE OIL FILTER Price: $15.89 |
| 115 | 951-05247 | OIL PUMP ASSEMBLY Price: $51.44 |
| 116 | 921-04742 | GASKET Price: $6.13 |
| 117 | 951-14896 | OIL SEPARATOR Price: $4.69 |
| 118 | 710-05306 | BOLT M8 x 40 Price: $3.56 |
| 119 | 751P20888A | DRAIN PLUG This part replaces 751-20888. Price: $2.98 |
| 120 | 937-05069 | BREATHER FILTER SCREEN Price: $4.20 |
| 121 | 951-15749 | OIL SCREEN PLATE Price: $4.34 |
| 122 | 951-15750 | WASHER - 35.4X1X52 Price: $3.50 |
| 123 | 751P17972A | LIFT HOOK Price: $2.45 |
| 124 | 751P17987 | CLIP Price: $0.77 |
