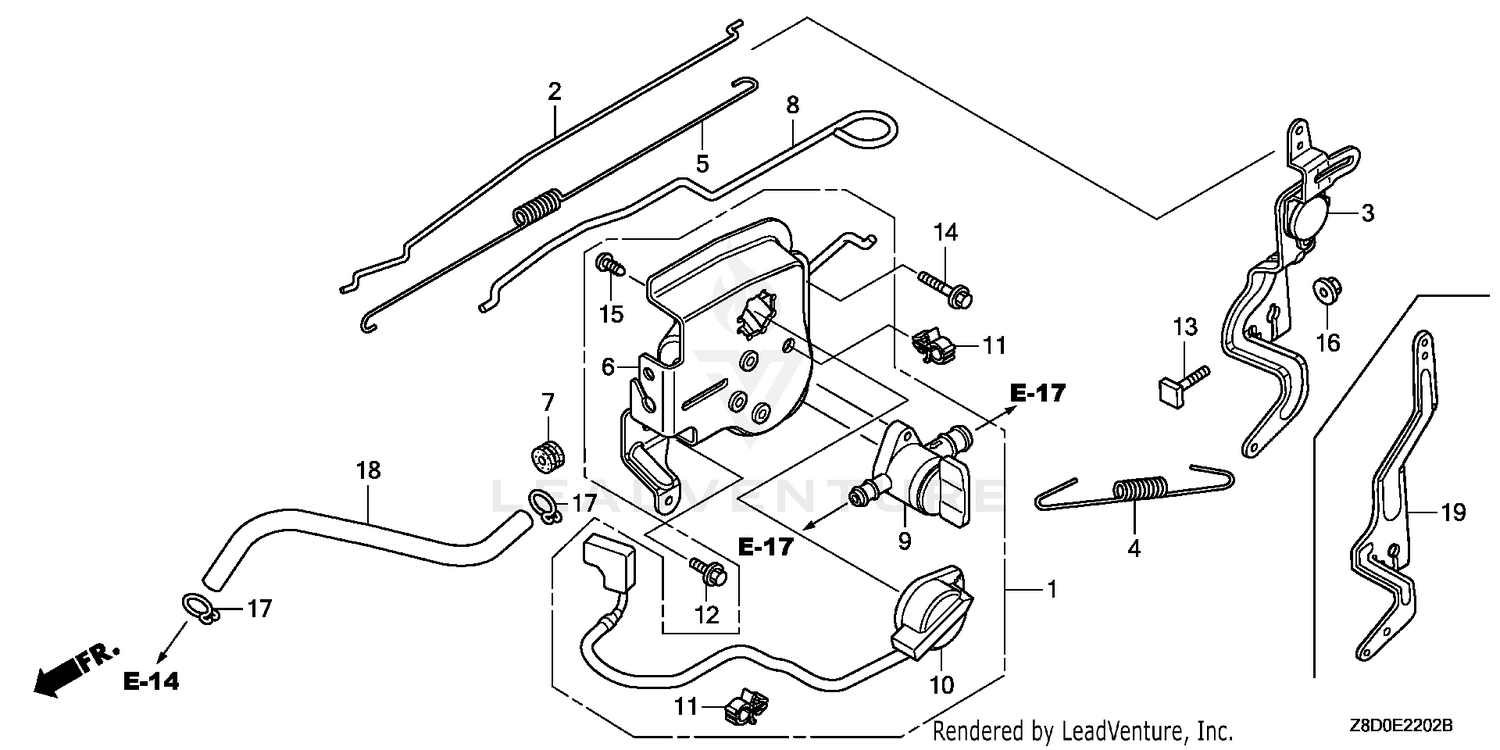

| Ref | Part Number | Description |
|---|
| 2 |
16555-Z0L-801 |
SEE PART DETAILS - PRI; ROD, GOVERNOR Price: $0.72 |
| 4 |
16561-Z8B-V30 |
SPRING, GOVERNOR Price: $1.00 |
| 5 |
16562-ZM0-000 |
SPRING, THROTTLE RETURN Price: $3.36 |
| 6 |
16581-Z8D-000 |
BASE, CONTROL Price: $40.70 |
| 7 |
16613-893-000 |
SEE PART DETAILS - PRI; GROMMET, CHOKE ROD Price: $3.84 |
| 8 |
16674-Z8D-800 |
ROD, CHOKE Price: $1.58 |
| 9 |
16950-Z0Y-003 |
PETCOCK ASSY. Price: $11.72 |
| 10 |
35120-Z8B-913 |
SWITCH ASSY., ENGINE STOP Price: $16.34 |
| 11 |
51125-Z0L-003 |
HOLDER, WIRE (FASTEX) Price: $8.84 |
| 12 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 13 |
90015-ZE5-010 |
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671). Price: $3.16 |
| 14 |
90017-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076). Price: $3.36 |
| 15 |
93913-25220 |
SCREW, TAPPING (5X12) (PO) Price: $0.62 |
| 16 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
