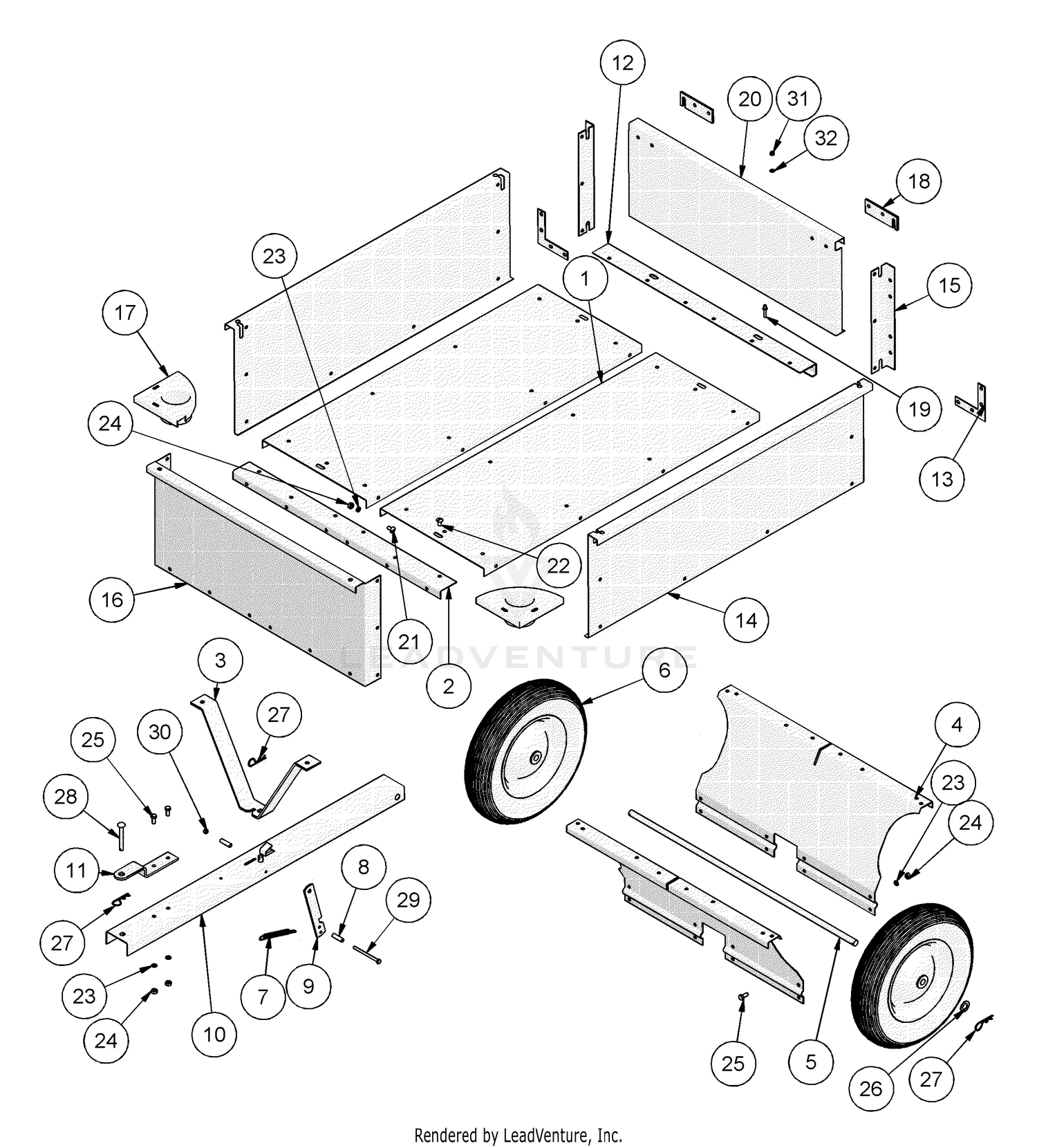

| Ref | Part Number | Description |
|---|
| 1 |
234A1 |
BOTTOM PANEL Price: Call Us |
| 1 |
94-1896 |
HOSE - AIR CLEANNER Price: $52.78 |
| 2 |
234A2 |
FRONT CROSS BRACE Price: Call Us |
| 2 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 3 |
234A3 |
TONGUE SUPPORT Price: Call Us |
| 3 |
83-9150 |
DECAL-FLUID, STARTING Price: $20.09 |
| 4 |
234A4 |
WHEEL AXLE SUPPORT Price: Call Us |
| 4 |
48-4220 |
DISCONTINUED Price: Call Us |
| 5 |
234A5 |
WHEEL AXLE Price: Call Us |
| 5 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 6 |
234A6 |
WHEEL/TIRE ASSEMBLY Price: Call Us |
| 6 |
63-7380 |
RESERVE TANK W/ENG Price: $114.51 |
| 7 |
234A7 |
LATCH SPRING Price: Call Us |
| 7 |
71-1520 |
RESERVOIR CAP Price: $21.69 |
| 8 |
234A8 |
LATCH SPACER Price: Call Us |
| 8 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 9 |
110-6186 |
HOSE-FUEL This part replaces 75-2850. Price: $15.70 |
| 9 |
234A9 |
TONGUE LATCH Price: Call Us |
| 10 |
234A10 |
HITCH TONGUE Price: Call Us |
| 10 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 11 |
234A11 |
HITCH PIN BRACKET Price: Call Us |
| 11 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 12 |
234A12 |
REAR CROSS BRACE Price: Call Us |
| 12 |
75-6680-01 |
BAR - WEIGHT This part replaces 75-6680. Price: $338.72 |
| 13 |
234A13 |
REAR CORNER BRACKET Price: Call Us |
| 13 |
62-5550 |
DECAL Price: $9.32 |
| 14 |
234A14 |
SIDE PANEL Price: Call Us |
| 14 |
32128-33 |
NUT-HF Price: $0.25 |
| 15 |
234A15 |
REAR CORNER BRACE Price: Call Us |
| 15 |
322-4 |
SCREW-HH Price: $0.35 |
| 16 |
234A16 |
FRONT PANEL Price: Call Us |
| 17 |
40057 |
FRONT CORNER BRACE Price: Call Us |
| 17 |
75-1370 |
CABLE-BATTERY, POSITIVE Price: $74.84 |
| 18 |
234A18 |
TAILGATE LATCH Price: Call Us |
| 18 |
28-1280 |
DISCONTINUED Price: Call Us |
| 19 |
234A19 |
TAILGATE PIN Price: Call Us |
| 19 |
323-9 |
SCREW-HH Price: $1.29 |
| 20 |
234A20 |
TAILGATE Price: Call Us |
| 20 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 21 |
234B1 |
M8 X 16 TRUSS HEAD BOLT Price: Call Us |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 22 |
234B2 |
M8 X 20 TRUSS HEAD BOLT Price: Call Us |
| 23 |
75-4250-03 |
DISCONTINUED This part replaces 75-4250. Price: Call Us |
| 24 |
321-5 |
SCREW-HH Price: $0.22 |
| 25 |
234B5 |
M8 X 20 HEX BOLT Price: Call Us |
| 25 |
94-4923-03 |
AIR CLEANER BRKT ASM This part replaces 94-4923. Price: $40.25 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 28 |
234B8 |
HITCH PIN Price: Call Us |
| 28 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 29 |
234B9 |
M6 X 90 HEX BOLT Price: Call Us |
| 29 |
32128-20 |
NUT-HF Price: $0.99 |
| 30 |
94-7343 |
BASE-BATTERY This part replaces 66-2330. Price: $118.61 |
| 31 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 32 |
3217-9 |
NUT-HH Price: $0.37 |
