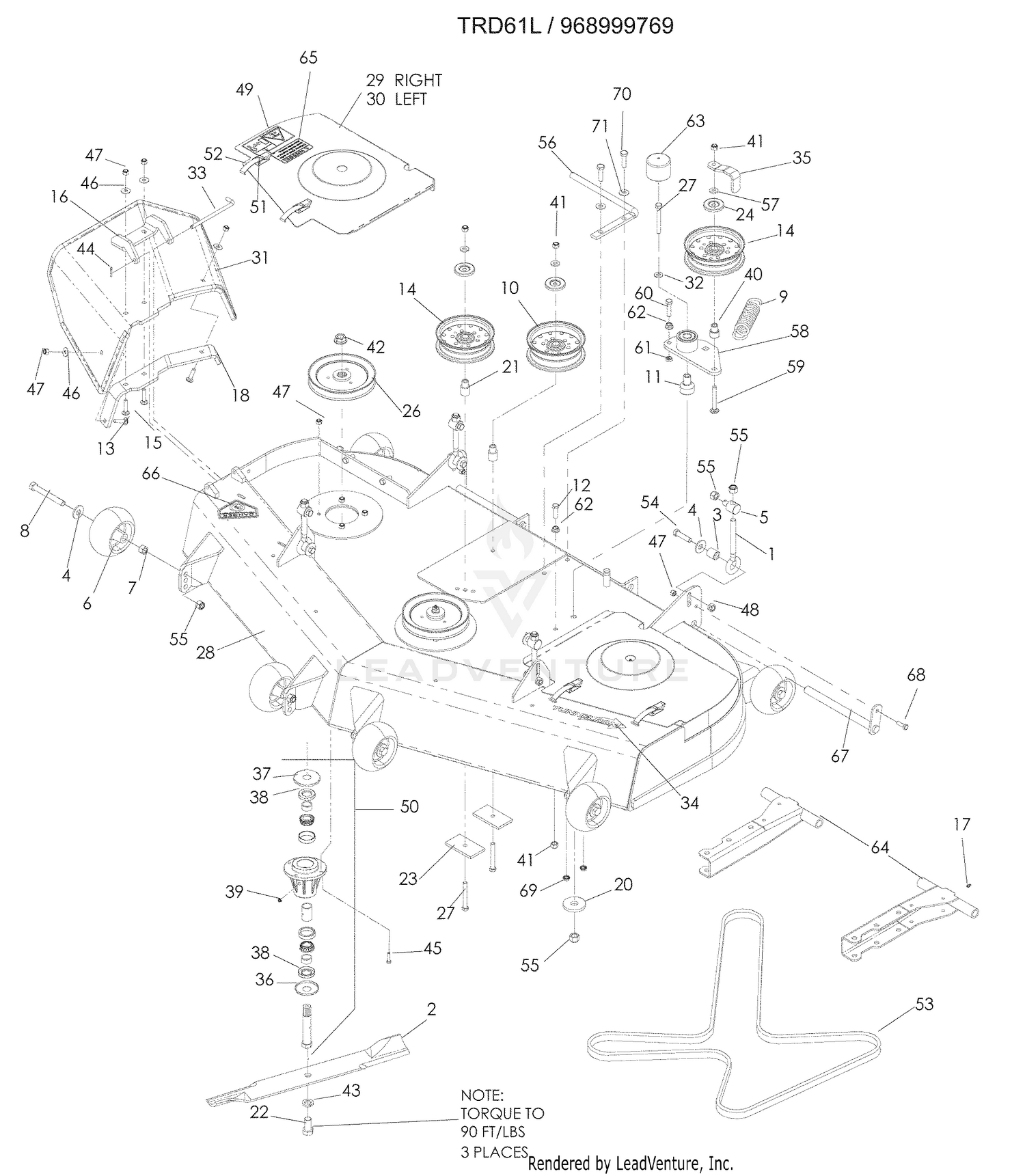

61 Inch Tunnel Deck

61 Inch Tunnel Deck

Parts (75)

RefPart NumberDescription
1 45_015_09 Cylinder Price: Call Us
1 539119227 BOLT, EYE Price: $14.99
2 45_041_17 Gasket-Head Price: Call Us
2 539101733 BLADE OEM 21" (61" DECK) Price: $18.99
3 270889 Washer Price: Call Us
3 539114404 SPACER Price: $6.99
4 270158 Screw Price: Call Us
4 595316401 Washers This part replaces 539109554. Price: $2.99
5 47_445_02 Strap-Lifting Price: Call Us
5 505256501 SWIVEL, DECK HEIGHT ADJ Price: $14.99
6 532133957 WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99
7 539990258 NUT HEX 1/2 Price: $3.99
8 539108366 HCS 1/2-13 X 4 GR 5 ZD Price: $5.99
9 539130690 SPRING Price: $9.99
10 521966601 PULLEY - IDLER, 6IN WIDE Price: $59.99
11 510206301 PIVOT, BEARING Price: $3.99
12 539976941 HCS 3/8C X 1 1/4 GR5 Price: $3.99
13 596671401 Bolts This part replaces 539100472. Price: $3.99
14 539103257 IDLER PULLEY Price: $49.99
15 596030801 Bolts This part replaces 539102933. Price: $3.99
16 539130923 PIVOT BRACKET - RUBBER CHUTE Price: $37.99
17 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
18 539130925 BRACKET, REINF-CHUTE Price: $139.99
19 595316401 Washers This part replaces 539990550. Price: $2.99
20 596437501 Washers This part replaces 539102243. Price: $8.99
21 539103295 IDLER BUSHING Price: $12.99
22 539103299 HCS 5/8F X 1 1/4 Price: $5.99
23 596770301 Washers This part replaces 539103303. Price: $4.99
24 510254502 SHIELD DUST This part replaces 510254501. Price: $3.99
25 539103433 HCS 1/2C X 3 1/4 Price: $5.99
26 539112125 PULLEY, 61 Price: $29.99
27 539101341 HCS 3/8C X 3 Price: $4.99
28 539111378 DECK W/DECALS 61" HUS Price: $5,499.99
29 510202101 SUB ASM, 61 BELT SHIELD RH Price: $119.99
30 510202201 SUB ASM, 61 BELT SHIELD LH Price: $99.99
31 539130779 CHUTE, RUBBER DISCHARGE 52/61" Price: $59.99
32 596581701 Washers This part replaces 539115528. Price: $2.99
33 539131813 PIN, CHUTE PIVOT Price: $6.99
34 539111561 DECAL, TUNNEL RAM 8" Price: $6.99
35 539114981 GUIDE, BELT Price: $19.99
36 539108449 BOTTOM DUST CAP Price: $3.99
37 539108450 TOP DUST CAP Price: $4.99
38 539108754 SHAFT SEAL Price: $6.99
39 539977326 PLUG-VENTED Price: $8.99
40 539130242 BUSHING, IDLER Price: $2.99
41 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
42 598490501 Nuts This part replaces 539130653. Price: $7.99
43 539990333 LOCKWASHER 5/8 Price: $2.99
44 596029501 Pins This part replaces 539990365. Price: $2.99
45 539990627 HCS 5/16C X 1 1/4 Price: $3.99
46 596134901 GSPH This part replaces 539990692. Price: $2.99
47 596583702 Nuts This part replaces 539990717. Price: $2.99
48 539990839 NUT 7/16C CENTERLOCK Price: $2.99
49 539105746 DECAL, EURO SEVERING Price: $2.99
50 966956101 KIT HSG ASM 52/61 This part replaces 539131383. Price: $129.99
51 539110740 RIVET, BLIND, 5/32 DIA Price: $2.99
52 539109660 DRAW LATCH Price: $13.99
53 510201301 BELT, DECK 61 Price: $119.99
54 596438501 Bolts This part replaces 539108073. Price: $2.99
55 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
56 522629801 BELT GUIDE Price: $7.99
57 522023401 WASHER, 3/8 THICK Price: $2.99
58 539130391 ARM-IDLER W/BRG Price: $37.99
59 596581801 Bolts This part replaces 539130235. Price: $2.99
60 539107042 HCS 3/8-16 X 1-1/2 Price: $2.99
61 596433501 NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99
62 596583501 Washers This part replaces 539990613. Price: $2.99
63 539114823 CAP, VINYL Price: $2.99
64 539112517 STRUT WELDMENT, TRD Price: $74.99
65 539113224 DECAL, CAUTION Price: $4.99
66 539913010 DECAL, CPSC Price: $3.99
67 539102619 PIVOT PIN Price: $32.99
68 563990209 HCS 5/16-18 x 1 Price: Call Us
69 539108735 NUT 1/4-20 HEX FLG LK ZD Price: $3.99
70 539990548 HCS 1/4 X 1 Price: $2.99
