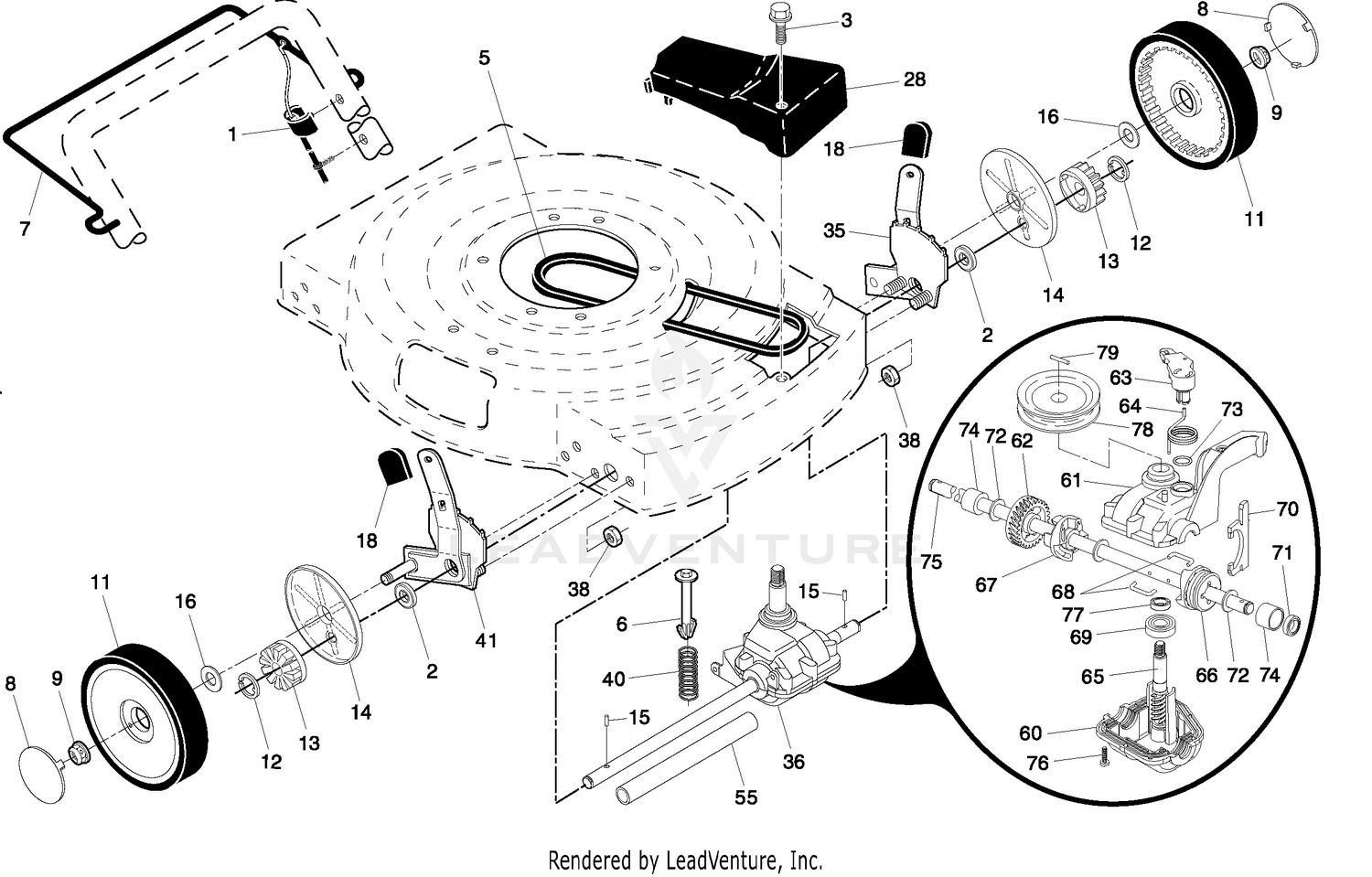

| Ref | Part Number | Description |
|---|
| 1 |
194653 |
Drive Control Cable Assembly Price: Call Us |
| 1 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 2 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 2 |
98-4517 |
AIR CLEANER ASM Price: $272.15 |
| 3 |
143603 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 3 |
93-6692 |
DISCONTINUED Price: Call Us |
| 4 |
48-7430 |
PRECLEANER Price: $50.85 |
| 5 |
146527 |
V-Belt Price: Call Us |
| 5 |
98-4578-03 |
BRACKET-FILTER, FUEL Price: $35.38 |
| 6 |
150495 |
Spring Retainer Price: Call Us |
| 6 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 7 |
110-3257 |
HOSE-FUEL Price: $17.26 |
| 7 |
194185X428 |
Control Bar, Drive Price: Call Us |
| 8 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 8 |
407793X421 |
Hubcap Price: Call Us |
| 9 |
145212 |
Locknut, Hex Price: Call Us |
| 9 |
32128-33 |
NUT-HF Price: $0.25 |
| 10 |
98-4525 |
BRACKET-CLEANER, AIR Price: $52.87 |
| 11 |
180775 |
Wheel & Tire Assembly Price: Call Us |
| 11 |
322-4 |
SCREW-HH Price: $0.35 |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 12 |
145-2823 |
BATTERY - CORROSIVE This part replaces 106-5187. Price: $195.94 |
| 13 |
104-0086 |
CABLE-BATTERY, POSITIVE Price: $78.07 |
| 13 |
403849 |
Pinion Price: Call Us |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 15 |
191017 |
Pawl, Drive Price: Call Us |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 16 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 16 |
67725 |
Washer Price: Call Us |
| 17 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 18 |
701037X421 |
Selector Knob Price: Call Us |
| 18 |
94-7343 |
BASE-BATTERY Price: $118.61 |
| 20 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 21 |
32128-20 |
NUT-HF Price: $0.99 |
| 22 |
98-4576-03 |
BRACKET-RESERVOIR, WATER Price: $43.21 |
| 23 |
321-5 |
SCREW-HH Price: $0.22 |
| 24 |
93-9164 |
INDICATOR-MINI Price: $55.24 |
| 25 |
98-4518-03 |
BRACKET-CLEANER, AIR Price: $75.61 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 27 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 28 |
194398X428 |
Drive Cover Price: Call Us |
| 28 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 29 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 30 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 33 |
98-4509 |
HOSE-CLEANER, AIR Price: $97.00 |
| 34 |
98-9305 |
WATER / FUEL FILTER ASM Price: $116.51 |
| 35 |
353-783 |
FITTING-STR Price: $29.05 |
| 36 |
199206 |
Gear Case Assembly, Complete Price: Call Us |
| 36 |
322-6 |
SCREW-HH Price: $0.45 |
| 37 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 38 |
110-4105 |
HOSE-FUEL Price: $11.71 |
| 38 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 39 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 40 |
137090 |
Spring Price: Call Us |
| 55 |
86012 |
Driveshaft Cover Price: Call Us |
| 62 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 63 |
183500 |
Lever, Clutch Price: Call Us |
| 64 |
183501 |
Spring, Return Price: Call Us |
| 65 |
183502 |
Shaft, Input Price: Call Us |
| 66 |
183503 |
Dog, Movable Price: Call Us |
| 67 |
183504 |
Dog, Fixed Price: Call Us |
| 68 |
183505 |
Wire, Formed Price: Call Us |
| 69 |
183506 |
Bearing, Ball Price: Call Us |
| 70 |
183507 |
Fork, Shift Price: Call Us |
| 71 |
183508 |
Seal, Output Shaft Price: Call Us |
| 72 |
183509 |
Washer Price: Call Us |
| 73 |
183510 |
Seal, Case Price: Call Us |
| 74 |
183511 |
Bushing Price: Call Us |
| 75 |
196561 |
Shaft, Output Price: Call Us |
| 76 |
183513 |
Screw Price: Call Us |
| 77 |
183514 |
Seal, Input Shaft Price: Call Us |
| 78 |
199852 |
Drive Pulley Price: Call Us |
