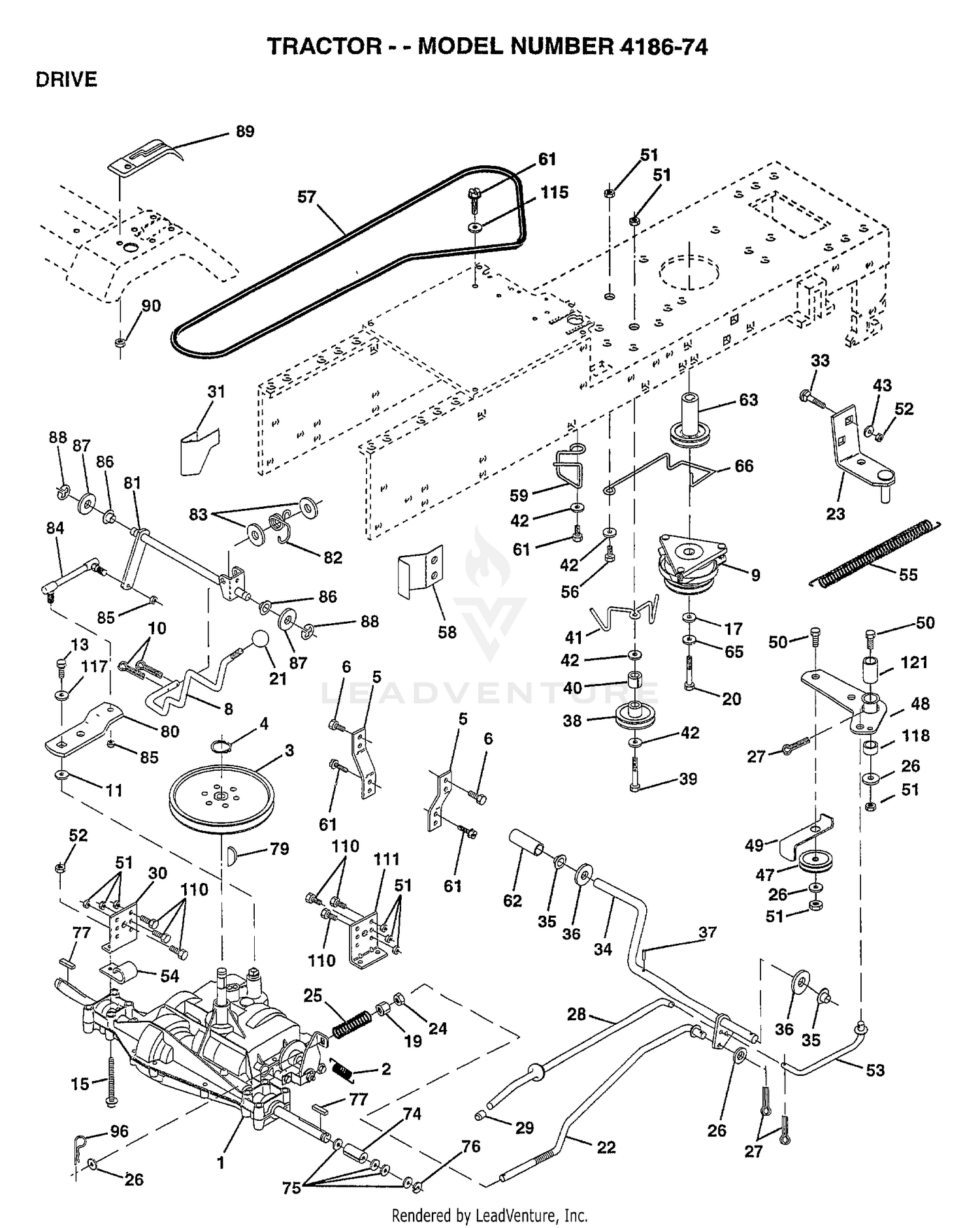

| Ref | Part Number | Description |
|---|
| 1 |
820-016B |
TRANSAXLE Price: Call Us |
| 2 |
110422X |
SUB= 146682 Price: Call Us |
| 3 |
121327X |
PULLEY TRANSAXLE Price: Call Us |
| 4 |
12000004 |
RING Price: Call Us |
| 5 |
123787X |
STRAP TORQUE Price: Call Us |
| 5 |
99-9611 |
HEAD-CYLINDER Price: $1,828.25 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 7 |
99-9612 |
GASKET-HEAD, CYLINDER Price: $238.78 |
| 8 |
141002 |
ROD SHIFT FEND YT Price: Call Us |
| 9 |
137140 |
SUB= 142600 Price: Call Us |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
104-7743 |
TUBE-BREATHER Price: $30.57 |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 13 |
99-9614 |
SCREW-METRIC Price: $20.03 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 17 |
126197X |
WASHER Price: Call Us |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
150280 |
BOLT.7/16-20X4.25 Price: Call Us |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
99-9052 |
CAP-FILL, OIL Price: $26.78 |
| 22 |
145340 |
ROD.ASM.BK.44.MWR Price: Call Us |
| 23 |
137141 |
BRACKET.ASM.MTG Price: Call Us |
| 24 |
105-3817 |
LABEL-FILL, OIL Price: $4.41 |
| 24 |
73350600 |
NUT Price: Call Us |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
123780X |
BRKT TRANS LH Price: Call Us |
| 31 |
123791X |
KEEPER BELT LH Price: Call Us |
| 33 |
72140506 |
BOLT Price: Call Us |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 43 |
19111012 |
WASHER T Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 49A |
99-9054 |
SCREW-HEX Price: $13.82 |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 54 |
99-9055 |
STUD-METRIC Price: $15.91 |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
123796X |
BELT.GRDRV.94.75 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
136906 |
PULLEY ENGINE Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 74 |
108097X |
SPACER HYT Price: Call Us |
| 75 |
123800X |
WASHER Price: Call Us |
| 76 |
12000053 |
E RING HYT Price: Call Us |
| 77 |
9396E |
SQ KEY STD Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 85 |
150360 |
NUT.CNT.LOCK.1/4 Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
139992 |
CONSOLE SHIFTER Price: Call Us |
| 90 |
124346X |
NUT Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 110 |
74760612 |
SUB= 74780612 Price: Call Us |
| 111 |
123776X |
BRKT TRANS RH Price: Call Us |
| 112A |
99-9057 |
STUD-METRIC Price: $9.99 |
| 112B |
99-9058 |
STUD-METRIC Price: $27.41 |
| 112C |
99-9059 |
STUD-METRIC Price: $33.14 |
| 115 |
19132203 |
WASHER GT Price: Call Us |
| 117 |
19091216 |
WASHER PM Price: Call Us |
| 118 |
154774 |
SPACER-BELLCRANK Price: Call Us |
| 127 |
99-9008 |
PLUG-WELCH Price: $8.70 |
| 127B |
99-9060 |
PLUG-WELCH Price: $6.17 |
| 149 |
99-9061 |
NUT-HEX, METRIC Price: $8.87 |
| 355 |
99-9063 |
WASHER-SEAL Price: $28.21 |
| 615 |
99-9067 |
RETAINER Price: $36.03 |
| 830 |
99-9101 |
STUD-ARM, ROCKER Price: $39.61 |
| 871 |
99-9070 |
BUSHING-GUIDE Price: $301.64 |
| 1022 |
99-9073 |
GASKET-COVER, ROCKER Price: $46.78 |
| 1023 |
100-6402 |
COVER-ROCKER Price: $206.93 |
| 1036 |
99-9615 |
EMISSION LABEL KIT Price: $24.77 |
| 1077 |
99-9076 |
BRACKET-LIFTING Price: $12.35 |
