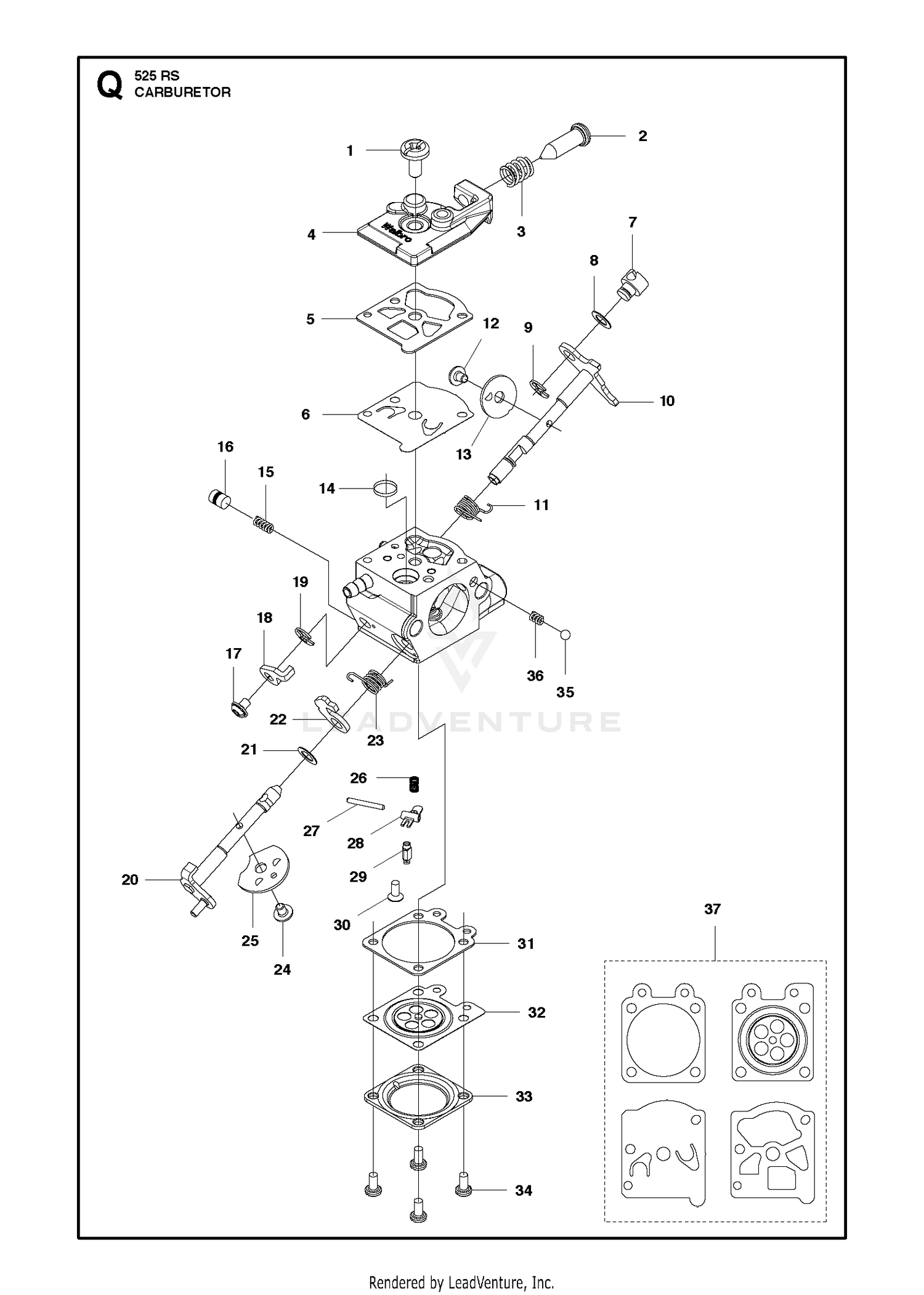

CARBURETOR
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-67 | NUT-LOCK, NI Price: $5.05 |
| 1 | 520976301 | SCREW Price: $2.99 |
| 2 | 3256-44 | WASHER-FLAT Price: $4.21 |
| 2 | 577815701 | SCREW, IDLE Price: $8.99 |
| 3 | 32120-22 | RING-SNAP, INTERNAL Price: $2.29 |
| 3 | 513593201 | SPRING Price: $4.99 |
| 4 | 13-1509 | ARM- TINE ASSEMBLY Price: $784.89 |
| 4 | 579190601 | COVER PUMP Price: $19.99 |
| 5 | 251-312 | BALL BEARING Price: $19.88 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 6 | 504130807 | PUMP DIAPHRAGM This part replaces 502213601. Price: $27.99 |
| 6 | 59-2710 | DISCONTINUED Price: Call Us |
| 7 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 7 | 513400801 | SWIVEL Price: $11.99 |
| 8 | 3274-50 | SCREW-HSH Price: $0.88 |
| 8 | 516524201 | WASHER Price: $2.99 |
| 9 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 10 | 3274-7 | SCREW-HSH Price: $0.91 |
| 10 | 579190701 | SHAFT ASSEMBLY,THROTTLE Price: $22.99 |
| 11 | 577815501 | SPRING Price: $3.99 |
| 11 | 66-4030 | DISCONTINUED Price: Call Us |
| 12 | 520759801 | SCREW Price: $2.99 |
| 12 | 59-2080 | ROLLER CHAIN Price: $264.73 |
| 13 | 287-13 | CONN LINK Price: $29.00 |
| 13 | 520978601 | VALVE Price: $2.99 |
| 14 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 14 | 70-9770 | RAM ROD This part replaces 59-3460. Price: $116.85 |
| 15 | 505057901 | SPRING Price: $2.99 |
| 15 | 59-9600 | DAMPER SPACER Price: $1.97 |
| 16 | 521578301 | PISTON Price: $6.99 |
| 16 | 59-3480 | CUSHION Price: $2.64 |
| 17 | 520759801 | SCREW Price: $2.99 |
| 17 | 66-9010 | SPRING-COMPRESSION Price: $18.60 |
| 18 | 579190801 | LEVER THROTTLE Price: $19.99 |
| 19 | 505056501 | E-RING Price: $3.99 |
| 19 | 59-3450 | RETAINER Price: $33.14 |
| 20 | 32151-75 | RING-RETAINING Price: $2.51 |
| 20 | 579191001 | SHAFT ASSEMBLY,CHOKE Price: $22.99 |
| 21 | 516524201 | WASHER Price: $2.99 |
| 22 | 584901301 | LEVER Price: $19.99 |
| 22 | 66-4040 | SHORT CRANK WA Price: $992.70 |
| 23 | 579191101 | SPRING Price: $5.99 |
| 23 | 59-3410 | DISCONTINUED Price: Call Us |
| 24 | 3218-6 | NUT-JAM Price: $0.61 |
| 24 | 520759801 | SCREW Price: $2.99 |
| 25 | 581154901 | VALVE Price: $8.99 |
| 25 | 59-3520 | BUSHING HARDENED LONG Price: $87.67 |
| 26 | 32152-10 | LOCKNUT Price: $0.81 |
| 26 | 578895401 | SPRING Price: $3.99 |
| 27 | 520977401 | PIN Price: $4.99 |
| 27 | 59-3510 | BUSHING Price: $9.22 |
| 28 | 577807201 | LEVER Price: $1.99 |
| 28 | 61-9160 | STUD Price: $24.91 |
| 29 | 521085401 | VALVE INLET Price: $11.99 |
| 29 | 59-2500-03 | BLOCK This part replaces 59-2500. Price: $35.97 |
| 30 | 577807101 | SCREW Price: $2.99 |
| 30 | 59-3670 | TINE-HOLLOW, 5/8 X 4.75 Price: $2.99 |
| 31 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 31 | 516972101 | GASKET Price: $4.99 |
| 32 | 3217-9 | NUT-HH Price: $0.37 |
| 32 | 577807001 | DIAPHRAGM Price: $14.99 |
| 33 | 3269-3 | RIVET-POP Price: $0.25 |
| 33 | 514189201 | COVER Price: $6.99 |
| 34 | 59-2520 | RH PLATE Price: $18.75 |
| 35 | 514242601 | BALL Price: $5.99 |
| 35 | 66-8980 | RH WEAR PLT ASM Price: $59.16 |
| 36 | 514243301 | CHOKE SPRING Price: $5.99 |
| 36 | 66-8990 | LH WEAR PLT ASM Price: $59.16 |
| 37 | 323-6 | SCREW-HH Price: $0.66 |
| 38 | 323-11 | SCREW-HH Price: $1.08 |
| 39 | 59-4220 | CORE DEFLECTOR Price: $70.49 |
| 40 | 59-2550 | LH PLATE Price: $24.05 |
| 41 | 99-8116 | SHOULDER BOLT ASM W/NUT (KIT) This part replaces 59-3500. Price: $85.57 |
| 42 | 59-3420 | HOUSING *B Price: $86.35 |
| 43 | 302-2 | FITTING-GREASE Price: $1.89 |
| 44 | 59-3470 | CUSHION Price: $2.13 |
| 45 | 21-0640 | WASHER-BELLEVILLE Price: $9.78 |
