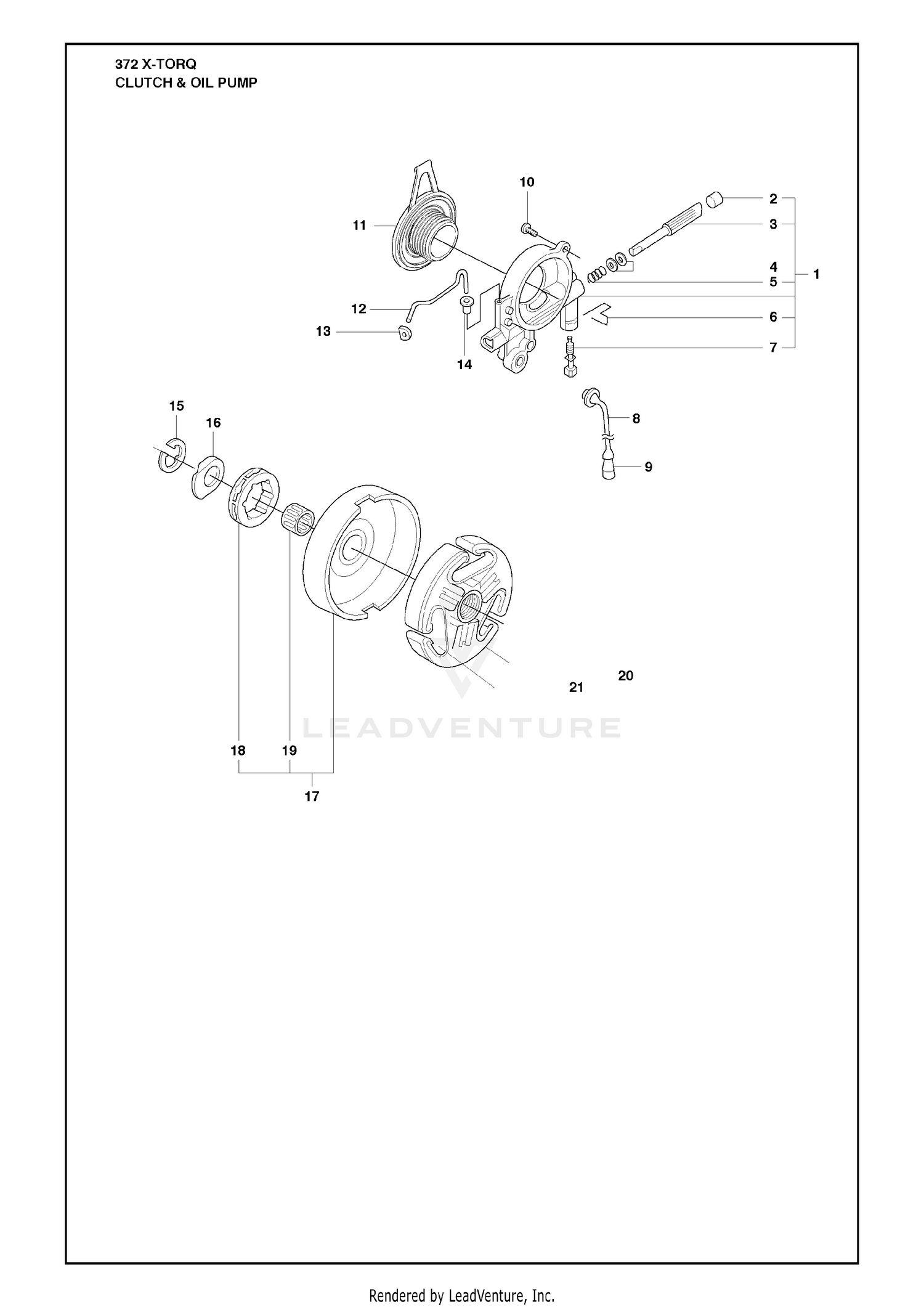

Clutch & Oil Pump
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503521305 | OIL PUMP This part replaces 503521303. Price: $89.99 |
| 2 | 503624901 | PLUG Price: $5.99 |
| 3 | 503521501 | PUMP PISTON Price: $14.99 |
| 4 | 503230004 | WASHER 6.1X9 Price: $3.99 |
| 5 | 501615801 | SPRING Price: $5.99 |
| 6 | 503813001 | SPRING CLIP Price: $3.99 |
| 7 | 503811301 | SCREW Price: $3.99 |
| 8 | 503426701 | OIL HOSE Price: $8.99 |
| 9 | 501544102 | OIL SCREEN Price: $14.99 |
| 10 | 725532955 | SCREW MC6S 5X16 This part replaces 725532956. Price: $6.99 |
| 11 | 582270107 | Pumps This part replaces 537207805. Price: $12.99 |
| 12 | 503774301 | PIPE Price: $9.99 |
| 13 | 503644701 | GROMMET Price: $5.99 |
| 14 | 504300026 | SEAL Price: $3.99 |
| 15 | 503272101 | RETAINING RING Price: $2.99 |
| 16 | 503752401 | WASHER Price: $4.99 |
| 19 | 503432001 | CLUTCH DRUM BEARING Price: $14.99 |
| 20 | 586798401 | CLUTCH ASSY M14X1.25-6H This part replaces 503744401. Price: $49.99 |
