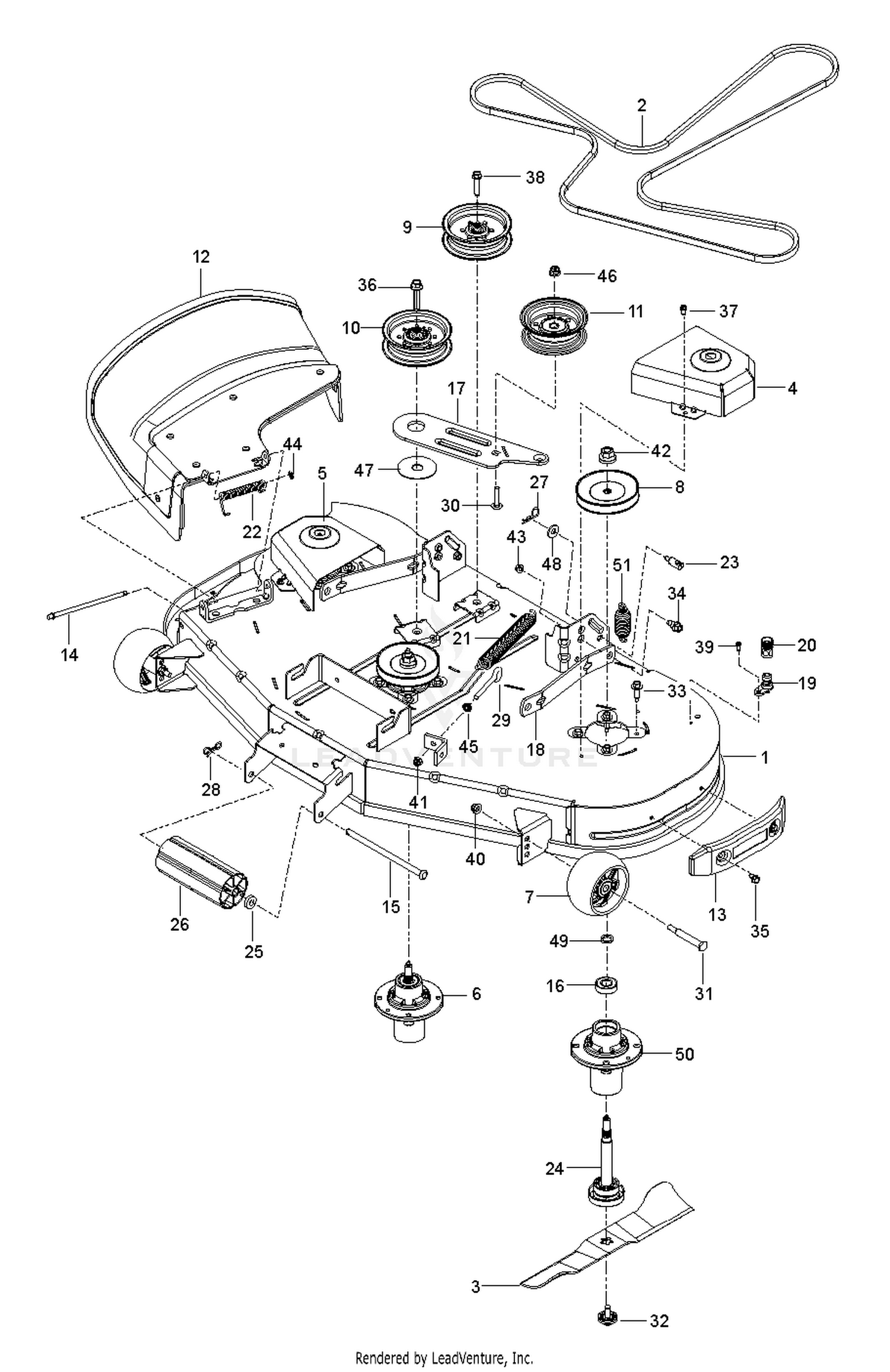

| Ref | Part Number | Description |
|---|
| 1 |
583810104 |
DECK.KIT.SVC.48.CC.RZ.DSHL.ASM This part replaces 583810101. Price: $799.99 |
| 2 |
582558001 |
BELT.DECK Price: $84.99 |
| 3 |
588811002 |
BLADE.BAGGER.RES.CLRCT.48".BLK Price: $29.99 |
| 4 |
588812802 |
COVER.PNT.MANDREL.LH.ZTR.GREY Price: $27.99 |
| 5 |
588812402 |
COVER.PNT.MANDREL.RH.GREY Price: $34.99 |
| 6 |
539131898 |
MANDREL ASM, CAST IRON Price: $69.99 |
| 7 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 8 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC Price: $19.99 |
| 9 |
539113413 |
BELT SHIELD - L.H. ORANGE Price: $64.99 |
| 10 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 11 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 12 |
593649701 |
GSPW Deflectors This part replaces 588980701. Price: $84.99 |
| 13 |
582541103 |
BUMPER 48 CLEARCUT TRIM SIDE A Price: $11.99 |
| 14 |
595297001 |
Rods Price: $4.99 |
| 15 |
594092501 |
Rods Price: $5.99 |
| 16 |
532110485 |
BEARING Price: $11.99 |
| 17 |
529470302 |
IDLER ARM This part replaces 588812202. Price: $6.99 |
| 19 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 20 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 21 |
582504001 |
SPRING.EXTENSION Price: $6.99 |
| 22 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 23 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 24 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 25 |
582360501 |
BUSHING.NOSE.ROLLER Price: $3.99 |
| 26 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 27 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 28 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 29 |
596240801 |
GSPW Bolts Price: $3.99 |
| 30 |
596136201 |
Bolts Price: $3.99 |
| 31 |
596434404 |
Bolts Price: $4.99 |
| 32 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 33 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 34 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 35 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 36 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 37 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 38 |
599972501 |
BOLT This part replaces 596564003. Price: $2.99 |
| 39 |
596637301 |
Screws Price: $2.99 |
| 40 |
521996502 |
GSPW Nuts Price: $2.99 |
| 41 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 42 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 43 |
596135701 |
GSPW Nuts Price: $2.99 |
| 44 |
532110452 |
NUT PUSH M Price: $2.99 |
| 45 |
596039201 |
GSPW Hardware Price: $2.99 |
| 46 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 47 |
532178515 |
WASHER Price: $5.99 |
| 48 |
596320001 |
Washers Price: $2.99 |
| 49 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 50 |
539131898 |
MANDREL ASM, CAST IRON This part replaces 539131767. Price: $69.99 |
| 51 |
596482001 |
Springs Price: $6.99 |
