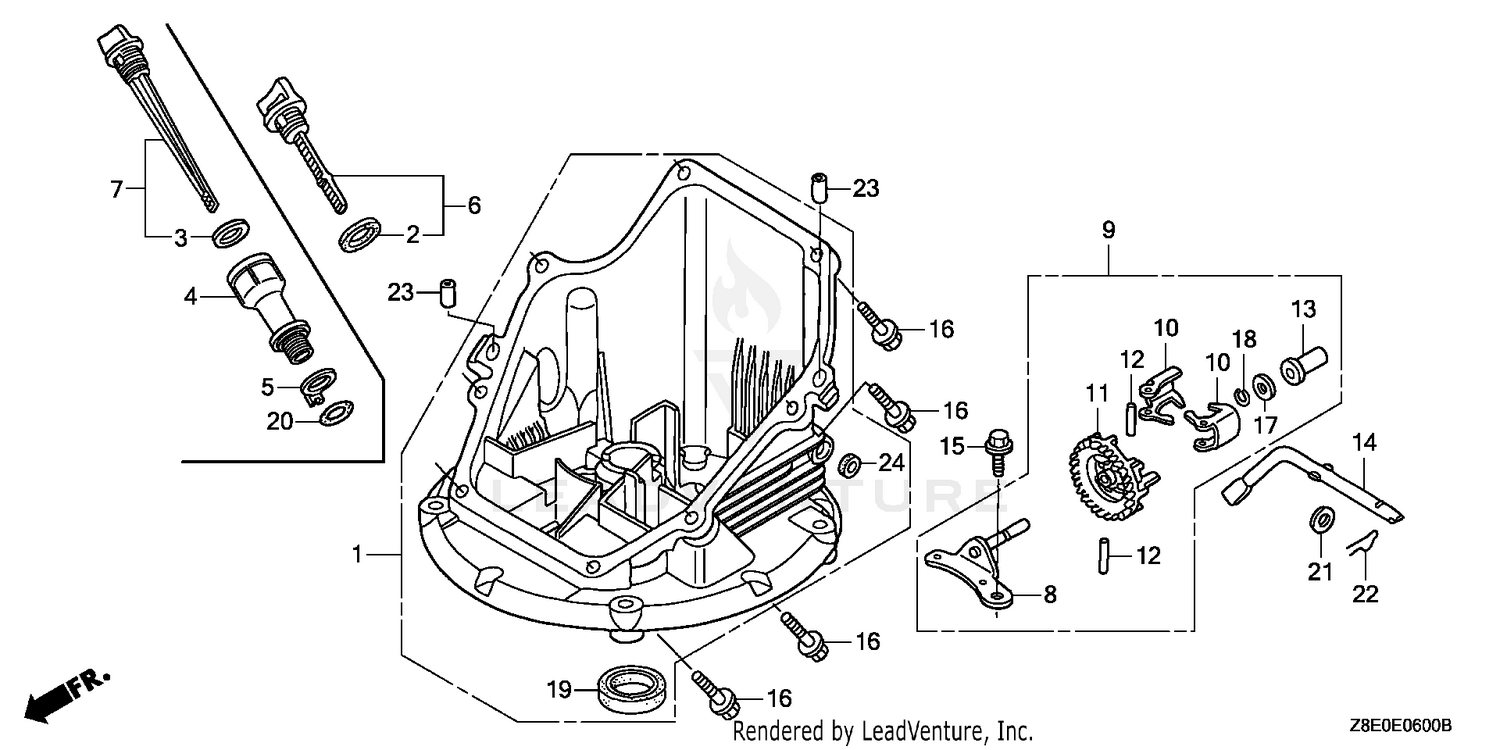

| Ref | Part Number | Description |
|---|
| 1 |
11300-Z2D-V11 |
SEE PART DETAILS - PRI; PAN ASSY., OIL Price: $71.66 |
| 2 |
15625-Z2L-801 |
GASKET, OIL FILLER CAP (NOT AVAILABLE) Price: $2.44 |
| 6 |
15650-Z0L-000 |
GAUGE ASSY., OIL LEVEL Price: $1.30 |
| 8 |
16508-Z8B-013 |
SHAFT, GOVERNOR HOLDER Price: Call Us |
| 9 |
16510-Z8B-010 |
GOVERNOR ASSY. Price: $5.52 |
| 10 |
16511-ZL8-000 |
WEIGHT, GOVERNOR (Honda Code 5580287). Price: $1.74 |
| 11 |
16512-Z8B-300 |
HOLDER, GOVERNOR WEIGHT Price: $5.16 |
| 12 |
16513-ZE1-000 |
PIN, GOVERNOR WEIGHT (Honda Code 1427244). Price: $2.22 |
| 13 |
16531-Z8B-000 |
SLIDER, GOVERNOR Price: $4.06 |
| 14 |
16541-Z8B-000 |
SHAFT, GOVERNOR ARM Price: $0.98 |
| 15 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 16 |
90121-952-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819. Price: $2.82 |
| 17 |
90451-ZE1-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862). Price: $1.98 |
| 18 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 19 |
91202-Z9L-003 |
OIL SEAL (28X41.25X6) This part replaces 91202-ZM0-V31. Price: $8.62 |
| 21 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 22 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
| 23 |
90701-Z8B-000 |
PIN, DOWEL (8X20) Price: $0.26 |
