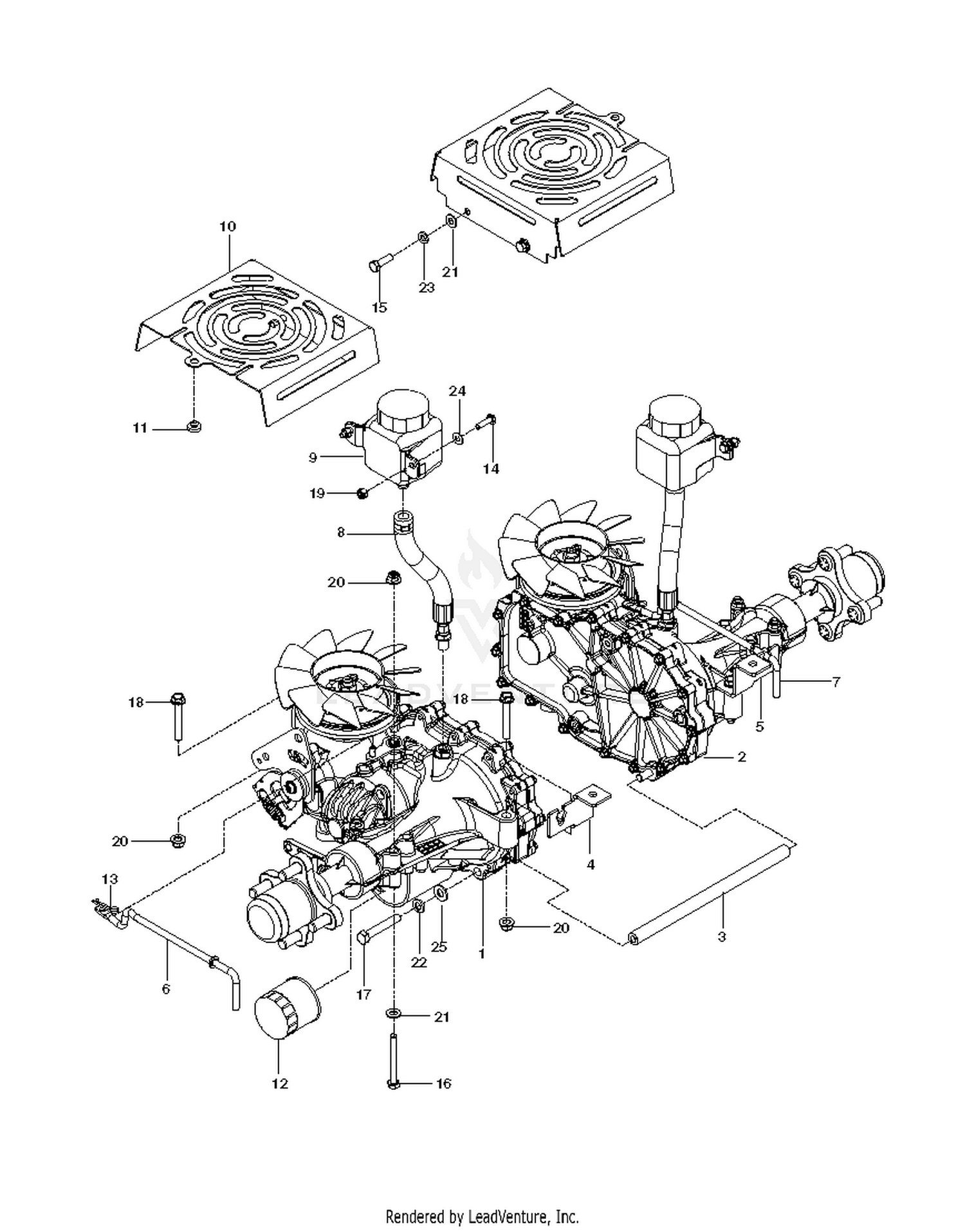

| Ref | Part Number | Description |
|---|
| 1 |
574569101 |
HG_TRANS, ZT-3400, LT Price: $999.99 |
| 2 |
574569102 |
HG_TRANS, ZT-3400, RT Price: $999.99 |
| 3 |
574868502 |
Spacers This part replaces 574868501. Price: $19.99 |
| 4 |
593279002 |
BRACKET TRANS, LT BLACK MS-431 This part replaces 575017102. Price: $4.99 |
| 5 |
593278902 |
BRACKET TRANS, RT BLACK MS-431 This part replaces 575017002. Price: $4.99 |
| 6 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 6 |
596501901 |
Links This part replaces 539131618. Price: $3.99 |
| 7 |
33014-00 |
NUT-HEX Price: $0.25 |
| 7 |
596500701 |
Links This part replaces 539131616. Price: $6.99 |
| 8 |
3272-42 |
PIN-COTTER Price: $0.25 |
| 8 |
574892101 |
HOSE ASSY, EXPANSION Price: $54.99 |
| 9 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 9 |
574811301 |
TANK.EXPANSION.350ML 71328 Price: $54.99 |
| 10 |
33098-00 |
WASHER-FLAT Price: $0.68 |
| 10 |
584994202 |
SHIELD FAN BLACK This part replaces 575778202. Price: $11.99 |
| 11 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 11 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 12 |
539113466 |
HG_FILTER, ZT4800 52114 Price: $32.99 |
| 12 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 13 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 13 |
98-5474 |
TRACTION PEDAL - WELDED Price: Call Us |
| 14 |
596565401 |
Screws This part replaces 539990643. Price: $1.99 |
| 14 |
98-5445 |
ROD END Price: $53.16 |
| 15 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 15 |
98-5466 |
ROD - TRACTION Price: $53.39 |
| 16 |
233-37 |
KNOB Price: $31.99 |
| 16 |
539101721 |
HCS 5/16C X 2-3/4 Price: $3.99 |
| 17 |
596436501 |
Screws This part replaces 539108551. Price: $2.99 |
| 17 |
98-5479 |
PLATE - CPL Price: Call Us |
| 18 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 18 |
98-5481 |
LEVER - BRAKE Price: $107.34 |
| 19 |
54-0960 |
PARK BRAKE SPRING Price: $18.37 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 20 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 21 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 22 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 24 |
596582301 |
Washers This part replaces 539990055. Price: $2.99 |
| 27 |
98-5476 |
LEVER Price: $49.09 |
| 28 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 29 |
256-287 |
BUSHING Price: $1.76 |
