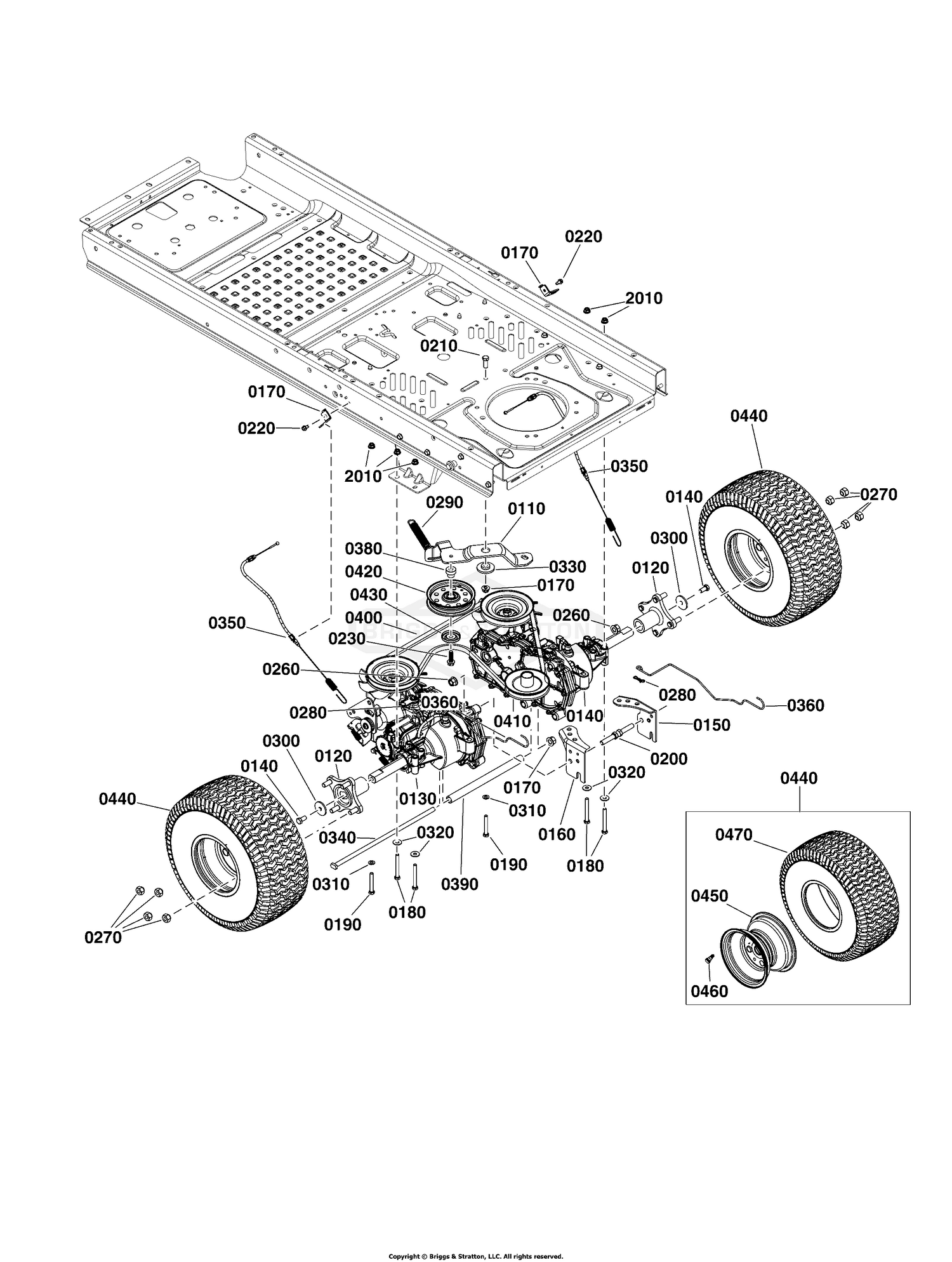

| Ref | Part Number | Description |
|---|
| 0110 |
771133 |
BRACKET, Idler Price: $40.49 |
| 0120 |
771134 |
ASSEMBLY, Wheel Hub Price: $119.99 |
| 0130 |
771135 |
ASSEMBLY, Hydro Transmission (LH) Price: $1,349.99 |
| 0140 |
771136 |
ASSEMBLY, Hydro Transmission (RH) Price: $1,649.99 |
| 0150 |
771137 |
BRACKET, Transmission Mounting (RH) Price: $18.26 |
| 0160 |
771138 |
BRACKET, Transmission Mounting (LH) Price: $18.26 |
| 0170 |
771139 |
BRACKET, Brake Cable Price: $4.69 |
| 0180 |
771140 |
SCREW, 5/16-18 X 2.75, Hex Price: $4.79 |
| 0190 |
771141 |
SCREW, 5/16-18 X 2.25, Hex, GR5 Price: $7.58 |
| 0200 |
771142 |
SCREW, 7/16-20 X 1.75 GR 5 Price: $6.98 |
| 0210 |
771143 |
SCREW, 3/8-16 X 1 GR5 Price: $6.85 |
| 0220 |
703624 |
SCREW, TT, 1/4-20 x 1/2 Price: Call Us |
| 0230 |
771145 |
SCREW, 3/8-16 X1.250 Price: $5.69 |
| 0240 |
771146 |
SCREW, 3/8-16 X .75 GR 5 Price: $10.43 |
| 0260 |
771148 |
NUT, Flange Lock Price: $7.73 |
| 0270 |
771149 |
NUT, 7/16-14, Lug Price: $8.99 |
| 0280 |
771150 |
PIN, 1/4-5/16, Bow Tie Cotter Price: $2.29 |
| 0290 |
771151 |
SPRING, .75 DIA X 5.87 RZT/F, Extension Price: $19.19 |
| 0300 |
771152 |
WASHER, .390X1.500X.134, Flat Price: $9.80 |
| 0310 |
771153 |
WASHER, 5/16, Flat Price: $10.52 |
| 0320 |
771154 |
WASHER, 5/16, Flat Price: $7.37 |
| 0330 |
771155 |
SPACER, Shoulder Price: $11.79 |
| 0340 |
771156 |
ROD, Support Tube Price: $30.91 |
| 0350 |
771157 |
CABLE, Park Prake Price: $37.49 |
| 0360 |
771158 |
ROD, Hydro Bypass Price: $13.99 |
| 0370 |
771578 |
HOOK, Idler Spring Price: $21.49 |
| 0380 |
771159 |
SPACER, Shoulder Price: $6.99 |
| 0390 |
771160 |
TUBE, Support Price: $39.79 |
| 0400 |
771161 |
BELT, A X 67, Transmission Drive Price: $61.41 |
| 0410 |
771162 |
PULLEY, Transmission Drive Price: $50.99 |
| 0420 |
771163 |
PULLEY, 4.25 DIA, Idler Price: $49.99 |
| 0430 |
771164 |
PULLEY CAP, Idler Pulley Price: $8.39 |
| 0440 |
771352 |
ASSEMBLY, Wheel (18 X 8.5-8) Price: $329.99 |
| 0450 |
771353 |
ASSEMBLY, Rear Rim Price: $137.31 |
| 0460 |
771167 |
VALVE, Stem - Tubless Price: $7.01 |
| 0470 |
771354 |
TIRE, 18 X 9.5 X 8 SQ SH Price: $262.60 |
| 1700 |
703333 |
NUT, 3/8-16 Price: $4.26 |
