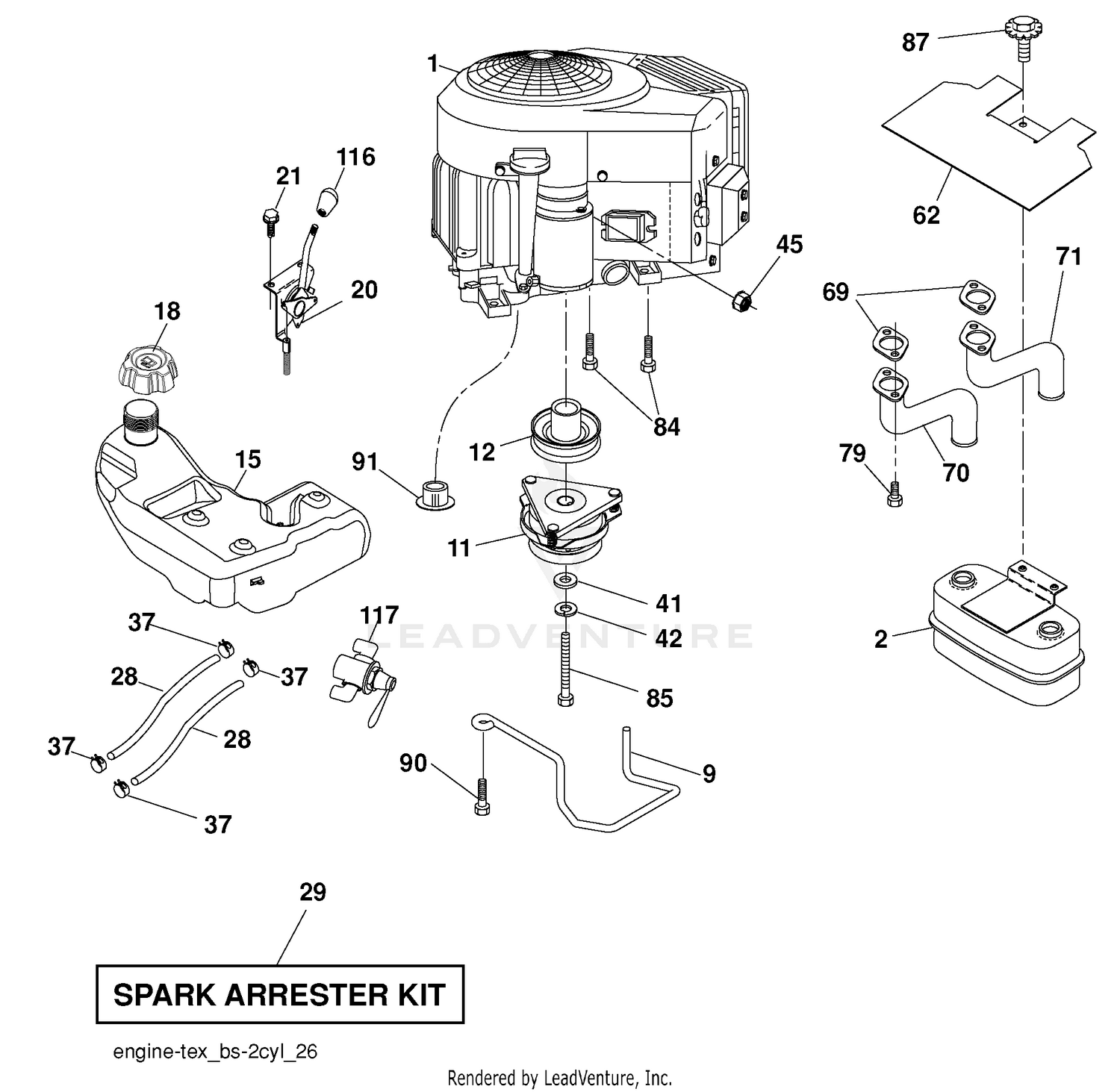

| Ref | Part Number | Description |
|---|
| 1 |
93-5633 |
DISCONTINUED Price: Call Us |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
67-1300 |
DECAL Price: $29.99 |
| 3 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 4 |
33105-020 |
SCREW-HHF Price: $0.54 |
| 5 |
93-5988 |
HUB-PIVOT This part replaces 93-5204. Price: $29.62 |
| 6 |
93-5447 |
NUT-CLINCH Price: $0.95 |
| 7 |
95-0814 |
DECAL-TOWER, STEERING This part replaces 93-5424. Price: $24.40 |
| 8 |
93-5205 |
DISCONTINUED Price: Call Us |
| 9 |
256-132 |
BUSHING-FLANGE Price: $8.20 |
| 9 |
532408667 |
KEEPER BELT ENGINE Price: $9.99 |
| 10 |
9547 |
WASHER-THRUST This part replaces 256-260. Price: $5.69 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
93-5312 |
KNOB Price: $9.21 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 12 |
93-5629 |
TOWER COVER ASM Price: $141.80 |
| 13 |
98-1471 |
WHEEL-STEERING This part replaces 93-5212. Price: $145.99 |
| 14 |
108-9342 |
NUT-HEX This part replaces 93-5590. Price: $3.49 |
| 15 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 15 |
599306202 |
TANK ASSY W/CAP REAR CARB This part replaces 532422948. Price: $249.99 |
| 16 |
93-5429 |
COLLAR-FOAM Price: $36.18 |
| 17 |
93-5439 |
SEAL-STEERING Price: $9.64 |
| 18 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 This part replaces 532430213. Price: $37.99 |
| 19 |
93-5428 |
SHAFT-STEERING Price: $205.06 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 20 |
93-5446 |
CAP-VINYL Price: $1.41 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
93-5309 |
ROD-BRAKE PARKING Price: $18.80 |
| 22 |
93-5262 |
SPRING-EXTENSION Price: $10.21 |
| 23 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 24 |
114-2718 |
PAWL-BRAKE This part replaces 93-5276. Price: $32.10 |
| 25 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 26 |
93-5165 |
VALVE-CONTROL, STEERING Price: $1,040.32 |
| 27 |
283-5 |
PIN-CLEVIS Price: $11.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
93-5989 |
ROD-TILT This part replaces 93-5208. Price: $72.02 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT This part replaces 532424659. Price: $6.99 |
