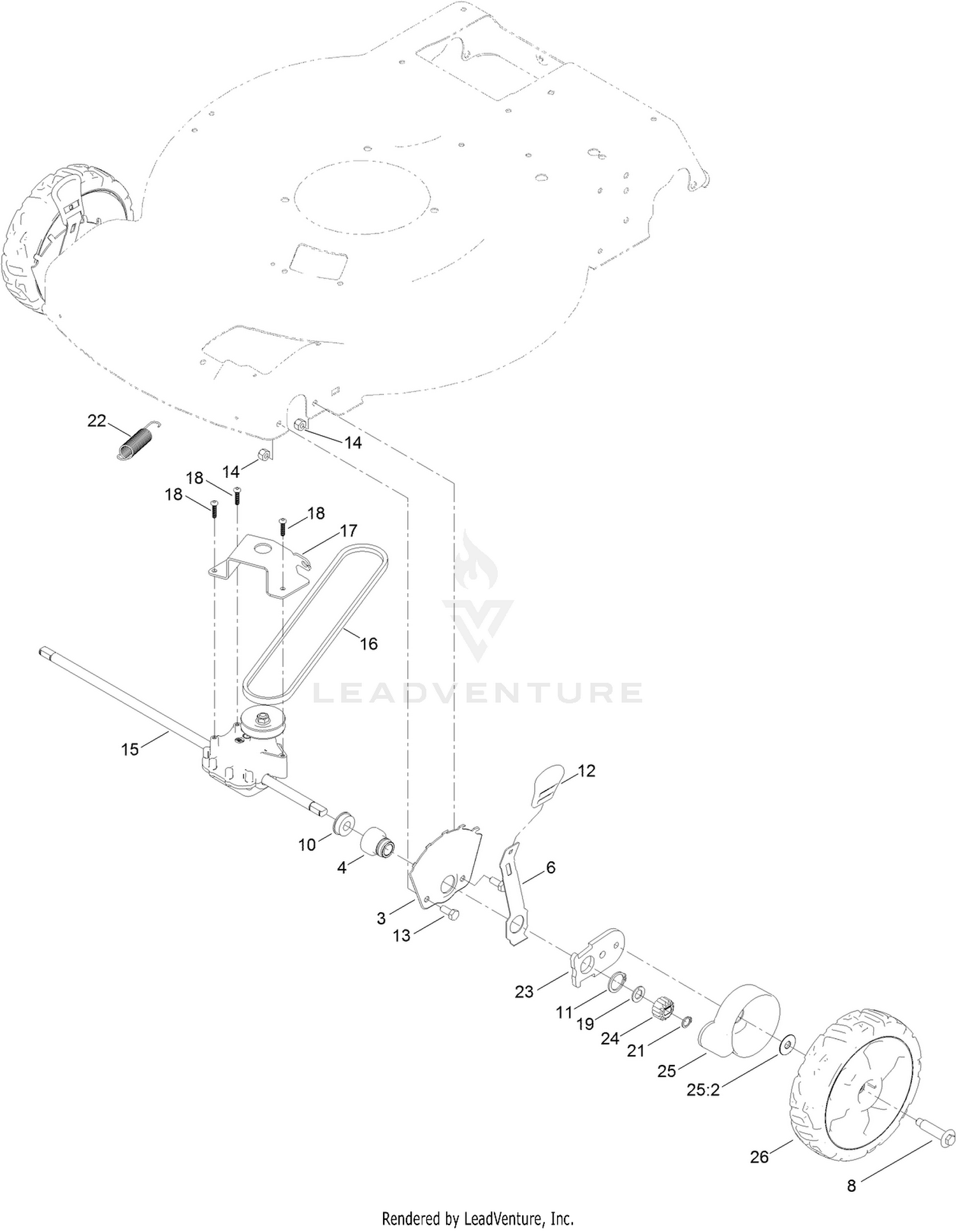

Front Wheel and HOC Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 115-1956-03 | PLATE-HOC, FRONT Price: $6.59 |
| 4 | 131-0836 | RETAINER-BEARING, HOC Price: $9.80 |
| 6 | 105-1809 | ARM-SPRING Price: $7.52 |
| 8 | 614650 | BOLT-SHOULDER Price: $3.28 |
| 10 | 104-8699 | BEARING-BALL Price: $3.28 |
| 11 | 32151-36 | RING-RETAINING Price: $1.73 |
| 12 | 110-0549 | KNOB-HOC Price: $1.08 |
| 13 | 137-3052 | SCREW-HH Price: $0.34 |
| 14 | 119-4038 | NUT-HEX Price: $0.31 |
| 15 | 137-4823 | TRANSMISSION Price: $71.58 |
| 16 | 71-9450 | V-BELT Price: $21.88 |
| 17 | 114-7978-03 | BRACKET-TRANSMISSION Price: $7.20 |
| 18 | 120-9676 | SCREW-PLASTITE Price: $0.34 |
| 19 | 110-7191 | WASHER-THRUST Price: $1.79 |
| 21 | 32151-61 | RING-RETAINING Price: $2.39 |
| 22 | 136-7059 | SPRING-EXTENSION Price: $2.27 |
| 23 | 137-9184 | ARM-PIVOT, FRONT Price: $8.00 |
| 24 | 131-5399 | GEAR-PINION, 15T Price: $2.67 |
| 25 | 136-9057 | GEAR COVER ASM Price: $3.79 |
