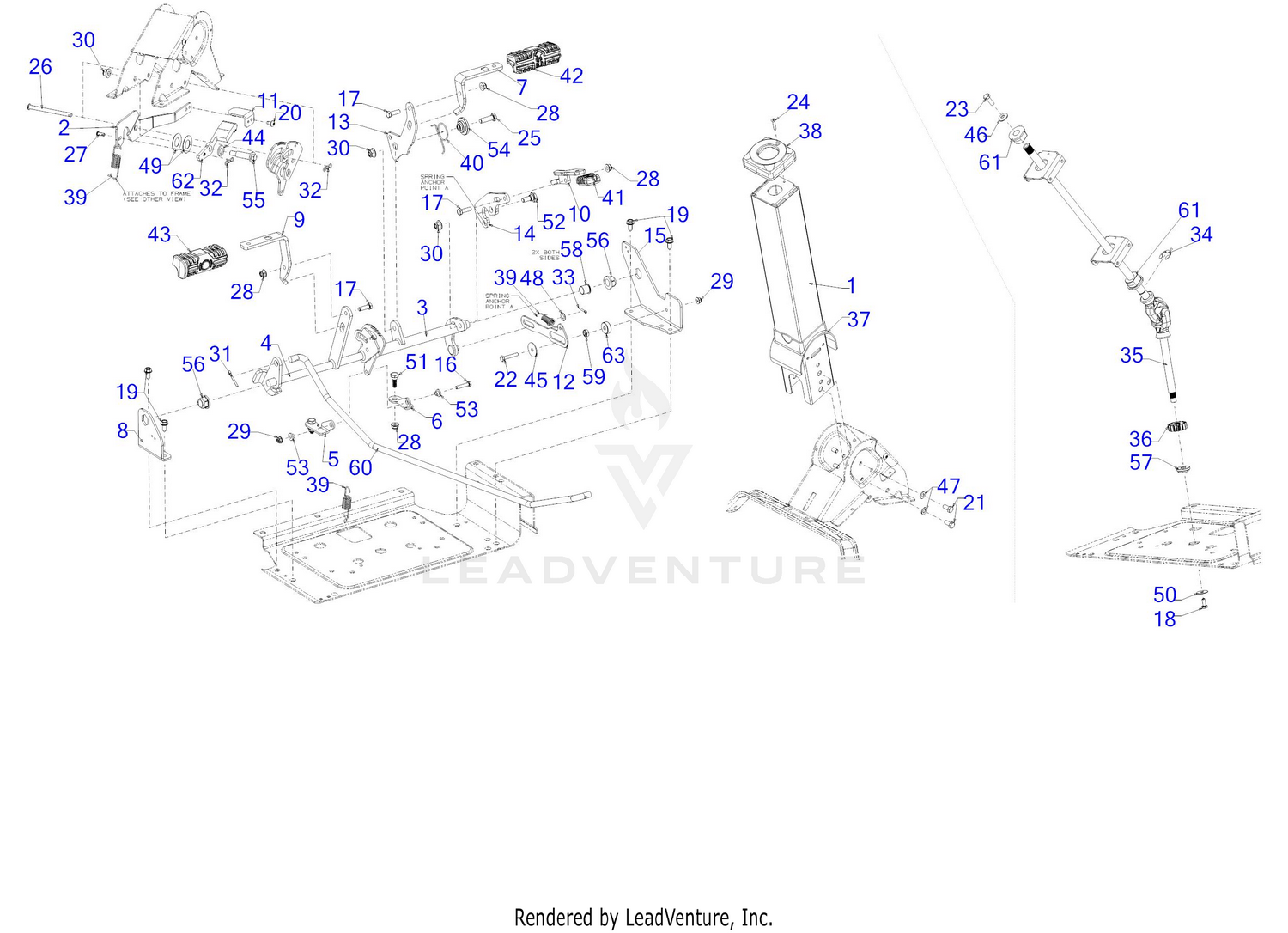

| Ref | Part Number | Description |
|---|
| 3 |
947-04270C |
FORWARD PEDAL SHAFT ASSEMBLY Price: $72.06 |
| 12 |
903-09837A |
NEUTRAL RETURN LINK Price: $11.07 |
| 13 |
903-10338A |
FORWARD PEDAL BRACKET This part replaces 703-10338A. Price: $15.04 |
| 14 |
703-10350 |
REVERSE PEDAL PIVOT PLATE Price: $21.40 |
| 16 |
710-0106 |
HEX SCREW 1/4-20 x 1.25 Price: $3.66 |
| 17 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 18 |
710-0433 |
SCREW 1/4-20 x .62 SPEC GR5 Price: $4.02 |
| 19 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 20 |
710-05070A |
SCREW 1/4-20 x .5 Price: $6.01 |
| 21 |
710-0538 |
SCREW 5/16-18 x .62 GR5 Price: $4.02 |
| 22 |
710-0606 |
SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 23 |
710-1245B |
SCREW 5/16-24 x .875 GR5 Price: $7.21 |
| 24 |
710-1331 |
SCREW #10-16 x 1.25 Price: $3.91 |
| 25 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 26 |
711-05068A |
CLEVIS PIN 5/16 x 4.135 Price: $6.64 |
| 27 |
711-05670 |
CLEVIS PIN .224 x .625 Price: $4.69 |
| 28 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 29 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 30 |
712-04065 |
NUT Price: $3.68 |
| 31 |
714-0162 |
COTTER PIN-5/32 DIA Price: $4.29 |
| 32 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 33 |
914-0474 |
COTTER PIN Price: $4.08 |
| 34 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 35 |
717-04954 |
STEERING SHAFT ASSEMBLY Price: $223.58 |
| 36 |
717-04960 |
STEERING GEAR 14T Price: $11.71 |
| 37 |
731-07358C |
LOWER STEERING COLUMN COVER This part replaces 731-07358B. Price: $19.71 |
| 38 |
731-11491A |
STEERING COLUMN COVER Price: $12.77 |
| 39 |
732-04748 |
EXTENSION SPRING Price: $3.52 |
| 40 |
732-04949 |
TORSION SPRING Price: $4.69 |
| 41 |
735-04117 |
REVERSE PEDAL PAD Price: $5.68 |
| 42 |
735-04118A |
FORWARD PEDAL PAD Price: $12.95 |
| 43 |
735-04136 |
BRAKE PEDAL PAD Price: $13.49 |
| 44 |
936-0192 |
FLAT WASHER .535 x .930 x .090 Price: $3.75 |
| 45 |
736-0211 |
Flat Washer, .285 x 1.25 x .08 This part replaces 936-0211. Price: $5.99 |
| 46 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 47 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 48 |
736-0314 |
Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01 |
| 49 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 50 |
736-3092 |
FLAT WASHER Price: $3.68 |
| 51 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 52 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 53 |
738-04483 |
SHOULDER SPACER Price: $3.53 |
| 54 |
738-04552B |
SHOULDER SPACER 1.50X.38X.38 Price: $6.51 |
| 55 |
738-0929 |
SHOULDER SCREW .496X1.44 3/8-16 Price: $6.99 |
| 56 |
941-0225 |
FLANGE BEARING Price: $6.55 |
| 57 |
741-04543 |
HEX FLANGE BEARING 7/16 Price: $4.83 |
| 58 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 59 |
741-05209 |
BALL BEARING .25 X .625 Price: $9.13 |
| 60 |
747-05654A |
FRONT BRAKE ROD Price: $37.59 |
| 61 |
948-0209 |
FLANGE BEARING Price: $19.32 |
| 62 |
748-04203 |
CRUISE LATCH Price: $12.39 |
